Owners Manual
KM Series Teich-Aire

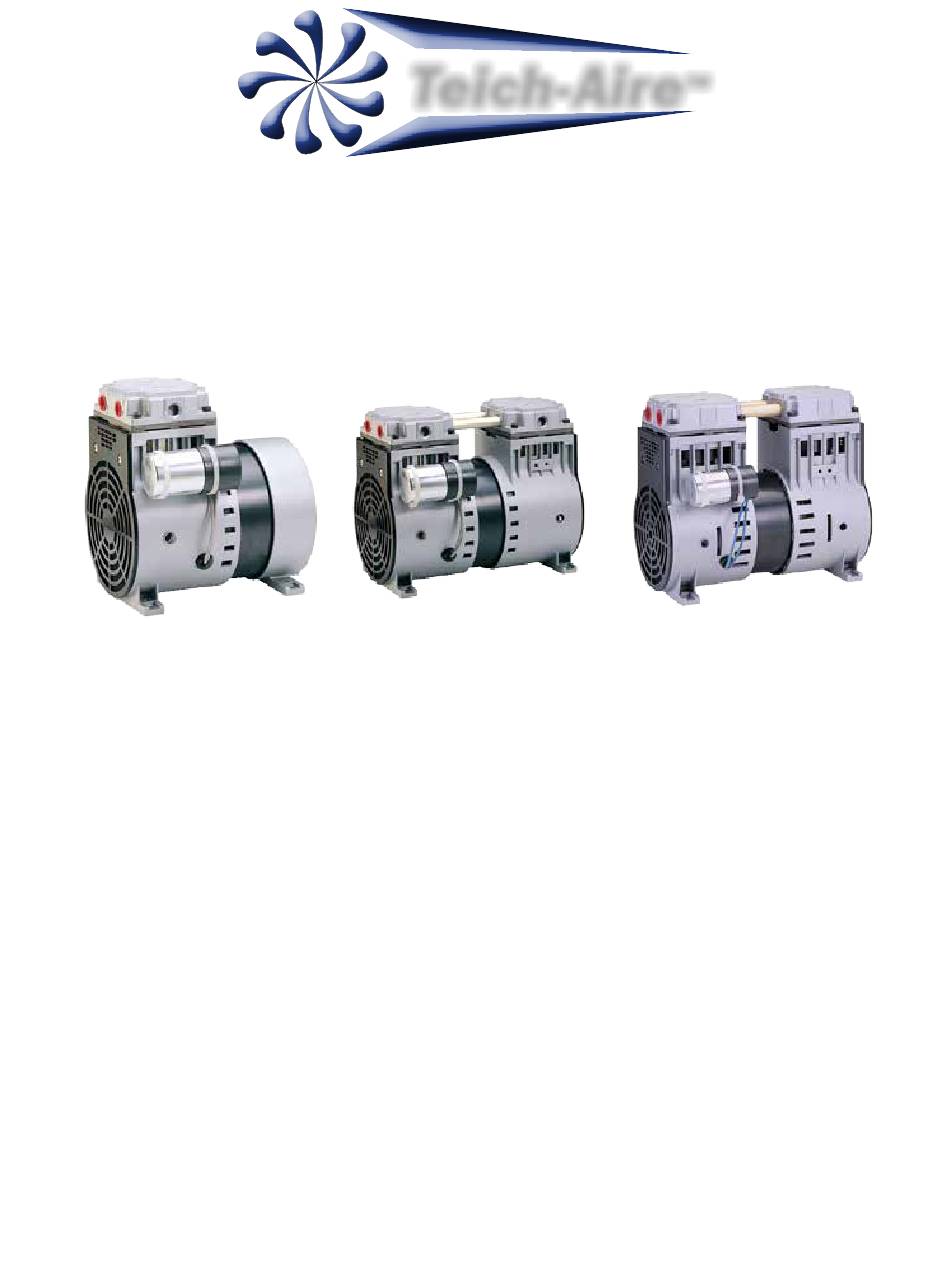

Rocking Piston Oil-less Compressors
Important Product Use Information
Installation Requirements
Plumbing
Electrical
Operation
Maintenance
Troubleshooting
Warranty
Teich-Aire
Contents
Kasco Marine, Inc.
800 Deere Rd.
Prescott, WI 54021
U.S.A.
PH 00+1+715+262+4488
FAX 00+1+715+262+4487
sales@kascomarine.com
www.kascomarine.com
www.teich-aire.com
™
TM
. . . . . .pg2
. . . . . .pg2
. . . . . .pg2
. . . . . .pg3
. . . . . .pg4
. . . . . .pg4
. . . . . .pg5
. . . . . .pg6
Rev. 04/17/13
Advertisement
Table of Contents
Summary of Contents for Teich-Aire KM Series
- Page 1 Teich-Aire ™ Owners Manual KM Series Teich-Aire Rocking Piston Oil-less Compressors Contents Important Product Use Information ..pg2 Installation Requirements ..pg2 Plumbing ..pg2 Electrical ..pg3 Operation .
- Page 2 This is the safety alert symbol. This symbol The pr alerts you to hazards that can kill or hurt you and provid Thank you for purchasing this Teich-Aire compressor. as rain, snow and flooding. others. The safety alert symbol and the words filters It is manufacturered to the highest standards using • Ambient air temperature (temperature readings...
- Page 3 The wiring diagram supplied with the product provides required electrical information. Check that power source is correct to properly operate the dual-voltage KM-60C Electrical motors. KM-60HC pressure Electrical Connection relief valve Electrical Shock Hazard WARNING Disconnect electrical power at the circuit breaker or fuse box before installing this product.
- Page 4 3. R 18-20 Failure to follow these instructions can result in 4. R death, fire or electrical shock. lt or 5. D 6. P Operation OPERATION WARNING WARNING Injury Hazard Product surfaces become very hot during operation, allow product surfaces to cool before handling. Injury Hazard Air stream from product may contain solid or liquid Install proper safety guards as needed.
-
Page 5: Troubleshooting
Troubleshooting High Pump Will not Excess Reason and solution for problem Pressure Pressure Overheat start Noise • • • Filter is dirty. Clean or replace. • • • • Muffler is dirty. Clean or replace. Valves are dirty or valves are bent. Clean • or replace. Relief valve is set too high. - Page 6 Warranty Period: 2 years claim. Kasco® Marine, Inc. warrants this Teich-Aire™ Any expedited shipping method for the return of the compressor to be free from defects in material or unit is at the customer’s expense. Kasco Marine will workmanship under normal use and service.
- Page 8 Teich-Aire ™ Kasco Marine, Inc. 800 Deere Rd. Prescott, WI 54021 U.S.A. Phone 00+1+715+262+4488 Fax 00+1+715+262+4487 www.teich-aire.com www.kascomarine.com sales@kascomarine.com 771068...
