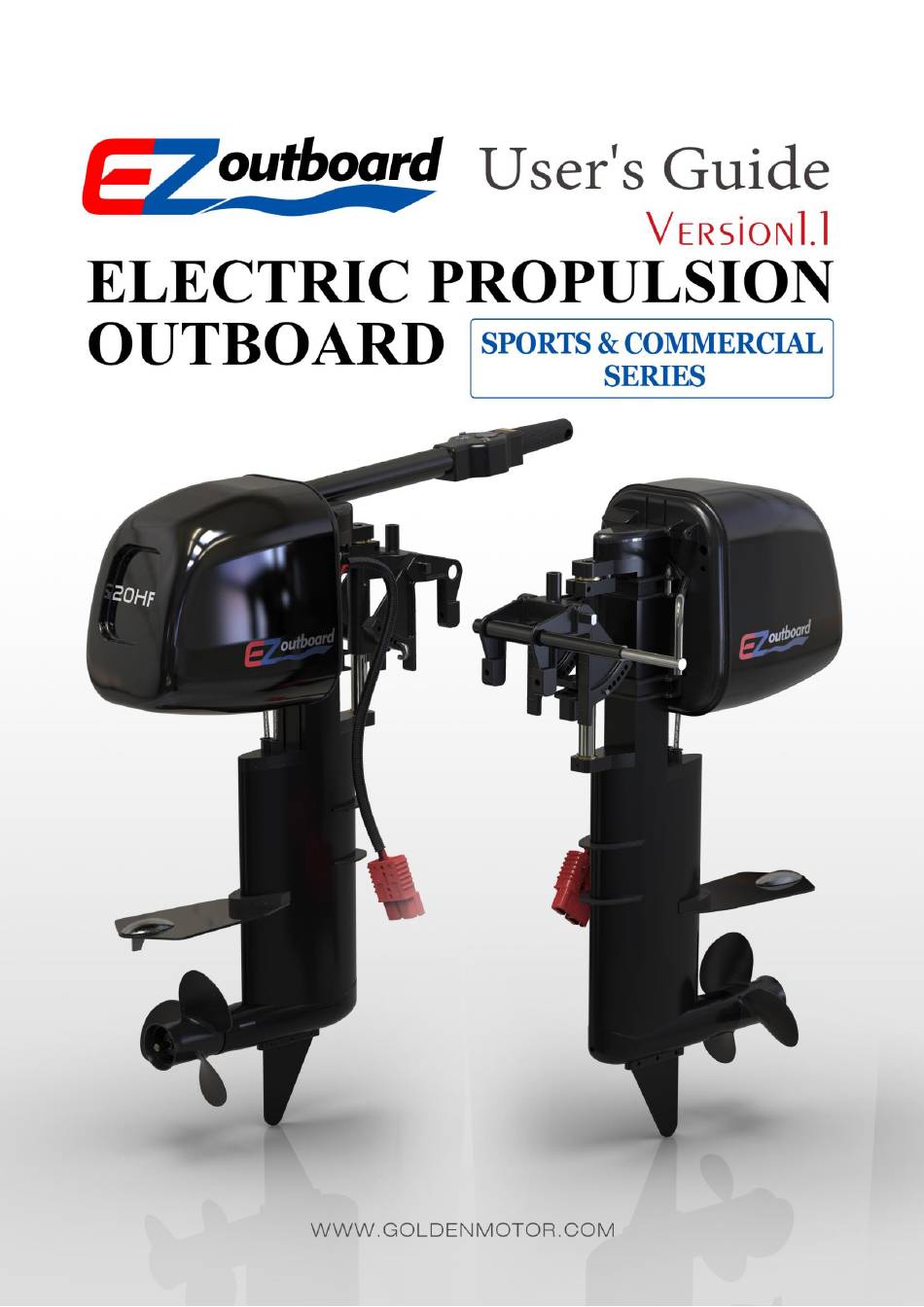

ezOutboard EZ-S06R User Manual

Electric propulsion outboard
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EZ-S06R and is the answer not in the manual?

Questions and answers

Related Manuals for ezOutboard EZ-S06R

Summary of Contents for ezOutboard EZ-S06R

  • Page 2 Dear customer, We are delighted that you have chosen EZ outboard. In terms of drive technology and efficiency, your EZ outboard is cutting-edge technology. It has been designed and manufactured with the utmost care and with a special focus on comfort, user-friendliness, safety, and has been extensively tested before delivery.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS To the User ································································································ 1 ······························································································· 1 Safety Information 1.1 Outboard motor safety ······························································································ 2 1.2 Boating safety········································································································ 2 ························································································ 2 Series and Specification 2.1 Sports and Commercial series ············································································· 4 2.2 Battery Selection ···························································································· 7 2.3 System Protection Characteristics ········································································· 8 3 Installation and Operation ··········································································...

  • Page 4: To The User

    Note To the User We continually seek advancements in EZ outboards are designed to operate safely product design and quality. Therefore, while and reliably as long as they are used this manual contains the most current according to the User’s Guide. Please read product information available at the time of this manual carefully before you start the printing, there may be minor discrepancies...

  • Page 5: Safety Information

    1 Safety Information 1.2 Boating safety This section includes a few of the many important 1.1 Outboard motor safety safety precautions that you should follow when boating. 1.11 Propeller 1.21 Alcohol and drugs People can be injured or killed if they come in contact with the propeller.
  • Page 6 · Do not follow directly behind other boats or Standing or sitting in non-designated Water skiers. locations may result in being thrown either · Avoid sharp turns or other maneuvers that make overboard or within the boat due to waves or it hard for others to avoid you or understand sudden changes in speed or direction.

  • Page 7: Series And Specification

    2 Series and Specifications 2.1 Sports & Commercial Series Sports and Commercial Series are for those customers who want to get the similar boat speeds as driven by gasoline outboards, the propeller speeds are between 2500-2800rpm. Power range: 6HP, 10HP, 20HP. All rights reserved Golden Motor Technology Co., Ltd.
  • Page 8 2.11 Components Safe key location Selectable speed knob Speed throttle Turn clockwise, outboard Length adjustable tiller reverses, Turn anticlockwise, outboard goes forward. Power Button Length adjustable shaft Transom mount bracket Trimming bolt To fix the locking position of the motor Outboard cowling Main housing Water pressure plate...
  • Page 9 2.12 Specifications Model Measurement EZ--S06T/R EZ--S10T/R EZ--S20T/R Units Parameters Equivalent Gasoline Engine Power Norminal Voltage Input Current FOC Controller VEC240 VEC300 VEC500 (Sine Wave) ≥90% ≥90% ≥90% Max Motor Efficiency Max Propeller Speed r/min 2500 2500 2500 Length mm (in.) 460 (18.1) 460 (18.1) 500 (19.7)

  • Page 10: Battery Selection

    2.2 Battery Selection We choose the most safe LiFePO4 battery cells for our expandable battery modules, the materials How do I determine the capacity of the used inside cell will not cause any fire or battery pack needed? explosion. The quality of cell is very consistent and can last more than 2000 charging cycles.

  • Page 11: System Protection Characteristics

    2.3 System Protection Characteristics When the outboard fails, the controller keeps beeping showing error code System protection features Beeping times Battery voltage is higher than default Over-voltage protection value. Battery voltage is lower than default Under-voltage protection value. Motor phase is short-circuit or phase to Motor over-current protection B+ is short-circuit.

  • Page 12: Installation And Operation

    3 Installation and Operation 3.12 Mounting height To run your boat at optimum efficiency, 3.1 Installation the water resistance (drag) of the boat and outboard motor must be made as 3.11 Installation indication little as possible. The mounting height of the outboard motor greatly affects the water resistance.
  • Page 13 3.13 Installation Instructions Overview of the outboard in opened wooden box 1. When you receive the goods, you will see this wooden box. 5. After opening the box, check parts below: 2. Use screw driver to open the wooden box. ①...
  • Page 14 6. Safety key should be attached to operator’s 8. Install the fin/skeg with screws arm.In case the operator falls over boat, it can cut off the power to prevent boat from running away under power, or hurting people. 9. Tighten the screws after mounting the outboard to boat tailgate.
  • Page 15 10.Tiller installation 11. Outboard titling up and down Tilting up: Unlock tilting switch A, then tilt up the outboard until you hear "click", tilting switch B is locked automatically. Tilting down: Slightly tilt up the outboard, unlock titling switch B, then tilt down the outboard and lock tilting switch A.
  • Page 16 Tilting Switch B 12.Outboard trimming There are 6 holes provided in the bracket to adjust trim angle. 1. Unlock titling switch A, remove clip pin and slightly tilt the outboard, then take out trim locking rod to adjust the outboard to desired position.
  • Page 17 13. Height adjustment There are 5 holes provided in the shaft to adjust the outboard motor height. Loosen screw and remove it to adjust the shaft length, tighten up the screw with s screwdriver. Make sure you adjust the shaft length according to your boat transom height before lifting to boat, otherwise you will spend much more strength to adjust it on boat.
  • Page 18 17. Slowly twist throttle to avoid overturn 15. Tighten the screws after mounting the out for small boat! board to boat tailgate. 16. Check if battery nominal voltage matches outboard’s nominal voltage before connecting battery to outboard. All rights reserved Golden Motor Technology Co., Ltd. 2019...

  • Page 19: Operation

    3.2 Operation • Follow the boat manufacturer’s The information presented in this section is instructions on the permissible intended as reference only. It is not possible motorization of your boat. Do not to provide complete instructions for every exceed the capacity limits. possible boat and motor combination.
  • Page 20 3.22 Operation 1.Put the safely key at its grooved place on throttle set, if it’s removed, the outboard will lose power and don’t working. 2. Make sure throttle is at N position before operating. If throttle twists to F/R, it will stop working and keep beeping to show error.

  • Page 21: Storage And Maintenance

    4 Storage and Maintenance 4.2 Replacement parts EZ gear-less and shaft-less design makes it 4.1 Storing outboard motor very unique, quiet, reliable, efficient and less When storing your outboard motor for vibration. The new design also takes prolonged periods of time (2 months or longer), consideration of compatibility of installation, several important procedures must be performed teleflex remote control and exchangeable...

  • Page 22: Removing Propellers

    4.3 Removing propeller 4.31 Spline models 4.32 Installing propeller 1. Straighten the cotter pin and pull it out using Be sure to use a new cotter pin and bend a pair of pliers. the ends over securely. Otherwise the 2. Remove the propeller nut, washer, and propeller could come off during operation spacer(if equipped).
  • Page 23 Propeller nut tightening torque: 17.0 Nm (1.73 kgf-m, 12.5 ft-lb) 4. Align the propeller nut with the propeller shaft hole. Insert a new cotter pin in the hole and bend the cotter pin ends. NOTICE: Do not reuse the cotter pin installed. Other-wise the propeller can come off during operation.

  • Page 24: Return And Repairs

    5 Return and Repairs ow the warranty does not apply We offer a flexible 14 day return policy if you  Inadequate maintenance. simply don't like what you've ordered and the  Unauthorized alteration, modification or package unopened or the products unused. misuse.
  • Page 25 Unauthorized changes/modification or tampering with any part of this product, or operation in any way other than as detailed in this User Manual, will render manufacturer’s warranty void. Golden Motor Technology Co.,Ltd. www.goldenmotor.com Website: sales@goldenmotor.com Email: Tel: 86 519 81004118 All rights reserved Golden Motor Technology Co., Ltd.
