Summary of Contents for Alcoa AK Series

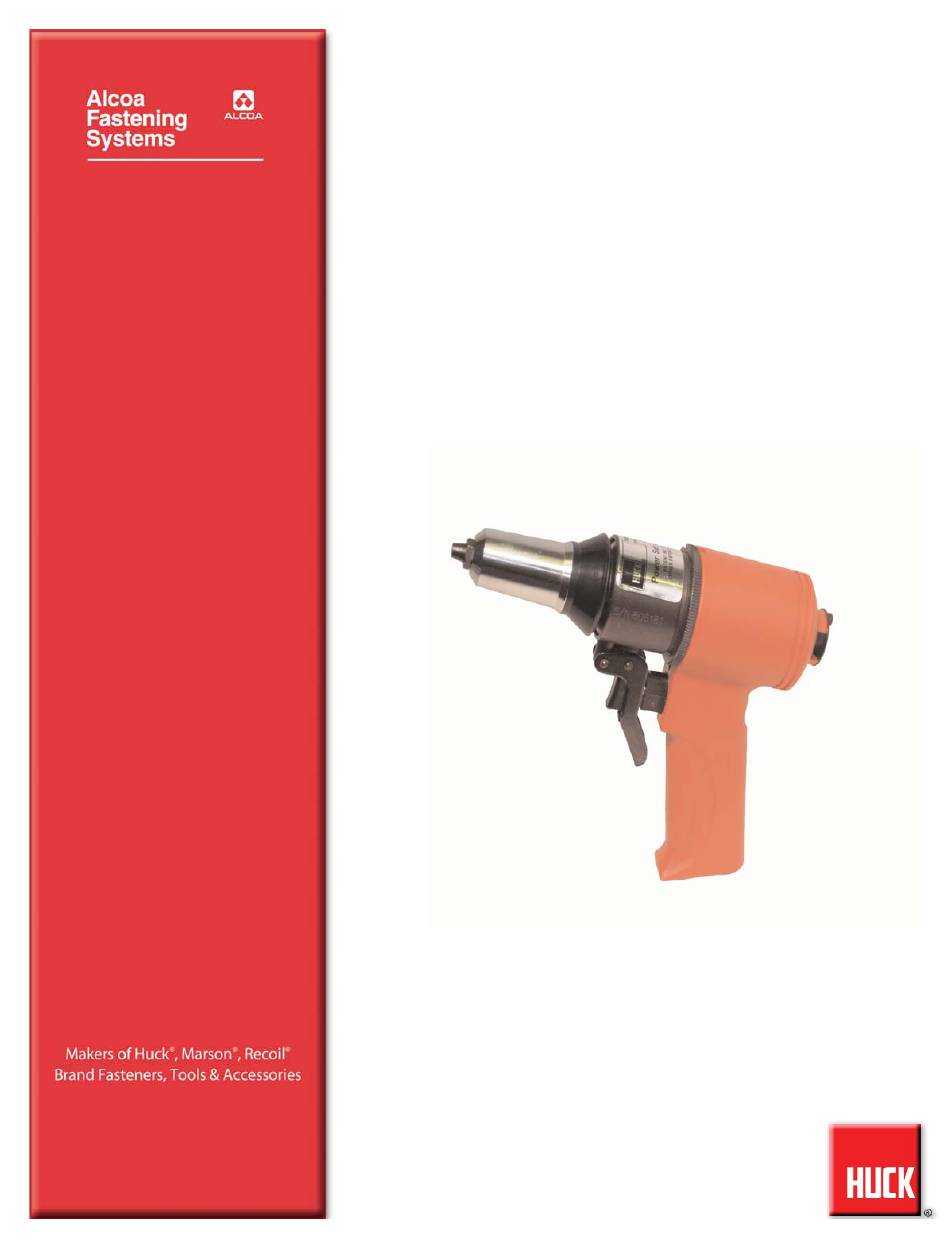

- Page 1 NSTRUCTION ANUAL Series Tooling AK-175 & 180 AK-175 ERIES NEUDRAULIC IVETING OOLS 08-22-2005 HK1057...
-
Page 3: Safety
Series Tooling Alcoa Fastening Systems AK-175 & 180 AFETY This instruction manual must be read with particular When repairing or operating Huck installation attention to the following safety guide lines, by any equipment, always wear approved eye protec- person servicing or operating this tool. -
Page 4: Table Of Contents
Series Tooling Alcoa Fastening Systems AK-175 & 180 ONTENTS ...........3 AFETY . -
Page 5: Principle Of Operation And Tool Specifications
Series Tooling Alcoa Fastening Systems AK-175 & 180 RINCIPLE OF OPERATION AND TOOL SPECIFICATIONS READ INSTRUCTIONS THOROUGHLY PRIOR TO The AK-175 utilizes totally different patented principles than OPERATING THE RIVETER. THIS RIVETER IS any other riveter. The air pressure activates a reciprocating... -
Page 6: Operating Instructions
Series Tooling Alcoa Fastening Systems AK-175 & 180 PERATING INSTRUCTIONS The AK-175 pneudraulic riveter installs fasteners by a pull and release system. Squeezing the ACTUATING TRIGGER "A" only (Fig. 2) will actuate the tool. The tool must be actuated when installing fasteners and changing nose pieces. -
Page 7: Rivet Pintail Removal
Series Tooling Alcoa Fastening Systems AK-175 & 180 INTAIL EMOVAL AND HREE IECE NSTALLATION AND EMOVAL Rivet Pintail Removal: Once Rivet is installed pintail must be removed 1. Point tool downward 2. Squeeze RELEASING TRIGGER “B”. It is necessary to REMOVE PINTAIL BEFORE ATTEMPTING TO INSTALL ANOTHER RIVET (see fig 3). - Page 8 Series Tooling Alcoa Fastening Systems AK-175 & 180 TWO PIECE JAW SYSTEM THREE PIECE JAW SYSTEM To replace JAWS, hold JAW HOLDER large end down and at a slight To replace JAWS, hold JAW HOLDER large end down and at a angle.
-
Page 9: Tool Maintenance
Series Tooling Alcoa Fastening Systems AK-175 & 180 Steps for Proper Tool Maintenance and Operation 1. Disassemble and clean NOSE components periodically 5. Before operating tool, make sure that all NOSE PARTS or if the pintails do not drop out freely, use a pick to clean have been screwed in HAND TIGHT. -
Page 10: Three Piece Jaw Installation And Removal
Series Tooling Alcoa Fastening Systems AK-175 & 180 ROUBLESHOOTING Problem Solution 1.) Rivet Pintail is stuck in tool First Step: Lightly tap nose against a hard surface while after breaking squeezing HANDLES and pressing down the RELEASING BUTTON with tool pointing downward Pintail should then fall out, see fig. -
Page 11: Optional
Series Tooling Alcoa Fastening Systems AK-175 & 180 PTIONAL CCESSORIES Part Number Description 202156 Nose Piece - 1/8” for Trim Molding Pop Rivets 202159 Nose Piece - 3/32” & 1/8” Pop Rivets 202190 Nose Piece - 1/8” Stand Off Pop Rivets 202158 Nose Piece - 5/32”... -
Page 12: Day Warranty
U.S. Patent No's 4248077, 4263801, 4735048 All Alcoa Fastening Systems tools and parts have been carefully tested and checked at the factory and are guar- anteed to be free from defects in material and workmanship, subject to the following conditions. - Page 13 Series Tooling Alcoa Fastening Systems AK-175 & 180 IMITED ARRANTIES Tooling Warranty: Huck warrants that tooling and other CHANTABILITY OR FITNESS FOR USE OF ANY TOOL, items (excluding fasteners, and hereinafter referred as PART(S), OR OTHER ITEMS THEREOF NOT MANU- "other items") manufactured by Huck shall be free from...
- Page 14 NOTICE: The information contained in this publication is only for One Great Connection HWB898 1003-5M general guidance with regard to properties of the products shown © 2003 Alcoa Fastening Systems 1 Corporate Drive, Kingston, NY 12401 • Tel: 800-278-4825 • Fax: 845-334-7333 • E-mail: hkitoolinfo@alcoa.com • www.alcoafasteningsystems.com...
