bitro LATTICE Installation Manual

INSTALLATION GUIDE

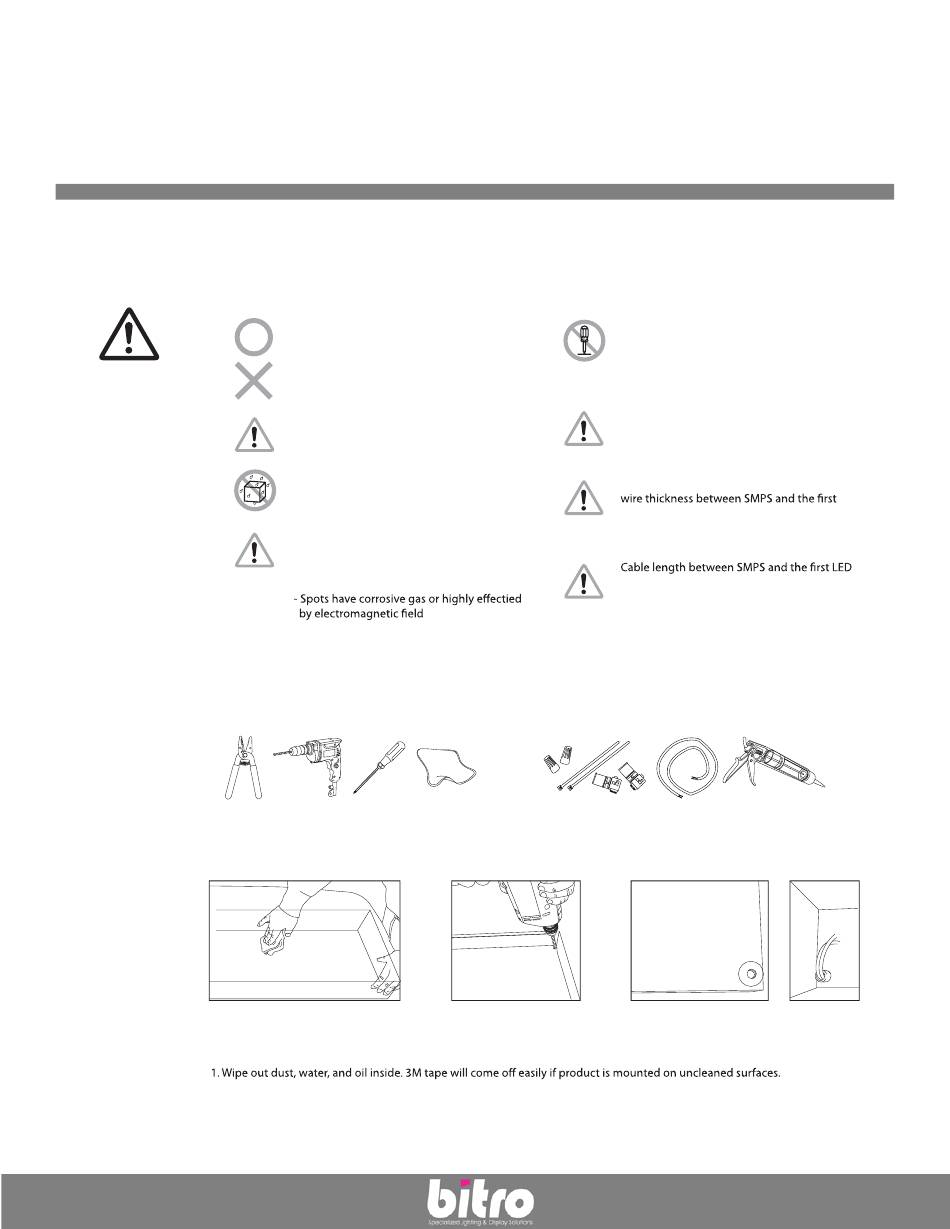

PRECAUTIONS Use precautions to avoid damages to the product or injuries of users. Any actions against following contents will cause serious
issues such as malfunction, electric shock, or burn.
DC24V
AC INPUT
PREPARATION
TOOLS REQUIRED
Wire Stripper, Drill, Screw Driver, Wiper
PREPARE CHANNELS
1. Clean and remove all debris from
the inside of the box
2. Make holes for wires from modules to SMPS.
3. Without bushins, wires will easily be cut and short-circuit will occur.
* Use white paint inside the box for better reflection
LED Carpet Matrix Lighting System for Sign Cabinets and Large Light Boxes
USE DC24V ONLY
DO NOT USE AC INPUT directly to the LEDs
Do not cut or rejoin wires while product
is connected wth live power source
Avoid performing installation under rain or
high humidity for outdoor use
Do not use the product under circumstances
listed below
- High temperature spots over 60˚C (140˚F)
- Spots draw extreme moisture or dust
2. Drill a 1/4" hole on the corner
The LATTICE
Do not perform actions listed below
- Alter or modify
- Touch LED lamps with sharp objects
- Put glue or silicone over the LED lamps
Maximum driver quantity per serial
connection is limited. Failure causes overload
of current and damages to the product
Refer to 'WIRE THICKNESS' table to use proper
LED module
Failure will cause dimmed output
module is limited.
SUPPLIES REQUIRED
Lattice and power supply, UL Approved parts: Wire Nuts, Cable Ties,
IDC Connectors, VCTF(PLTC) Cable
(Optional : Silicone and Screws)
3. Grommet the hole for supply wire access
