- Page 1 User Manual WUH5-H2 HDMI 2.0 5x1 Switcher with HDR & CEC All Rights Reserved Version: WUH5-H2_2018V1.0...
- Page 2 HDMI 2.0 5x1 Switcher with HDR & CEC Preface Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to real product. This manual is only for operation instruction, please contact the local distributor for maintenance assistance.
- Page 3 HDMI 2.0 5x1 Switcher with HDR & CEC SAFETY PRECAUTIONS To ensure the best performance from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for ...
-
Page 4: Table Of Contents
HDMI 2.0 5x1 Switcher with HDR & CEC Table of Contents 1. Product Introduction ....................1 1.1 Features ......................1 1.2 Packing List ....................... 1 2. Specification ....................... 2 3. Panel Description ......................3 3.1 Front Panel ......................3 3.2 Rear Panel ......................3 4. -
Page 5: Product Introduction
HDMI 2.0 5x1 Switcher with HDR & CEC 1. Product Introduction The WUH5-H2 is an ultra-thin HDMI 2.0 Switcher with five HDMI video inputs and one HDMI output. The switcher supports HDMI video resolution up to 4K@60Hz 4:4:4. The SOURCE switch on the front panel is designed to switch any one of the inputs to output. -
Page 6: Specification
HDMI 2.0 5x1 Switcher with HDR & CEC 2. Specification Video Input Input (5) HDMI Input Connector (5) Female type-A HDMI HDMI Input Resolution Up to 4Kx2K@60Hz 4:4:4 HDMI Standard HDCP Version Video Output Output (1) HDMI Output Connector (1) Female type-A HDMI HDMI Output Resolution Up to 4Kx2K@60Hz 4:4:4 HDMI Standard... -
Page 7: Panel Description

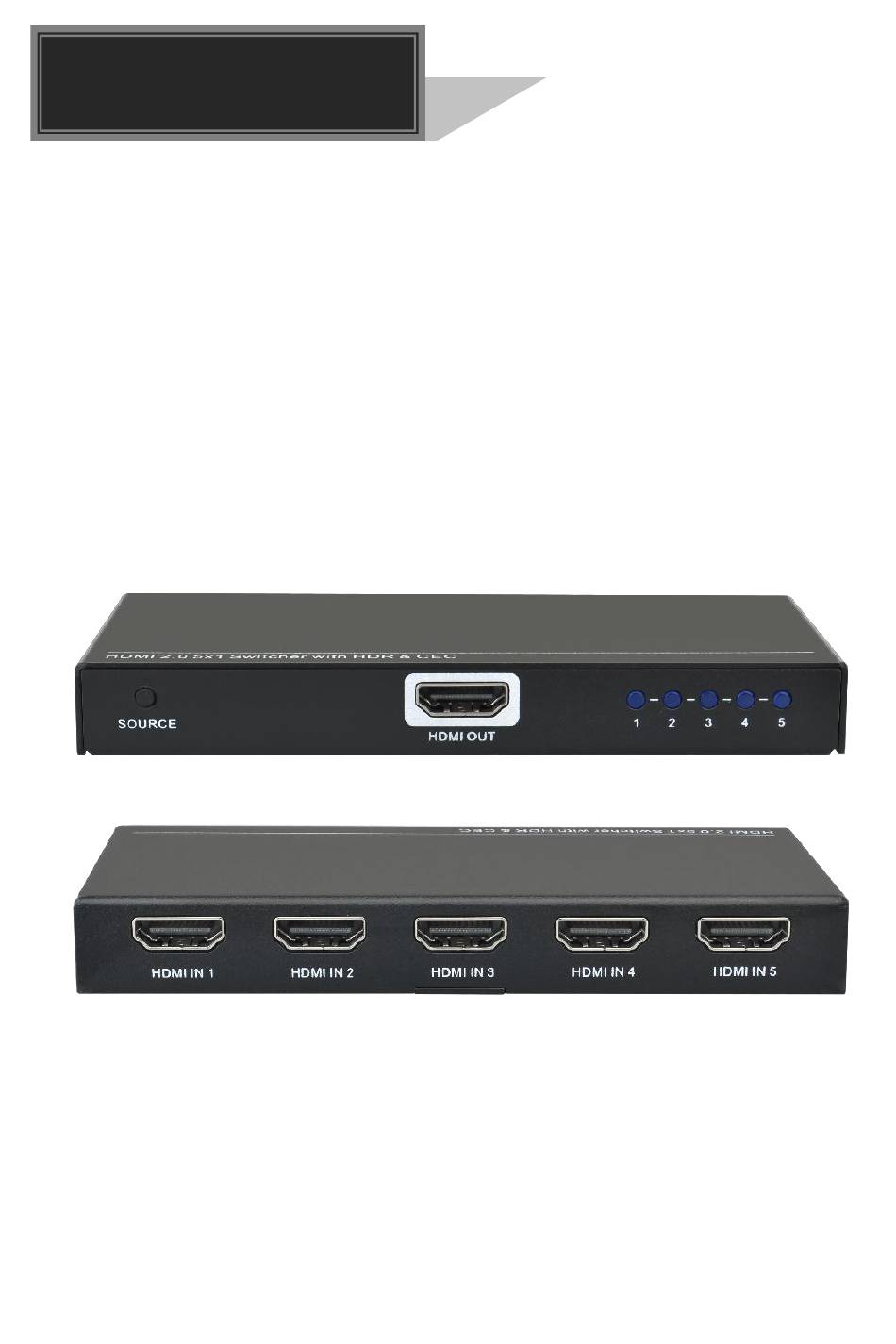

HDMI 2.0 5x1 Switcher with HDR & CEC 3. Panel Description 3.1 Front Panel ① SOURCE: Press the button to switch to the next input. ② HDMI OUT: Type-A female HDMI output port to connect HDMI display. ③ INPUT LED: The LED illuminates blue when there is HDMI input on the corresponding channel. -
Page 8: System Connection
HDMI 2.0 5x1 Switcher with HDR & CEC 4. System Connection 4.1 Usage Precautions Make sure all components and accessories included before installation. System should be installed in a clean environment with proper temperature and humidity. All of the power switches, plugs, sockets, and power cords should be insulated and ... -
Page 9: Panel Drawing
HDMI 2.0 5x1 Switcher with HDR & CEC 5. Panel Drawing 126 mm... -
Page 10: Troubleshooting & Maintenance
HDMI 2.0 5x1 Switcher with HDR & CEC 6. Troubleshooting & Maintenance Problems Potential Causes Solutions The connecting cables may Check whether the cables not be connected correctly are connected correctly and Colour losing or no video or it may be broken. in working condition. -
Page 11: Customer Service
HDMI 2.0 5x1 Switcher with HDR & CEC 7. Customer Service The return of a product to our Customer Service implies the full agreement of the terms and conditions hereinafter. There terms and conditions may be changed without prior notice. 1) Warranty The limited warranty period of the product is fixed three years.
