LADDER SETUP (continued)
C
C
17 (M6*35)
14
C

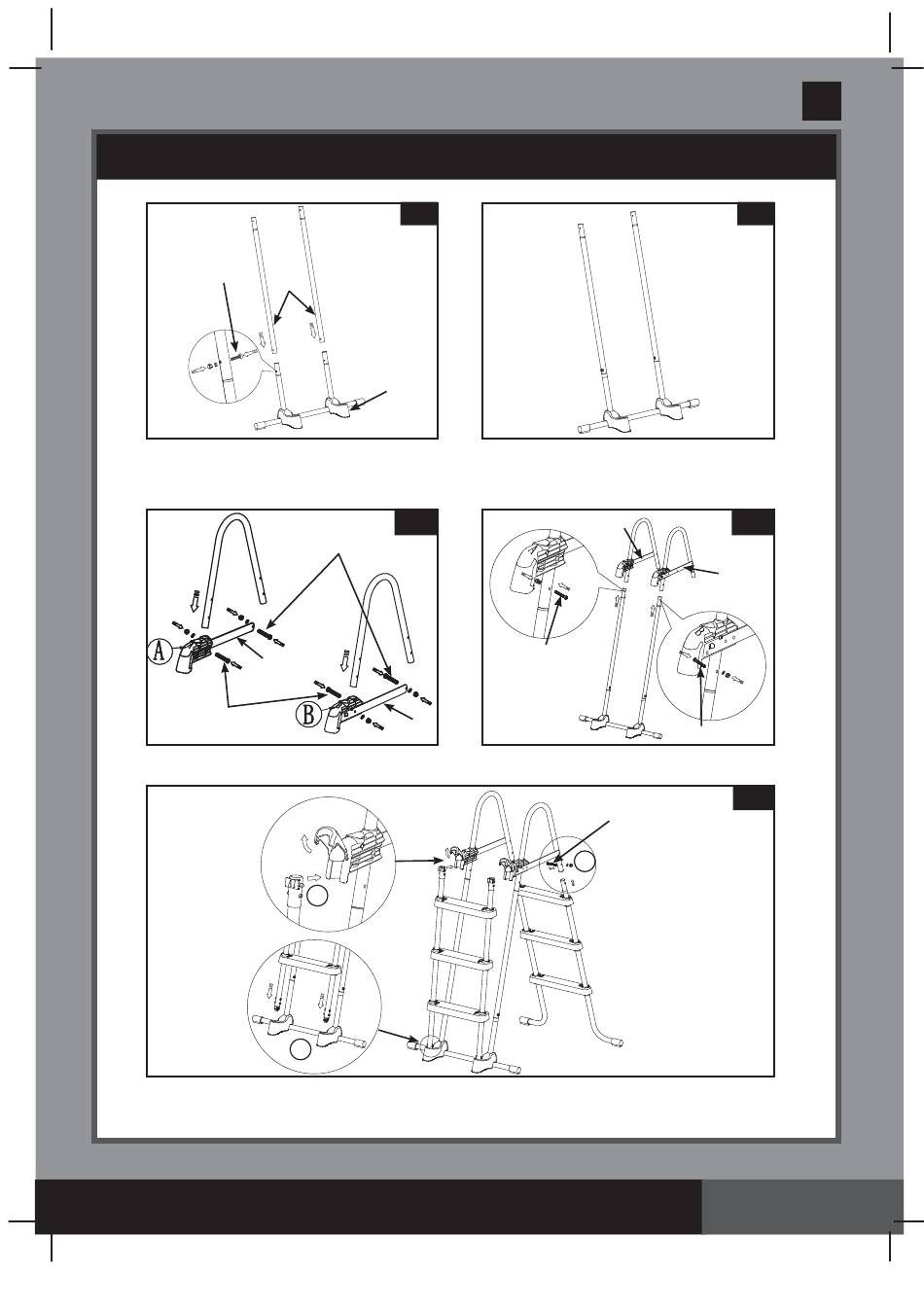

4. U-SHAPED TOP RAIL INSTALLATION (refer to figures 4.1 through 4.2):
IMPORTANT: Make sure the "top brace with locking system" (3) feature is facing
outward (your right side when facing the C legs assembly).
12524
5 (M6*45)
5. SIDE A & B LEGS INSTALLATION (refer to figure 5):
2
IMPORTANT: Do not fully tighten fasterners until last assembly operation
SAVE THESE INSTRUCTIONS
