finder 12.A1 Quick Start Manual

ENGLISH
12.A1/A2 DIGITAL ASTRO TIME SWITCH
Programmable with NFC technology with the App FINDER TOOLBOX
downloaded from Google Play™
1

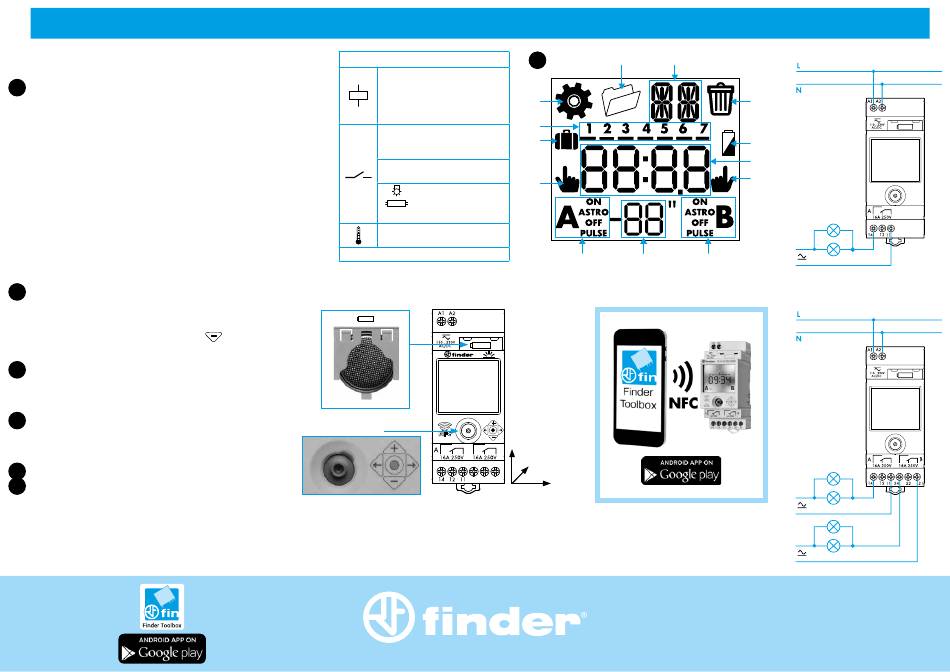

DISPLAY INDICATORS
A Setting Menu
B Days of the week (1= Mon...7= Sun)
C Holiday program
D Permanent Manual over-ride activated - channel A
E Channel A functions (ON, OFF, Astro ON, Astro OFF, Pulse)
F Day - Advanced/Retarded - seconds/minutes
G Channel B functions (ON, OFF, Astro ON, Astro OFF, Pulse)
H Permanent Manual over-ride activated - channel B (12.A2 only)
I Time-CP (post code), year, day, month, hours, minutes,
daylight saving ON/OFF, holiday program (Start: day/month.
Finish: day/month) PIN ON/OFF, End
L Time switch without power supply (powered by battery) - Low battery
(with power supply)
M Cancel
N Program number (max 50) - IT (country), CP (leading two characters
of CP), Coor (geographic coordinates in degrees), N(North)/
S(South), E(East)/W(West), TZ(Time zone), Y(year), D(day),
M(month), H(hour), M(minutes), Daylight saving ON/OFF
(EU=Europe − BR=Brazil − AU=Australia)
Holiday program (Start: day/month. Finish: day/month)
O Programming
2
SETTINGS (examples)
2a Setting: Country, CP (leading two characters of CP), year, day,
month, hour, minutes, EU (daylight saving)
2b Holiday program (Start: day/month. Finish: day/month), PIN, END
2c Setup by geographic coordinates. Start at 2a, but at the select
Country or select CP stage, scroll down with
setting. Continue by setting the coordinates and time zone.
Latitude: North-South. Longitude: East-West. Time zone(TZ)
3
PROGRAMMING (examples)
3a ASTRO ON - ASTRO OFF Function (18:19 Astro ON + retarded
10 min - 05:20 Astro OFF + advanced 20 min); Day: Mon...Fri
3b ON - OFF Function (6:25 ON - 19:15 OFF, Mon, Wed, Fri, Sun)
3c PULSE function (11:00 pulse 5 s, Mon Wed Fri)
4
MANUAL MODE
4a Manual ON/OFF channel A
4b Manual ON/OFF channel B (only 12.A2)
4c Permanent Manual over-ride ON/OFF - Channel A
4d Permanent Manual over-ride ON/OFF - Channel B (12.A2 only)
5
DELETION of all program
6
DELETION of single program
NOTE
- Battery replacement: BATTERY CR 2032 (LiMnO
Complies with Article 11, EU directive 2006/66/CE.
Dispose of batteries according to local regulations
- Back-light display (only with power supply)
- Minimum switching interval: 1 second (pulse function)
- ASTRO times vary over the year, time switch times remain constant
EN 60669-1 / EN 60669-2-1
12.Ax.8.230.0000
U
N
U
min
U
max
P 2.8 VA (50 Hz) / 0.9 W
1 CO (SPDT) (12.A1)
2 CO (DPDT) (12.A2)
16 A 250 V AC
AC1 4000 VA
AC15 (230 V AC) 750 VA
CFL-LED (230V)
(–20...+50)°C
to enter Coor
JOYSTICK
) 3V, 230mAh.
2
12.A1 - 12.A2
1
110...230 V AC (50/60 Hz) / DC
90 V AC / DC
A
264 V AC / DC
B
C
D
(230V) 2000 W
(230V) 750 W
400 W
IP20
12.A2.8.230.0000
88.8 mm
B
60.8 mm
24 22 21
35 mm
www.findernet.com
