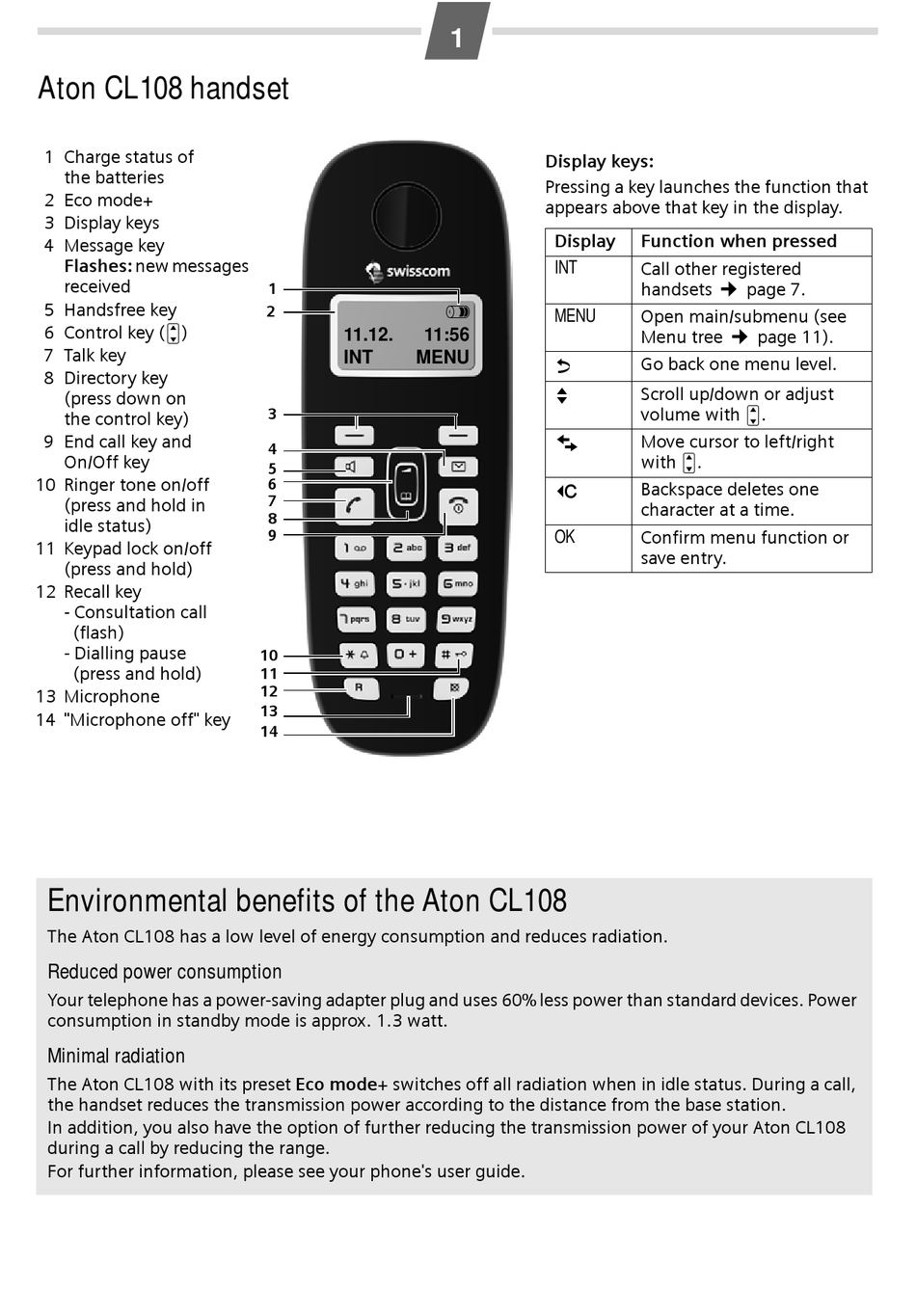

Aton CL108 handset
1 Charge status of
the batteries
2 Eco mode+
3 Display keys
4 Message key
Flashes: new messages
received
5 Handsfree key
6 Control key (u)
7 Talk key
8 Directory key
(press down on
the control key)
9 End call key and
On/Off key
10 Ringer tone on/off
(press and hold in
idle status)
11 Keypad lock on/off
(press and hold)
12 Recall key
- Consultation call
(flash)
- Dialling pause
(press and hold)
13 Microphone
14 "Microphone off" key
Environmental benefits of the Aton CL108
The Aton CL108 has a low level of energy consumption and reduces radiation.
Reduced power consumption
Your telephone has a power-saving adapter plug and uses 60% less power than standard devices. Power
consumption in standby mode is approx. 1.3 watt.
Minimal radiation
The Aton CL108 with its preset Eco mode+ switches off all radiation when in idle status. During a call,
the handset reduces the transmission power according to the distance from the base station.
In addition, you also have the option of further reducing the transmission power of your Aton CL108
during a call by reducing the range.
For further information, please see your phone's user guide.
1
2
11.12.
11:56
INT
MENU
3
4
5
6
7
8
9
10
11
12
13
14
1
Display keys:
Pressing a key launches the function that
appears above that key in the display.
Display
INT
V
MENU
"
U
T
˜
OK
Function when pressed
Call other registered
¢
handsets
page 7.
Open main/submenu (see
¢
Menu tree
page 11).
Go back one menu level.
Scroll up/down or adjust
volume with u.
Move cursor to left/right
with u.
Backspace deletes one
character at a time.
Confirm menu function or
save entry.
Advertisement
Table of Contents
Related Manuals for ATON CL108
Summary of Contents for ATON CL108
- Page 1 1.3 watt. Minimal radiation The Aton CL108 with its preset Eco mode+ switches off all radiation when in idle status. During a call, the handset reduces the transmission power according to the distance from the base station.
-
Page 2: Safety Precautions
Safety precautions Care Wipe the charging cradle and the handset with a Read this user guide and the safety precautions carefully damp cloth (do not use solvent) or an antistatic before use. Explain their contents and the potential haz- ards associated with using the telephone to your chil- cloth. -
Page 3: First Steps
First steps Check the pack contents ◆ One handset, ◆ one charging cradle, ◆ one mains adapter, ◆ two batteries, ◆ one battery cover, ◆ one user guide (German, French, Italian), ◆ Environmental leaflet (Swisscom). Setting up the charging cradle The charging cradle is designed to be operated in enclosed, dry areas at temperatures ranging from +5 °C to +45 °C. - Page 4 Setting up the handset for use The display is protected by a plastic film. Please remove the protective film! Inserting the batteries and closing the battery cover Warning ¢ Use only the rechargeable batteries ( page 9). Never use a conventional (non- rechargeable) battery or other battery types as this could result in significant health risks and personal injury.
- Page 5 Before you can use the phone, you must first register the handset to the base station. The actual registration procedure will depend on the type of base station. Automatically register the handset to the Aton CL108 base station ¤ Place the handset with...
- Page 6 Initial charging and discharging of the batteries The correct charge level can only be displayed if the batteries are first fully charged and discharged. ¤ Place the handset in the base station or charging cradle for eight hours. ¤ Then remove the handset from the base station or charging cradle and do not replace it until the batteries are completely discharged.
-
Page 7: Making Calls
Making calls Using the directory and lists Making external calls and ending calls Directory External calls are calls using the public telephone "Swisscom Hotline" network. ¢ The first entry in the directory is pre-programmed (Enter the phone number) as the with the access number 0800 800 Hotline The phone number is dialled. -
Page 8: Setting The Alarm Clock
Opening lists with the message key The following functions can be selected with Save new phone number. New Entry An advisory tone sounds and the message key Display the phone number. Show Number flashes as soon as a new entry appears in a list. A message appears in the display. -
Page 9: Entering Letters/Characters
Appendix Faults and self-help with troubleshooting Entering letters/characters Not every problem signifies a fault in your tele- Press the required key the number of times indi- phone. In some cases, problems can be resolved by cated. briefly interrupting the power supply to the base Briefly press the hash key to switch from station (unplug the power supply unit and then... -
Page 10: Warranty/Maintenance/Repair/Approval
Warranty/Maintenance/Repair/ Approval Approval This device is intended for analogue telephone connection in the Swiss network. Warranty Country-specific requirements have been taken The warranty period is 2 years as of the date of pur- into consideration. chase. For warranty repair, the warranty card, filled Swisscom hereby declare that this device meets out and stamped by the place of purchase must the essential requirements and other relevant reg-... - Page 11 Menu tree Your phone has a variety of features. These are As an alternative to selecting functions using the offered in the form of menus. buttons, you can also enter the digit combination that is in front of the function in the To select a function while the phone is in idle sta- menu tree.
