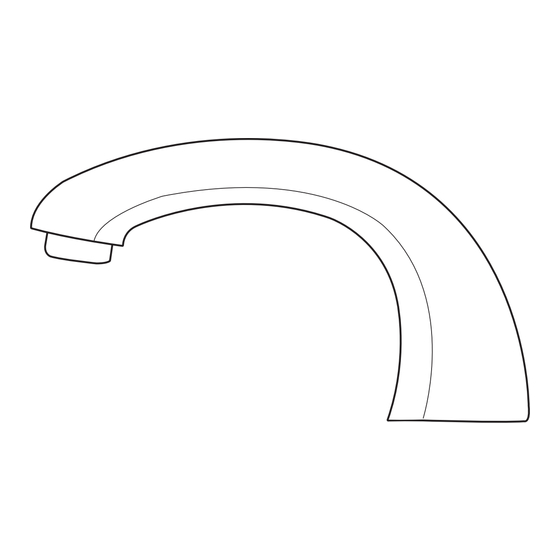

Automatic faucet with surround sensor technology

Advertisement

Milano
A
F
UTOMATIC
AUCET
Surround Sensor
with
Technology
Installation & Maintenance
IMPORTANT: PLEASE READ ENTIRE INSTRUCTION
IMPORTANT: PLEASE READ ENTIRE INSTRUCTION
BOOKLET BEFORE YOU BEGIN INSTALLATION!
BOOKLET BEFORE YOU BEGIN INSTALLATION!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Milano and is the answer not in the manual?

Questions and answers

Summary of Contents for Technical Concepts Milano

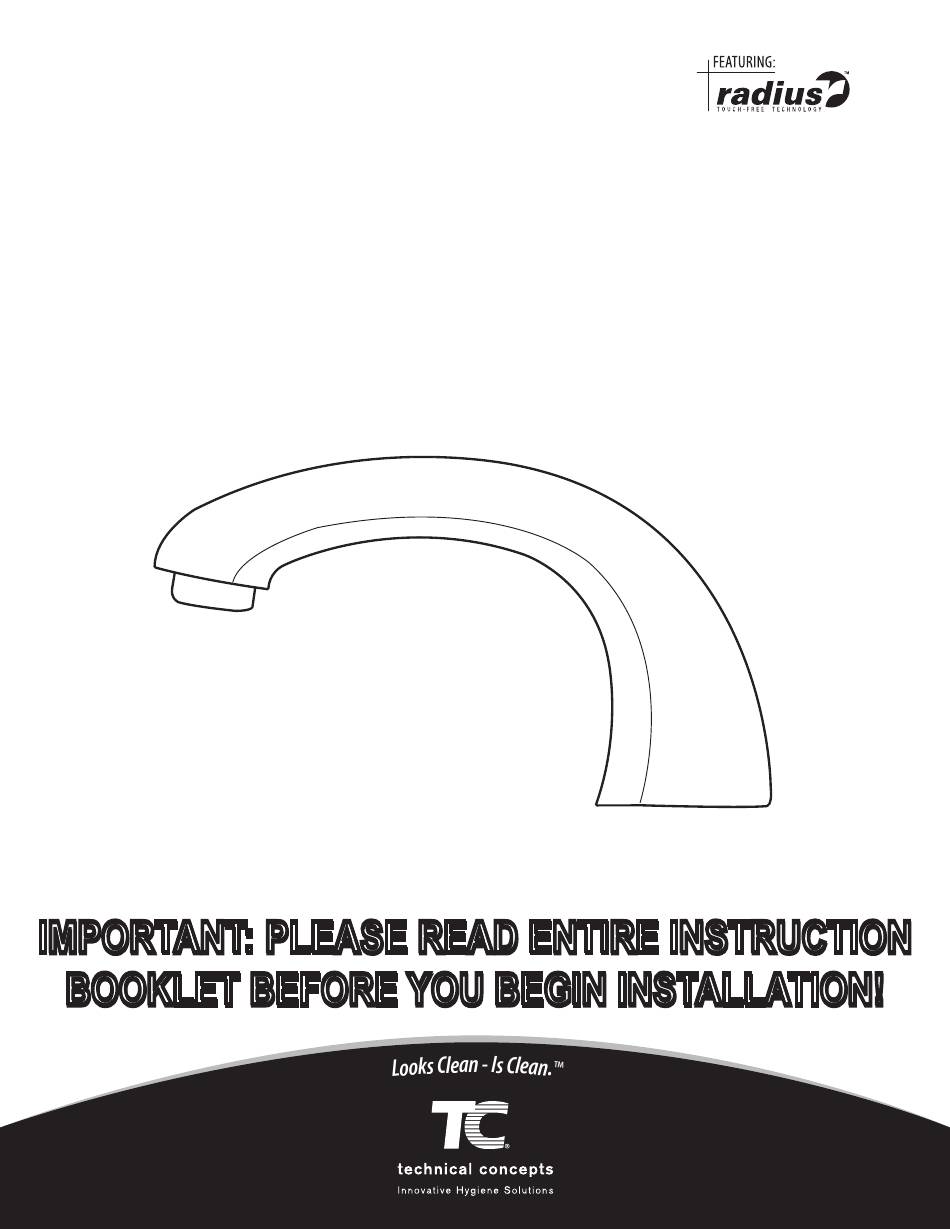

  • Page 1 Milano UTOMATIC AUCET Surround Sensor with Technology Installation & Maintenance IMPORTANT: PLEASE READ ENTIRE INSTRUCTION IMPORTANT: PLEASE READ ENTIRE INSTRUCTION BOOKLET BEFORE YOU BEGIN INSTALLATION! BOOKLET BEFORE YOU BEGIN INSTALLATION!
  • Page 2: Step

    ® AutoFaucet Parts List SINK or COUNTERTOP Tools Required: Basin or Crescent wrench, slotted and Phillips screwdriver Optional TC Faucet Universal Tool # 490142 Cover Plates 10" 12" 4" 8" 12mm 25mm Optional Aerators Available: Optional AC Adapters: NOTE: An AC wire assembly needs to be 0.5 GPM (vandal resistant) #401190 Single unit AC adapter #490099...
  • Page 3: Step

    Installing Your New Faucet IMPORTANT - DO NOT USE PIPE DOPE OR TEFLON TAPE FOR ANY FAUCET OR SUPPLY CONNECTIONS! Step 1 Attach both threaded studs (D) to the bottom of the semi-assembled cover plate. Step 2 Guide the semi-assembled faucet spout through the 3-hole 4” or 8” center set in counter or sink.
  • Page 4: Table Of Contents

    Step 5 Step 1 Step 2 Step 6 Step 3 Step 7 Step 4 Step 8...
  • Page 5: Step

    Step 9 Connect the longer green earth ground wire to the clamp tab. Step 10 Mount the drain ground clamp to the metal drain tail stock as close to the sink as possible. Step 11 Connect the brass plated end (black sleeved) of the green Grounding Isolation Wires (BB) to the drain ground clamp tab (V).
  • Page 6: Step

    Step 13 Step 9 Step 10 Step 14 Step 15 Step 11 Step 12 Step 16...
  • Page 7: Step

    Figure 1 Note: Above counter parts come pre-assembled. IMPORTANT: All Wires MUST BE connected IMPORTANT: All Wires as shown! MUST BE connected as shown! Black Sensor Wire RED INDICATOR Drain Ground Wire MANUAL OVERRIDE DIAL RESET BUTTON attach to drain IMPORTANT: Must have Earth Ground Wire tight connection...
  • Page 8 If the connector has broken off of the black sensor wire or the valve control module appears to be defective defective valve control module please contact Technical Concepts. Do not attempt to repair the valve control module (K) or sensor wire. electronics.
