Summary of Contents for Henco CU-REGB-RF

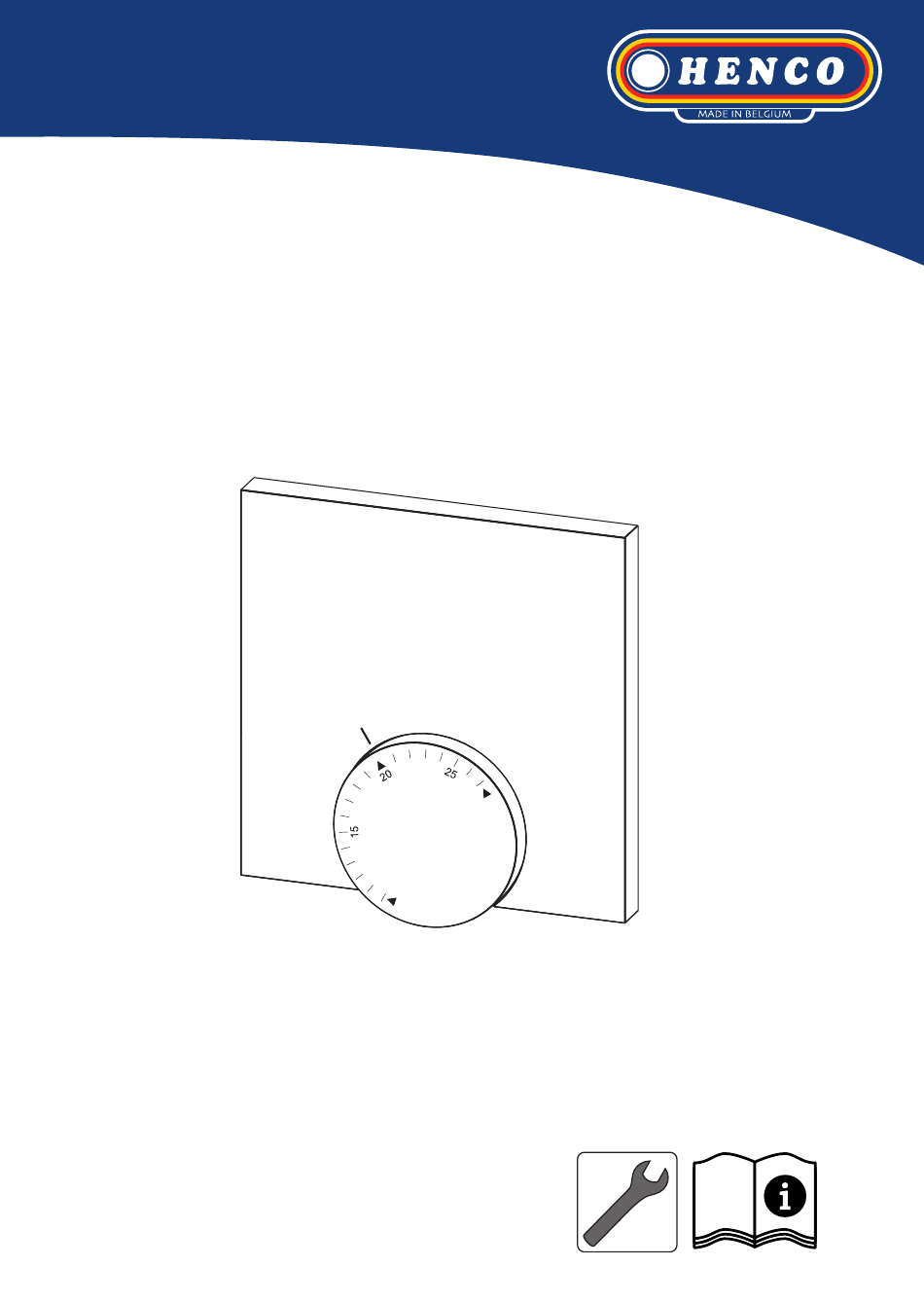

  • Page 1 CU-REGB-RF...
  • Page 3 Warnung Lebensgefahr durch Verschlucken Kleinkinder können Batterien/Drehknopf verschlucken. ¾ RBG außerhalb der Reichweite von Kleinkindern montieren. Warning Danger to life in case of swallowing Little children can swallow batteries/the rotary control. ¾ Install room control unit outside the reach of little children. Avertissement Danger de mort par suite d’ingestion Les petits enfants peuvent avaler les piles/bouton.
  • Page 4 2 x* * optional / en option / optioneel / opzionale / opcional ~30 cm ~150 cm...
  • Page 5 Ø 3,5 mm...

  • Page 6: Table Of Contents

    Content 1 Safety ...................15 Used signal words and notes ............... 15 Intended use ....................15 General safety notes ..................15 2 Versions ..................16 Technical Data ....................16 Conformity .......................16 3 Operation ..................17 Overview ......................17 Commisioning (incl. pairing) ................17 Operation ......................17 Radio test ......................18 Limiting the adjustable temperature range (optional) ......18 Adjusting the target temperature ..............18...

  • Page 7: Safety

    1 Safety Used signal words and notes The following symbols show you, that ¾ you must do something 9 a precondition must be met Warning there is danger for life and limb. Intended use The wireless room control unit analog is the wireless operating unit for the Base Station Wireless CU-8ZONE-RF &...

  • Page 8: Deu 2 Versions

    2 Versions Technical Data CU-REGB-RF Floor temperature monitoring – 2 x LR03/AAA (micro battery) Voltage supply alkaline Radio technology Radio, 868 MHz SRD Band Radio range 25 m (in buildings) Battery lifetime >2 years Protection type/protection class IP20 / III Ambient temperature 0 to 50°C...

  • Page 9: Operation

    3 Operation Overview Housing Rotary control Commisioning (incl. pairing) ¾ Take off the rotary control. ¾ Activate the pairing function at the base station for the desired heating zone (see base station manual BSF X0XX2-XX). ¾ Press the pairing button (see picture to the right) shortly to activate pairing function of the room control unit.

  • Page 10: Ndl Radio Test

    Radio test ¾ Pressing the rotary knob activates the radio test. 9 The LED of the connected heating zone is toggled for 1 minutes, thus switched on or off depending on it‘s current operating state. Limiting the adjustable temperature range (optional) max.

  • Page 11: Cleaning And Troubleshooting

    4 Cleaning and Troubleshooting Troubleshooting Error signalling is performed via the heating zone LED of the base station the room control unit is assigned to. LED base station Meaning Solution Heating zone ¾ Move position of the Radio connection Duration in seconds room control unit to the room con- ¾...

  • Page 12: Cleaning

    Cleaning Only use a dry and solvent-free, soft cloth for cleaning. 5 Decomissioning Disposal The batteries and the room control unit must not be disposed with domestic waste. The operator has the duty to hand the devices to appropriate collection points. The separate collection and orderly disposal of all materials will help to conserve natural resources and ensure a recycling in a manner that protects human health and the environment.
