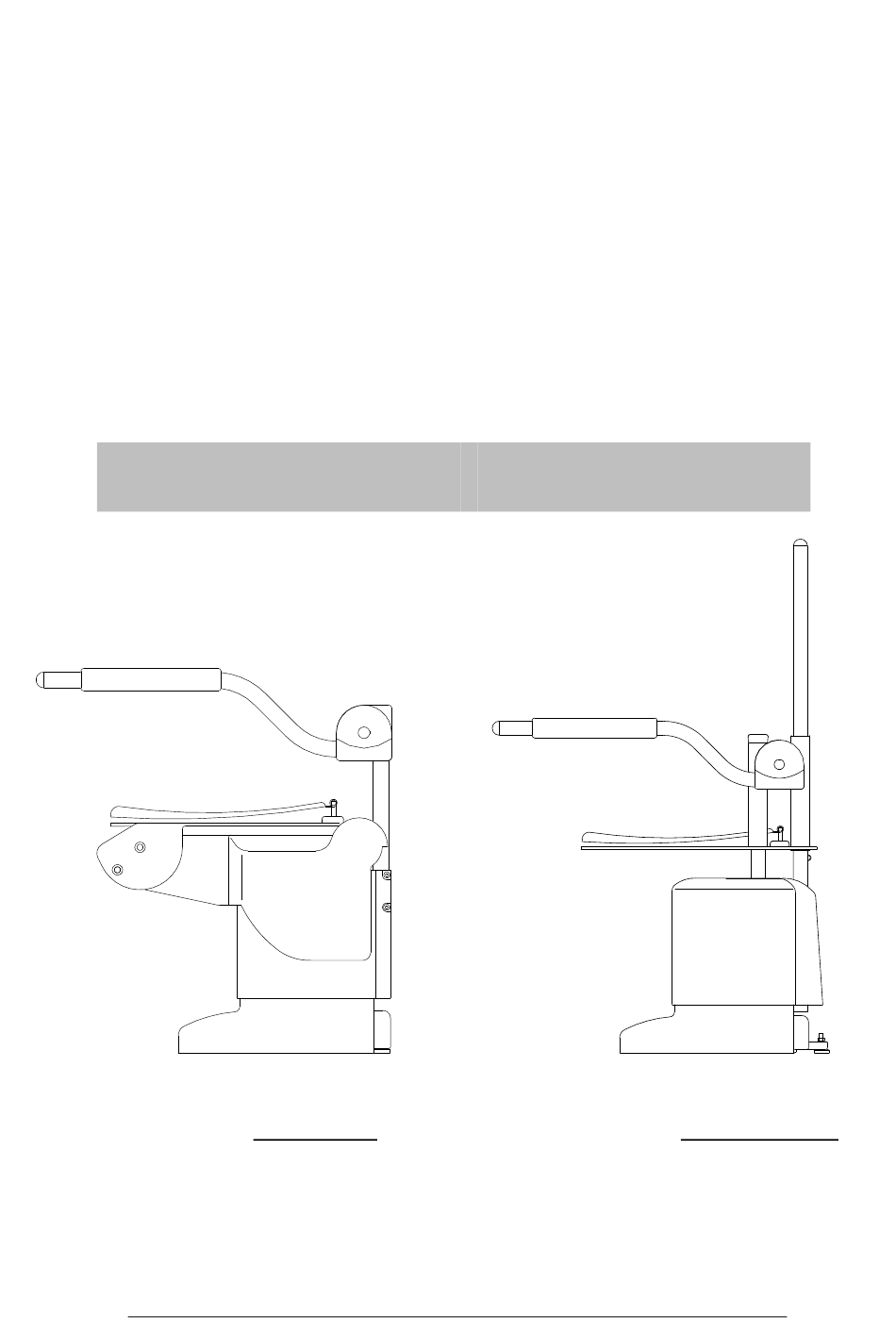

- Page 1 ® Aerolet oilet lift The ergonomic toilet-aid Manual and Installation TILTING VERTICAL ® Aerolet m ade by Econom ic Holland b.v Aerolet Manual+Installation T ilting + V ertical - C B -6 - version: 04 - Eng - March 2015...
-
Page 2: Specifications Of Your Own Aerolet
Specifications Data of your own toilet lift are Measurements: Vertical Tilting Width 69 cm 68 cm Depth 56 cm 56 cm Heighest position When toiletbowl 39,5 cm 80 cm 75 cm When toiletbowl = 50 cm 90 cm 88 cm Height adjustments: Bowl height : 39,5 - 52 cm... -
Page 3: Table Of Contents
Table of contents Specifications of your own Aerolet............2 Preface....................4 Cleaning & m aintenance of the Aerolet..........5 Basic-structure of the Aerolet..............6 The Aerolet wire diagram ..............7 Im portant inform ation................8 Guarantee and repair................9 Form ation of an Aerolet...............11 Operation instructions................13 Rem oval and installation of the covers..........15 Prepair the Aerolet for a “height”... -
Page 4: Preface
Preface Dear user, ® Congratulation on your purchase of the Aerolet toiletlift. This state of the art assistive device has been delivered to you with great pride in its design and quality materials. ® The revolutionary design concept of the Aerolet has evolved from years of research and development. -
Page 5: Cleaning & M Aintenance Of The Aerolet
Cleaning & maintenance of Aerolet Aerolet • is designed for easy cleaning. Warning Aerolet Unplug the from the GFCI when cleaning the lift. Aerolet should be cleaned with each routine bathroom cleaning. • Do not use chlorine bleach and/or hydrochloric acid (scale solvents) based products to clean the lift. -
Page 6: Basic-Structure Of The Aerolet
Basic-structure of the Aerolet toilet lift Aerolet Manual+Installation T ilting + V ertical - C B -6 - version: 04 - Eng - March 2015... -
Page 7: The Aerolet Wire Diagram
The Aerolet wire diagram Aerolet Manual+Installation T ilting + V ertical - C B -6 - version: 04 - Eng - March 2015... -
Page 8: Important Information
Important information Never change lift settings yourself, but leave this to an authorized person. Lift repairs may only be done when power is off ! ® Your Aerolet toilet lift is absolutely no toy ! Pay special attention to warning symbols used in this manual. -
Page 9: Guarantee And Repair
Guarantee and Repair ® Aerolet Economic Holland b.v. guarantees the against material and manufacturing faults from 24 months from the purchase day. The guarantee period starts from the delivery- or the installationday when placed by an authorized dealer. During this guarantee period the authorized dealer will replace or repair at his own choice the faults. - Page 10 VIEW FROM ABOVE OF SEVERAL FORMATIONS Aerolet Manual+Installation T ilting + V ertical - C B -6 - version: 04 - Eng - March 2015...
-
Page 11: Form Ation Of An Aerolet
Formation of an Aerolet toilet lift For installing the strip of the lift a minimum of 105 mm is needed from the wall to the center mounting holes in the bowl (where the existing toilet seat was mounted) ® To each side of the Aerolet , a 50 mm space is necessary to adjust the lift-rise settings. - Page 12 Warning! Danger of hand-jam. When the lift is in motion your hand(s) must always be on the arm supports or in your lap. Aerolet Manual+Installation T ilting + V ertical - C B -6 - version: 04 - Eng - March 2015...
-
Page 13: Operation Instructions
Operation instructions ® • The Aerolet lift operates by two easy press button controls. These buttons are situated on the inner side on one of the arm supports. The FRONT BUTTON = UP (controls the upward m ovem ent of the lift) The REAR BUTTON = DOW N (controls the downward m ovem ent of the lift) ®... - Page 14 Aerolet Manual+Installation T ilting + V ertical - C B -6 - version: 04 - Eng - March 2015...
-
Page 15: Removal And Installation Of The Covers
Removal and installation of the covers WARNING • The user may NEVER remove or install the covers of the lift. • This should only be changed by a certified professional REMOVAL ® • All covers are fastened to the frame with Velcro . •... - Page 16 Aerolet Manual+Installation T ilting + V ertical - C B -6 - version: 04 - Eng - March 2015...
-
Page 17: Prepair The Aerolet For A "Height" Toilet
Prepair the Aerolet for a ‘height’ toilet ® Before ordering and installing the Aerolet , the height of the toilet bowl should be measured. ® • The Aerolet can be adjusted for height toilet with installation of K adaptors. • Carefully turn the lift backwards so that frame R is off the ground. - Page 18 Aerolet Manual+Installation T ilting + V ertical - C B -6 - version: 04 - Eng - March 2015...
-
Page 19: Installing The Aerolet On A Toilet Bowl
Installing the Aerolet on a toilet bowl ( floor or wall model) WARNING ® • As the Aerolet is installed to the toilet bowl, this bowl form part of the system. Be sure that the bowl is well fixed to the floor. •... - Page 20 Aerolet Manual+Installation T ilting + V ertical - C B -6 - version: 04 - Eng - March 2015...
-
Page 21: Installing The Aerolet In Com Bination With A Bidet-System
Installing the Aerolet in combination with a shower WC (Bidet-sytem) ® The Aerolet is delivered complete with a Bidet system. Both products have been adapted to compliment each other. The combination will fit both regular and elongated bowls. To install this combination, an extra GFCI and a water supply is needed. - Page 22 Fig.1 Fig. 2 Fig. 3 ® Because of installing the Aerolet , the service covers of the Geberit WC7000 cannot be opened completely. For replacing the carbon filter T, the cover U has to be opened and removed completely by pushing it out of its hinges (see fig.
-
Page 23: Installing The Aerolet On A Geberit Bidet W C 7000-System
Installing the Aerolet on Geberit bidet WC7000 (floor or wall model) WARNING ® • As the Aerolet is installed to the toilet bowl, this bowl form part of the system. Be sure that the bowl is well fixed to the wall. •... - Page 24 Fig.1 View from above Front view Aerolet Manual+Installation T ilting + V ertical - C B -6 - version: 04 - Eng - March 2015...
-
Page 25: Installing The Aerolet On A Aquaclean8000Plus - System
Installing the Aerolet toilet lift on a Geberit AquaClean 8000 plus WARNING ® • As the Aerolet is installed to the toilet bowl, this bowl form part of the system. Be sure that the bowl is well fixed to the wall. ®... - Page 26 Aerolet Manual+Installation T ilting + V ertical - C B -6 - version: 04 - Eng - March 2015...
-
Page 27: Installing The Vertical Aerolet On A Toilet Bowl
Installing the Vertical Aerolet on a toilet bowl W ARNING As the Aerolet is installed to the toilet bow l, this bow l form part of the system. Be sure that the bow l is well fixed to the floor or w all. •... - Page 28 Fig.2 Aerolet Manual+Installation T ilting + V ertical - C B -6 - version: 04 - Eng - March 2015...
-
Page 29: Setting The Rise Of The Aerolet
Setting the rise of the Aerolet toilet lift WARNING • Lift setting should only be changed by a certified professional. Please do not attempt to change the settings yourself. Height adjustments can ONLY be made when the toilet seat is in its lowest position. •... - Page 30 Examples of height adjustments Fig.1 Fig.2 Fig.3 Aerolet Manual+Installation T ilting + V ertical - C B -6 - version: 04 - Eng - March 2015...
-
Page 31: Examples Of Height Adjustments
Examples of height adjustments Fig. 4 Fig.1 Gives an example of hinge no. 3 and different LED positions. The height and seat-angle of the seat frame changes. Fig.2 Gives an example of hinge no. 5 and different LED positions. The seat height is higher than Fig. 1 and the seat-angle stays in the same level. - Page 32 Fig.1 Aerolet Manual+Installation T ilting + V ertical - C B -6 - version: 04 - Eng - March 2015...
-
Page 33: Setting The Aerolet Arm Supports
® Setting the Aerolet arm supports (only Tilting lift) The arm supports can be only adjusted in height. On special request also in width possible. WARNING Changes to the lift settings should only be made by a certified professional. ® Unplug the Aerolet before making any changes! Before setting the arm supports, make sure that cord S comes out of the lower side of the operational arm support. -
Page 34: Troubleshooting
Troubleshooting LA = Linear Actuator / CB = Control box Symptom Possible Cause Action Power indicator does - Not connected on - Connect to m ains not light up the m ains - Replace fuse, if (see pag. 6 - no. 24) - The fuse has blown the system s is - Earth leakage... - Page 35 Symptom Possible Cause Action Actuator cannot lift - Clutch is worn - Return actuator full load - Motor is dam aged for repair Motor sound but no - Return actuator m ovem ent of piston for repair Piston rod will only - Safety nut has - Retrun actuator m ove inwards and...
- Page 36 Note Aerolet Manual+Installation T ilting + V ertical - C B -6 - version: 04 - Eng - March 2015...
-
Page 37: Note
Notes: Aerolet Manual+Installation T ilting + V ertical - C B -6 - version: 04 - Eng - March 2015... - Page 38 Manufacturer: Dealers / Sales: Patent pending Economic Holland reserve the right to technical alterations ! Aerolet Manual+Installation T ilting + V ertical - C B -6 - version: 04 - Eng - March 2015...
