Summary of Contents for alpro Vortex 48AL2400-LP Series

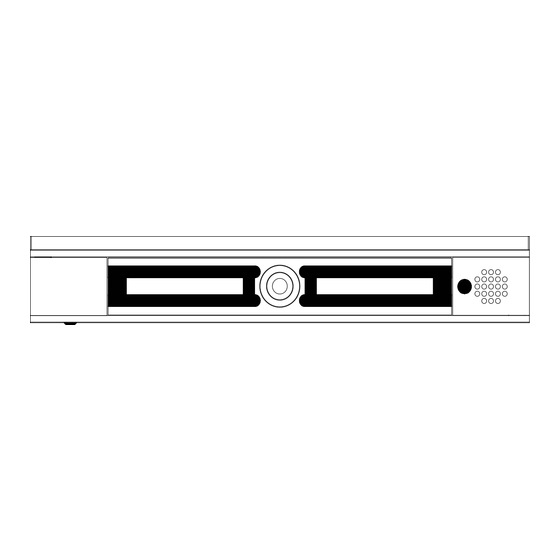

- Page 2 48AL2400-LP Series The 48AL2400-LP series are SURFACE mount mounting. The 48AL2400-LP model uses a miniature LED and a large strip LED for long distance door monitoring and smarter look (see LED feature p3). The 48AL2400-LP series needs DC and stabilised power. The voltage (measured at the lock) must be correct for the magnet to retain the armature plate with its highest holding force capacity.
- Page 3 Swivel Pin Assembly Armature plate Applied drop-wise of provided threadlockers glue to the thread of the security sleeve nut to prevent loosening NOTE: Make sure to have the rubber washer mount for absorbing shock and obtaining the required strenght. Anti-Tamper-Bracket To assure a solid locking from the magnet and its armature plate, you need to mount the latter with FLEXIBILITY with help from the rubber washer supplied.
- Page 4 Light feature 48AL2400-LP model LED light 48AL2400-LP model LED light model (Light Panel) Installation dimension Bearing sleeve nut 218.0 218.0 Armature plate 180.0 Dimension of the holes in door for locating pin is Φ 12, with a depth of 7mm 180.0 226.0 256.0...
- Page 5 Important safety precaution Secure firmly the 48AL2400-LP Mechanical Electro Magnet on the door frame.The provided screws must be used in accordance with the frame or support material. Also, the screws must be checked periodically to avoid looseness. Maintenance The surface of contact between the mechanical electro magnet and the armature plate must be kept cleaned.
- Page 6 Tel: 01202676262 - Web: www.alpro.co.uk...
