VSS Nederland DTR-600 User Manual

Digital mobile zoom camera for law enforcement
Hide thumbs

Advertisement

Quick Links

Download this manual

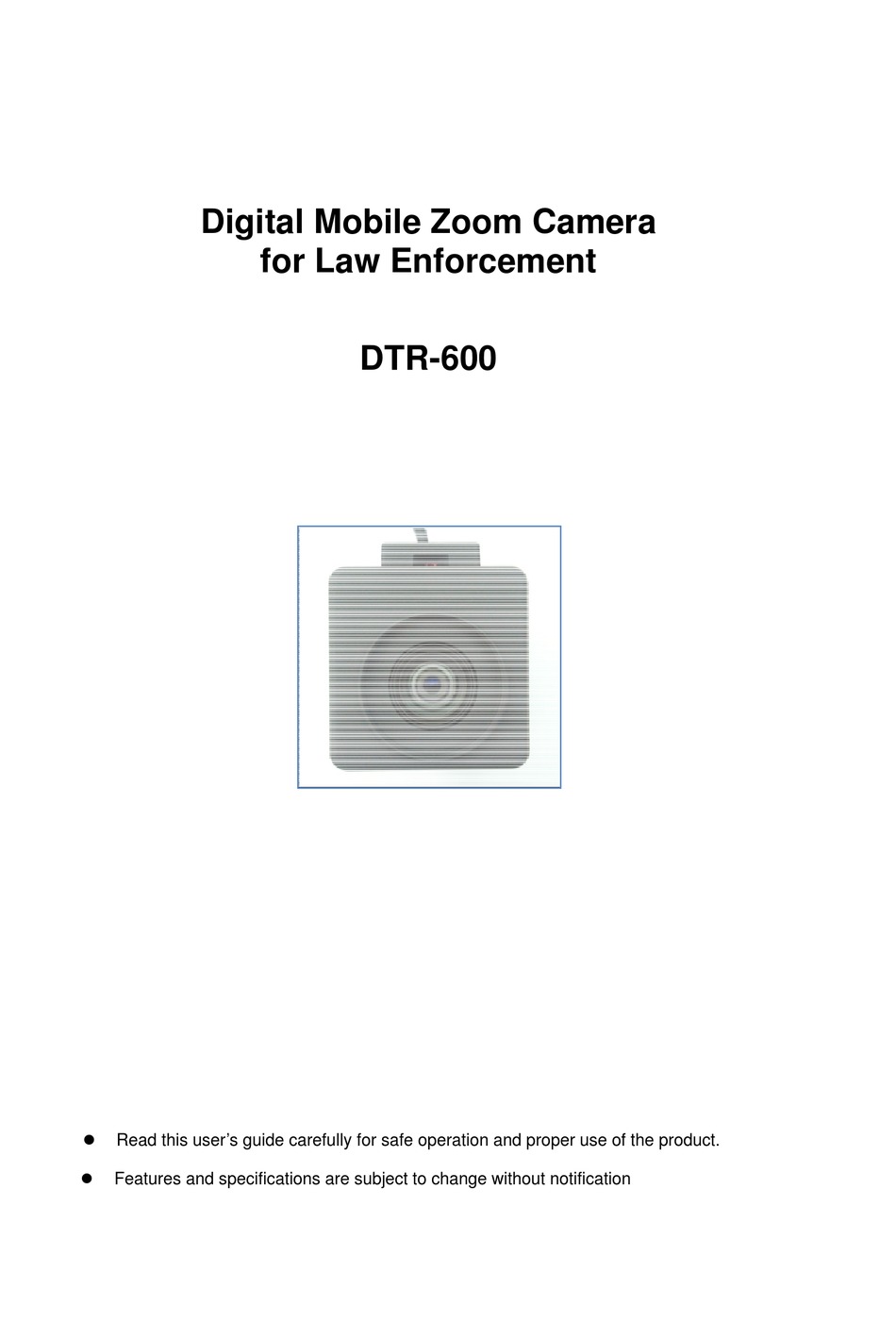

Digital Mobile Zoom Camera
for Law Enforcement
DTR-600
Read this user's guide carefully for safe operation and proper use of the product.
Features and specifications are subject to change without notification

Advertisement

loading
Need help?

Need help?

Do you have a question about the DTR-600 and is the answer not in the manual?

Questions and answers

Summary of Contents for VSS Nederland DTR-600

  • Page 1 Digital Mobile Zoom Camera for Law Enforcement DTR-600  Read this user’s guide carefully for safe operation and proper use of the product.  Features and specifications are subject to change without notification...

  • Page 2: Table Of Contents

    Index 1. Overview 2. Features 3. Pin Assignment 4. Menu Description 5. Each Function & Operation of the Control Keys 6. On-Screen Display 7. Setting the Menu 8. Specifications...

  • Page 3: Overview

    1. Overview RED LED Back Button Name Plate...
  • Page 4 2. Features 1. 1/4 type Exview HAD CCD (PS) 550 TV lines High Resolution 2. WDR (Wide Dynamic Range) Function 3. Day/Night Function, Minimum Illumination – 0.5 lx/1/60 sec (F1.4, 50 IRE) 4. 12x Optical Zoom (144x with Digital Zoom) 5.

  • Page 5: Pin Assignment

    3. Pin Assignment 4. Menu Description MENU FORMAT 5. Each Function & Operation of the Control Keys...

  • Page 6: On-Screen Display

    Speed Zoom Normal Operation : Smart Zoom – Two modes Auto / Semi Auto in the menu Auto : when the zoom key is pressed, the camera will zoom into the pre- programed position and stay for a number of seconds that is also pre-programed before zooming out to default position.

  • Page 7: Setting The Menu

    7. Setting the Menu Normal operation : When MENU key pressed it will toggle Day & Night function. Auto Mode  Day Mode  Night Mode Auto Mode  ….) The Menu consists of “Main Menu” and “Sub-Menu”. The main menu is displayed where 8 camera functions can be selected. To the right of each main selection, the sub-menu is displayed.
  • Page 8 WB(White Balance) Use to adjusts White Balance MODE : AUTO / INDOOR / OUTDOOR / ATW / MANUAL AUTO : This mode computes the white balance value output using color information from the entire screen. It outputs the proper value using the color temperature radiating from a black subject based on a range of values from 3000 to 7500K.
  • Page 9 D - ZOOM Configure magnification limit from OFF/MAX using the feature By press BLC(ENTER) button you can select OFF/MAX Mode. SPOT AE In Full Auto AE, the level for the entire screen is computed and the optimum Auto Iris and Gain levels are determined.
  • Page 10 SMART ZOOM Mode : AUTO/SEMI Zoom In : x 4 Zoom Out : x 1 Dwell Time : 10 (you can select 1~30 settings) ※ When MODE is AUTO, DWELL TIME can be change. ※ When MODE is SEMI, DWELL TIME cannot be change. ※...

  • Page 11: Specifications

    8. Specifications Specifications Image sensor 1/4-type EXview HAD CCD (PS) Effective number of NTSC : 380,000 pixels pixels PAL : 440,000 pixels 12x optical zoom lens Lens f=3.7 mm (wide) to 44.4 mm (tele), F1.6 to F2.5 Digital zoom 12x (144x with Digital Zoom) Horizontal resolution 550 TV lines Angle of view (H)
