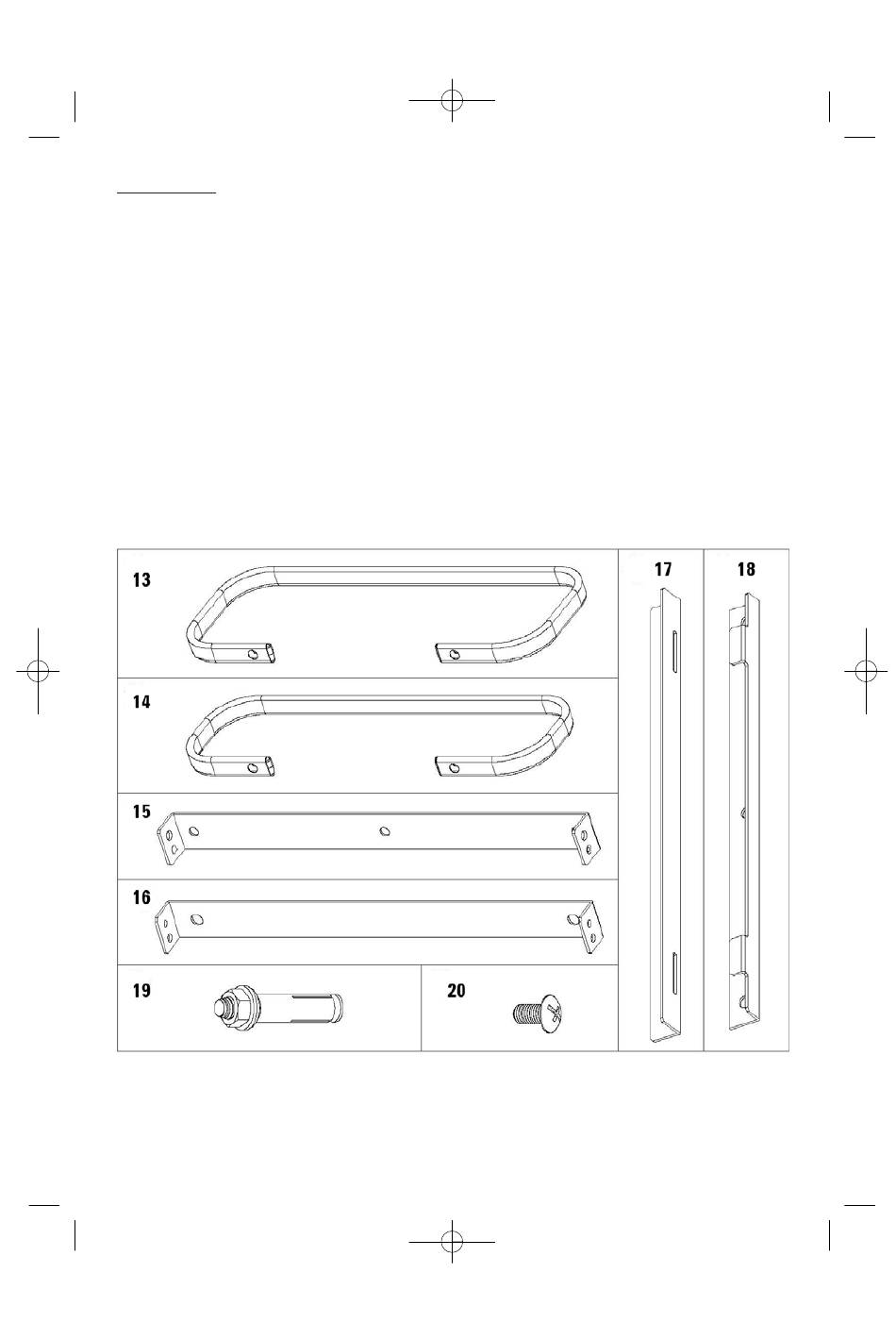

Installation kit:
13. Upper towel rack
14. Lower towel rack
15. Top wall mounting bracket
16. Top wall mounting support
17. Lower wall mounting support
18. Lower wall mounting bracket
19. Blot for wall mounting (4 blots to fix lower and Top wall mounting support)
20. Screw :
- 4 to fix towel racks (13) (14), 2 srew for each rack
- 2 to fix the " Top wall mounting bracket " (15)
- 2 to fix the " Lower wall mounting bracket " (18)
- 2 to fix " Top wall mounting bracket " (15) et " Top wall mounting support " (16) between them
