Summary of Contents for DEZEGA CARBO

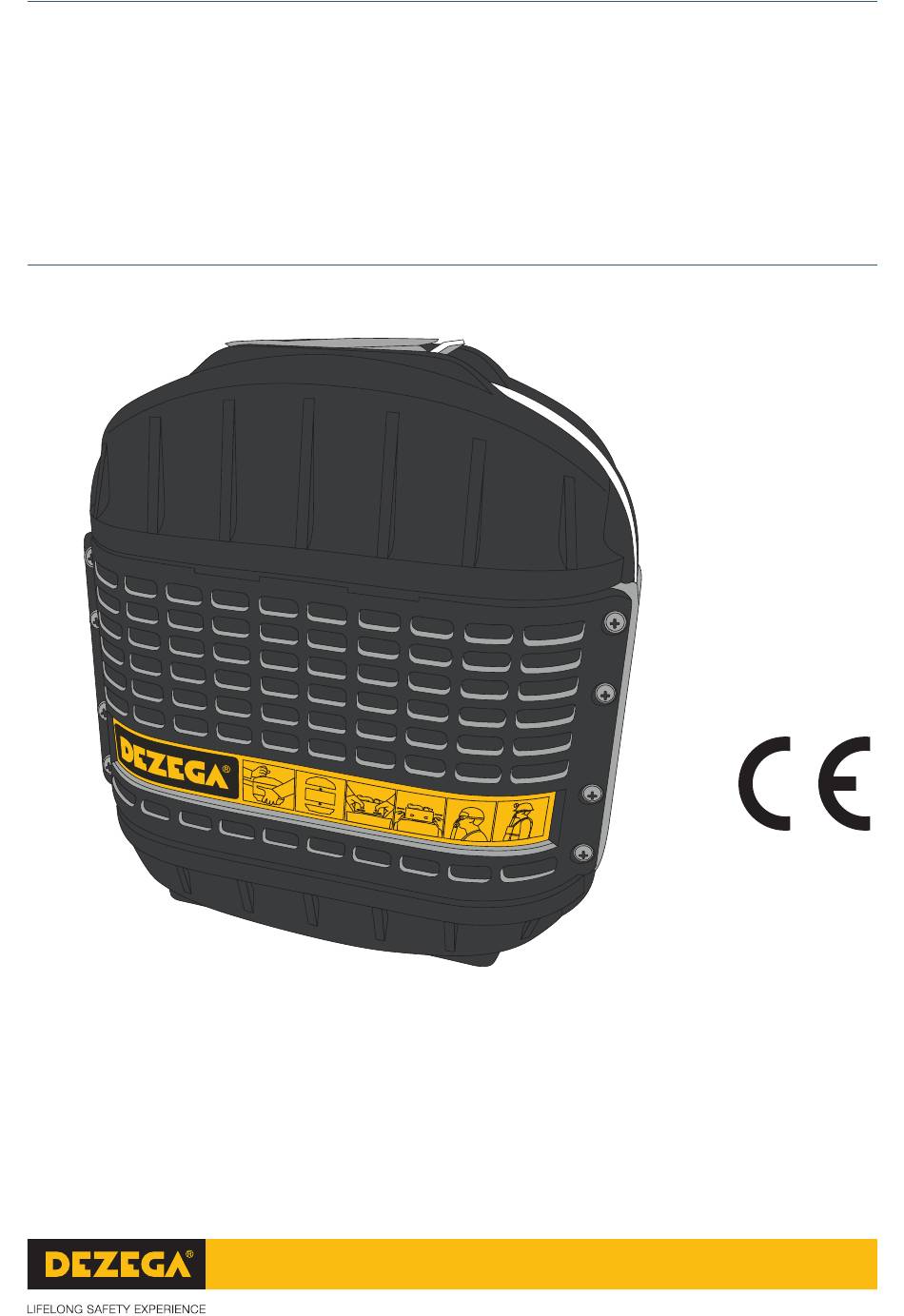

- Page 1 USER manual EN 13794:2002 0477 CARBO CHEMICAL OXYGEN SELF-CONTAINED SELF-RESCUER SKTB.02.СК5.00.00.000 РЭ-01 S-60MP1-I(N)SG-EUENEU S-60MP1-I(N)SG-AUENAU Red.26.11.2019_V5...
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION ................... 4 1. INTENDED USE ..................4 2. SAFETY PRECAUTIONS ................ 5 3. TECHNICAL DATA .................. 6 4. RECOMMENDATIONS ON PRE-OPERATION INSPECTION ....7 5. DESIGN ....................8 6. CARRYING METHODS ................9 7. RECOMMENDATIONS ON OPERATION, RECORD AND ISSUANCE ..............9 8. -
Page 4: Introduction
CAUTION! Any use of the CARBO self-rescuer requires accurate knowledge and strict compliance with this USER MANUAL (hereinafter – manual). CARBO may only be used for the purpose, described in this manual. Only in this case, the self-rescuer guarantees reliable protection of the user’s respiratory system in an emergency. -
Page 5: Safety Precautions
The device is suitable for industries with irrespirable atmosphere, including underground use. CARBO self-rescuer is not designed for use during the routine operations. CARBO is ready for immediate use. The self-rescuer has no restrictions on use related to the physiological peculiarities of the users. -
Page 6: Technical Data
SKTB.02.СК5.00.00.000 РЭ-01 DEZEGA 3. TECHNICAL DATA The key specifications of the CARBO self-rescuer are listed in Table 1. Table 1 – Key specifications of the self-rescuer Parameter name Parameter value Rated duration in accordance with EN 13794:2002 and AS/NZS 1716:2012 at lung ventilation, not less:... -
Page 7: Recommendations On Pre-Operation Inspection
• lower and top lids; • cartridge; CAUTION! If the CARBO self-rescuer does not meet at least one of the mentioned above requirements, it shall be withdrawn from the service. • belt loops and fixators; • bumpers; •... -
Page 8: Design
SKTB.02.СК5.00.00.000 РЭ-01 DEZEGA 5. DESIGN CARBO self-rescuer consists of the following components: 17 18 Figure 1 – General structure of CARBO Bottom lid 13. Top lid Starter 14. Lock lever Chest strap 15. Cover plate Breathing bag 16. Antifogging protective goggles... -
Page 9: Carrying Methods
DEZEGA SKTB.02.СК5.00.00.000 РЭ-01 6. CARRYING METHODS During everyday use the CARBO self-rescuer can be worn on waist or shoulder belts. Figure 2 – Carrying methods of CARBO Before carrying the self-rescuer during everyday use, make sure that the waist or shoulder belts are properly adjusted. - Page 10 «RECOMMENDATIONS ON PRE-OPERATION INSPECTION». It is recommended to store self-rescuers at issuance and changeover stations in the special DEZEGA RACKS, supplied under a separate order. In case of everyday carrying of self-rescuer on the waist belt, it is recommended to use special mine DEZEGA WAIST BELT, supplied under a separate order.
-
Page 11: Operating Principle
DEZEGA SKTB.02.СК5.00.00.000 РЭ-01 8. OPERATING PRINCIPLE When the CARBO self-rescuer lock lever is opened, starter activates automatically, causing start of oxygen release, as well as heat and moisture. Then the top and bottom lids should be removed and thrown aside. -
Page 12: Donning Procedure
• case shoulder carrying: move CARBO on the neck strap in front of you. • Hold the case of the device with your left hand. Using fingers of your right hand, tear off the lock lever of the... - Page 13 DEZEGA SKTB.02.СК5.00.00.000 РЭ-01 STEP 3 • Put on the neck strap of the self- rescuer on the neck. STEP 4 • Press the fixators in the direction from the centre aside against the stop with both thumbs, pick them up with your fingers on the other side, remove and throw to the floor.
- Page 14 SKTB.02.СК5.00.00.000 РЭ-01 DEZEGA STEP 5 • Lift the self-rescuer case with your left hand by the side and pull the free end of the neck strap up with your right hand to avoid tension of the breathing tube. • Pull up the heat and moisture exchanger and remove it from the fixators with your right hand.
- Page 15 DEZEGA SKTB.02.СК5.00.00.000 РЭ-01 STEP 6 • If necessary, remove the goggles from the case on the neck strap and put them on. • Put on the safety helmet with cap lamp. • Adjust the neck strap to place the self-rescuer in a comfortable position: •...
-
Page 16: Escape Rules After Donning The Self-Rescuer
SKTB.02.СК5.00.00.000 РЭ-01 DEZEGA The total time of CARBO donning should take no more 15 seconds. In order to train donning procedure, please use a training SCSR CARBO-T. 10. ESCAPE RULES AFTER DONNING THE SELF-RESCUER Leave the emergency area walking evenly. Running is not recommended, because it requires more oxygen and cause the reduction of the nominal rated duration. -
Page 17: Changeover Procedure
The CARBO self-rescuer is intended for a single activation and use only. Reusing is not allowed. 11. CHANGEOVER PROCEDURE If the rated duration of CARBO is not enough to leave the hazardous zone, it is necessary to perform changeover to the reserve SCSR. Reserve self-rescuers shall be kept at changeover stations. -
Page 18: Training
Continue escape to the place of safe. 12. TRAINING CAUTION! Training is obligatory. CARBO may only be used by trained users and users who complete practical training of donning and using SCSR. Training shall comply with the established safety requirements and recommendations stated in this manual. - Page 19 DEZEGA SKTB.02.СК5.00.00.000 РЭ-01 Daily inspection at the end of the working shift includes cleaning the self-rescuer from coal dust, visual inspection the integrity of the case and lids, as well as the integrity of all external components and parts. CAUTION! Check the presence of fixators and belt loops.
-
Page 20: Disposal
14. DISPOSAL CAUTION! SCSR CARBO is a subject of obligatory disposal. It is strictly forbidden to burn and throw away self-rescuers in public places as well as perform disposing on your own or pass them for recycling to the incompetent organizations. -
Page 21: Marking
The storage rooms should be equipped with dry-powder fire extinguishers. 15. MARKING CARBO is marked on the coupling strap, front bumper, cover plate, rear bumper, top and bottom lids with the following information: •... -
Page 22: Storage And Transportation Rules
• basic, additional and informational inscriptions. The lock lever of the CARBO self-rescue coupling straps is sealed with a special plate by the original equipment manufacturer or an authorized service centre. The plate should be kept intact until the end of SCSR service life. -
Page 23: Manufacturer's Warranty
SCSR. The warranty does not apply to self-rescuers if the integrity of the cartridge, cover plate on the fixing straps, lids and other CARBO elements is disrupted due to violation of the storage and operating conditions. The manufacturer reserves the right to change the design and technical solutions implemented in CARBO self-rescuers to improve their technical characteristics and performance properties. - Page 24 SKTB.02.СК5.00.00.000 РЭ-01 DEZEGA Manufacturer’s information: 1. DEZEGA SP GÜVENLİK ÜRÜNLERİ SANAYİ VE TİCARET ANONİM ŞİRKETİ EGE SERBEST BÖLGESİ ZAFER SB MAH. NİLÜFER SK.NO:30 GAZİEMİR, İZMİR Tel.: +90 232 251 0 394 Fax: +90 232 252 0 394 www.dezega.com info@dezega.com 2. South Ural Respiratory Protective Equipment Ltd 13 Orskoe Avenue, Gaj, Orenburg region, Russia, 462630 Tel.
-
Page 25: Annex A
DEZEGA SKTB.02.СК5.00.00.000 РЭ-01 ANNEX A List of optional components and parts for the CARBO self-rescuer Designation Name SKTB.02.CK5.00.00.006 Front bumper SKTB.02.CK5.00.00.003 Rear bumper SKTB.02.CK5.00.00.004 Waist and shoulder belt loop SKTB.02.CK5.00.00.005 Set of the fixators SKTB.02.CK5.00.00.005-01 SKTB.02.CK5.00.00.012 SKTB.02.CK5.00.00.013 Set of reflective stickers SKTB.02.CK5.00.00.014... -
Page 26: Annex B
SKTB.02.СК5.00.00.000 РЭ-01 DEZEGA... -
Page 27: Annex C
DEZEGA SKTB.02.СК5.00.00.000 РЭ-01 ANNEX C Mine registration logbook to record issuance of reserved self-rescuers for mine workers and third-party organizations. Date Personnel number, Plant number of Surname, Issuance the position, self-rescuer first name SCSR for SCSR return enterprise carrying (organization) The self-rescuer is discarded due to expiration of the specified service life under Protocol No.___________________dated ___________________...
