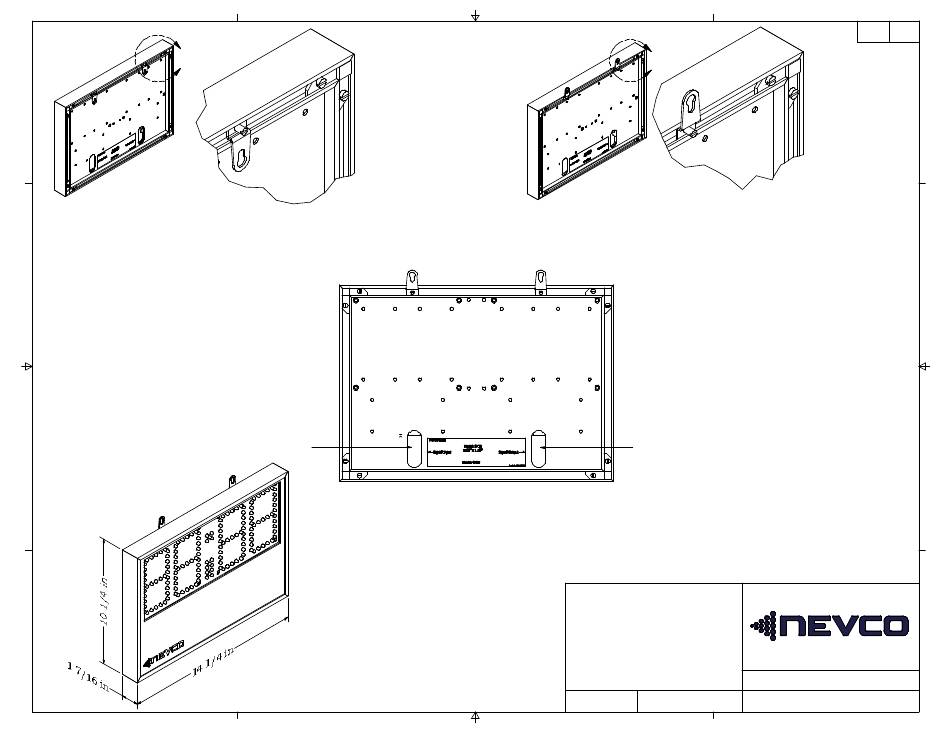

Nevco 9715 Installation

4
A
D
Clips Installed Upside Down (Hidden)
Note: Clips can be moved / installed anywhere along the edges of the frame to accommodate different installations
C
Input to 9715 clock from IAD
(Indoor Accessory Driver)
or the output from
another 9715 in the chain.
Standard straight-thru "Patch" style
Ethernet cable is used to connect
9715 clocks to IAD or other clocks
See IAD Installation Manual for
complete wiring details.
B
A
Note: Hanging weight of 9715 = 3 lbs
4
3
Note:
Max of four 9715 Locker Room Clocks
per channel of IAD. See IAD Installation
manual for complete details.
3
2
B
Clips Installed Normally (Exposed)
Optional output to next
9715 Locker Room Clock
Standard straight-thru "Patch" style
Ethernet cable is used to connect
9715 clocks to IAD or other clocks
See IAD Installation Manual for
complete wiring details.
9715 Locker
Room Clock
Installation Print
Drawing No.
Drawn Date
Sheet
MMK 1/16/12
2
1
--
Rev
D
C
B
A
Nevco, Inc.
Greenville, Illinois 62246
241-0370
of
1 1
