alfaplam ALFA TERM 20 PELET User Instructions

Central heating pellet burning cooker
Hide thumbs
Table of Contents

Advertisement

Quick Links

17500 VRANJE, SERBIA
1, Radnička Street, Tel.: 017/421-121
USER INSTRUCTIONS

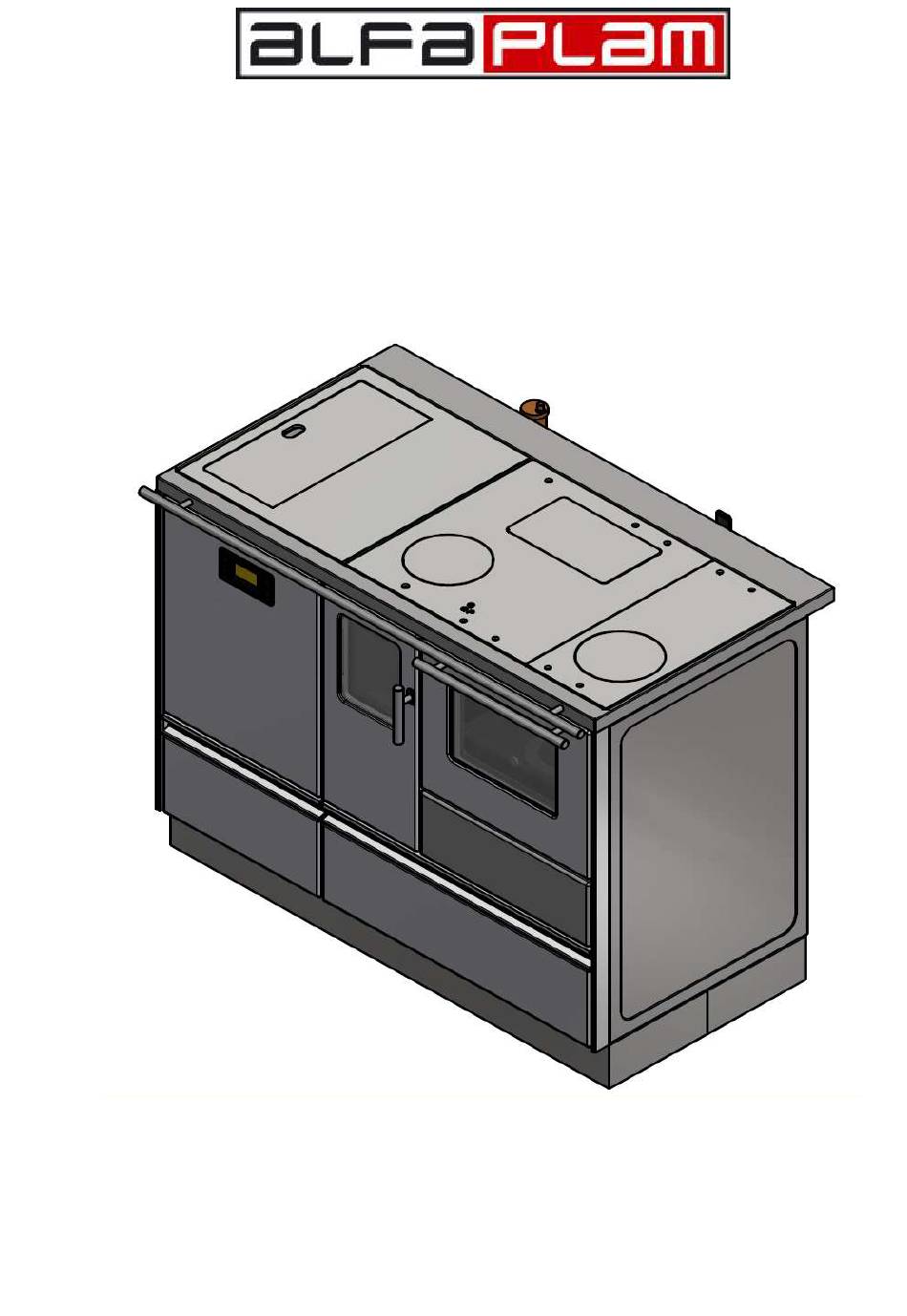

CENTRAL HEATING PELLET BURNING COOKER
„ALFA TERM 20 PELET"
Pellets → wood biomass fuel → biofuel
COOKER INSTALLATION, USE AND MAINTENANCE INSTRUCTIONS
ENG-V.1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALFA TERM 20 PELET and is the answer not in the manual?

Questions and answers

Related Manuals for alfaplam ALFA TERM 20 PELET

Summary of Contents for alfaplam ALFA TERM 20 PELET

  • Page 1 17500 VRANJE, SERBIA 1, Radnička Street, Tel.: 017/421-121 USER INSTRUCTIONS CENTRAL HEATING PELLET BURNING COOKER „ALFA TERM 20 PELET” Pellets → wood biomass fuel → biofuel COOKER INSTALLATION, USE AND MAINTENANCE INSTRUCTIONS ENG-V.1.0...
  • Page 2 0.0. TECHNICAL CHARACTERISTICS OF THE COOKER „ALFA TERM 20 PELET” 1. Cooker dimensions: - width 1100 mm - depth 600 mm - height 850 mm 2. Diameter of the flue connection 80/100 mm 3. Diameter of the air inlet opening on the outer wall 100 mm 4.

  • Page 3: Table Of Contents

    INTRODUCTION ................................1 1.1. PURPOSE ................................. 1 1.2. PURPOSE AND CONTENT OF INSTRUCTIONS ......................1 1.3. UPDATING THE INSTRUCTIONS..........................1 1.4. GENERAL ................................. 1 1.5. LEGAL WARRANTY ..............................1 1.6. RESPONSIBILITY OF THE MANUFACTURER ......................1 1.7. CHARACTERISTICS OF THE USER ..........................2 1.8.

  • Page 4: Introduction

    1. INTRODUCTION The purpose of these instructions is to enable the user to take all necessary measures to ensure the safe and proper use of the cooker. ALFA PLAM reserves the right to change the specifications and technical and/or functional characteristics of the cooker at any time, without prior notice.

  • Page 5: Characteristics Of The User

    - installation performed by unqualified and unskilled personnel, - use that is not in accordance with the safety recommendations from the instructions, - made changes and repairs for which no authorization has been obtained from the manufacturer, - use of spare parts that are not genuine or not intended for this model of cooker, - poor maintenance of the cooker, - unforeseen events.

  • Page 6: Warnings For A Maintenance Worker

     do not open the firebox door,  ensure that children do not approach the cooker,  if the power cable is damaged, it must be replaced by the manufacturer (its authorized service technician) or by a qualified person in order to avoid danger. - Observe the notes from these instructions, - Observe the notes and warnings on the plates placed on the cooker, - Plates contain instructions for preventing accidents at work, therefore they must always be completely legible.

  • Page 7: Main Parts Of The Cooker

    It is advised that several pellet bags are kept in a room where the cooker is used, or in the adjacent room due to acceptable temperature and humidity. Pay special attention to storing and moving the pellet bags. Its breaking and creating sawdust should be avoided. 3.3.

  • Page 8: Dimensions Of The Cooker

    3.4. DIMENSIONS OF THE COOKER Figure 3 4. MOVING AND TRANSPORT The cooker is delivered with all the parts foreseen. Be careful - the cooker has a tendency to overturn. The cooker’s center of gravity is shifted to the left. Take care of this even when moving the cooker.

  • Page 9: Location Of Installation Of The Cooker

    - the amount of incoming air used for combustion; - characteristics of the system for combustion products discharge; - quality of pellets (humidity and dimensions). In the following paragraphs, some notes are given that have to be observed in order to achieve the best performance of the purchased product.

  • Page 10: Smoke Extraction

    5.5. SMOKE EXTRACTION - The tubes to be used for smoke extraction must be rigid, made of aluminum sheet (at least 1.5 mm thick wall) or stainless steel (at least 0.5 mm thick wall). For lengths up to 5m, use pipes of 80mm diameter, with seals, and for lengths greater than 5m, pipes of 100mm diameter, with seals.

  • Page 11: Air Used For Combustion

    Figure 7 Figure 8 Shutter against wind Vermiculite and/or mineral wool Chimney Steel pipe Hermetic closure Cover panel Inspection opening - Check whether the connection to the chimney in the - In the case of a larger diameter chimney, it is wall is well sealed necessary to insert a properly insulated steel tube (with a - Avoid contact with combustible material (wooden...

  • Page 12: Installing

    6. INSTALLING The installer must follow the following instructions in order to properly install the cooker: - Plug in the cooker into the socket with grounding. (Figure 9) - Set the cooker switch to position 1. (Figure 10) - Do not allow the presence of children and pets near the cooker. - Use only pellets as fuel.

  • Page 13: Instructions For Safe Turning On And Cleaning The Cooker

    For proper use of the cooker it is necessary to: - use only fuel that complies with the manufacturer's instructions, - always comply with the cooker maintenance schedule, - clean the cooker daily (only when the cooker and ashes are cold), - do not use the cooker in the event of a malfunction or some irregularities in operation, in case of unusual sounds and/or if you suspect a malfunction, - do not spray or spill water on the cooker, even when extinguishing the fire,...
  • Page 14 At the same time clean the chamber with the ashtray using the vacuum cleaner. Figure 12 Figure 13 In order to remove the ashtray, it is necessary to: Ashtray box turn lock handle 90° indicated direction Lock handle (counterclockwise direction). Raise the ashtray upward and when it is Ashtray handle released from the ashtray fasteners pull it towards you (see Figure 13).

  • Page 15: Special Maintenance

    Figure 15 Flue pipes should be cleaned every day. Cleaning is done by turning the cleaning mechanism lever (Fig.1, poz.8) to the left and right with the special key from the accessories (Fig. 1, Pos. 9). CLEANING THE SPACE FOR SMOKE EXTRACTION (Figure 16) The space for smoke extraction must be cleaned every month and, if necessary, more often.

  • Page 16: Choosing Pellets

    9. CHOOSING PELLETS This cooker is manufactured to use pressed wood (pellets) as fuel. Make sure you use a high-quality pellets that are compact and dust free. Ask your vendor or manufacturer of the cooker for the best pellets, with a diameter of 6 mm, a maximum length of 30 mm and a maximum moisture content of 8-9%. The proper operation of the cooker depends on the type and quality of the pellets, since the heat obtained from the different types of pellets can be of different intensity.

  • Page 17: Pressure And Return Line

    1. Circulation pump 2. Expansion vessel 3. Return line 4. Pressure line 5. Pipe for supplying air for combustion 6. Safety valve 7. Water pressure sensor 8. Automatic air-bleed valve 9. Filling and discharging tap 10. Flue pipe connection Figure 18 10.1.

  • Page 18: Expansion Vessel (Figure 18, Position 2)

    The automatic air-bleeding valve is installed on the pressure line, behind the frame of the cooktop. Its role is to remove air from the boiler and lines. The valve cap must be slightly unscrewed so that the air flows freely from the boiler and the lines. 10.6.

  • Page 19: Control System Of The Cooker

    Feeding the storage is done from the upper side of the cooker, with the cover (Fig. 2, Pos. 19). Lift the cover and feed in the pellets. The capacity of the storage is 30kg. When the storage is filled with pellets, close the cover. - Do not remove the safety grid from the storage.
  • Page 20 Turning the cooker on/off by pressing and holding the On/Off button for more than 3 seconds after the acoustic signal When the system is in the blocked state, by pressing and Unblocking holding the button for more than 3 s after the acoustic signal, the system is unblocked Changing values Changing values and settings in menus and submenus...

  • Page 21: Menu

    code Er01 Safety thermostat activated Er02 Safety pressure switch activated Er03 Turning off due to the too low temperature of flue gases Er04 Turning off due to excessive water temperature in the boiler Er05 Turning off due to excessive flue gas temperature Er06 Safety thermostat activated on the auger housing Er07...

  • Page 22: Combustion Management Menu

    User Menu (User menu) By pressing the P3 button the User Menu is entered. P4 and P6 buttons are used to select the desired menu or submenu. Then, by pressing the P3 button the desired menu or submenu is entered. To increase or decrease the parameter value, press the P4 or P6 buttons.

  • Page 23: Heating Management Menu

    14.3.1.1 COMBUSTION POWER Menu for setting the system's combustion power in manual or automatic mode (if available). In manual mode, the user can adjust the desired combustion power by himself. Combustion Description 1-5 (Combustion power 1, 2, 3, 4 i 5) Power is set manually by selecting Power 1, 2, 3, 4 or 5.

  • Page 24: Chrono Menu

    14.3.2.1 BOILER THERMOSTAT A menu that allows you to adjust the set water temperature in the boiler. The temperature range of the water in the boiler can be adjusted from 30°C to 80°C. By adjusting the set water temperature, the boiler will operate at the set power until it reaches the set water temperature in the boiler.

  • Page 25: Manual Pellets Loading Menu

    Description of settings in the Programming menu: Selection of program Buttons Display on the screen Selected program flashes Entering submenu Choosing the desired program P4 i P6 Exit menu There are three separate types of programming. For example, if Daily program is activated, other programs remain unchanged.

  • Page 26: Manual Loading Menu

    1 4 . 3 . 5 . M A N U A L L O A D I N G M E N U This menu allows manual pellets loading when the cooker is commissioned for the first time. To perform this operation, the system needs to be in OFF state. 1 4 .
  • Page 27 Ignition The ignition stage consists of the following four sub-stages: - Preheating stage - Pellet preloading stage - Fixed ignition stage - Variable ignition stage For the entire duration of the ignition stage, the IGNITION message is shown on the display. There are no special tags for sub-stages.

  • Page 28: Possible Problems And Solutions

    In this state, the cooker is switched off, i.e. no outlet on the cooker (flue gas fan, pump, igniter and auger) is not active. Block The Block state occurs in the event of an error or an alarm. In the Block state, the exhaust fan, the auger and the igniter are off.

  • Page 29: Safety Measures

    Wait until the condition and quality During the ignition stage, cooker turns off and of the used pellets the corresponding flue gas Er12 Failed ignition of the then press the P2 temperature is not achieved Check the filthiness cooker button for more than 3 and draft in the flue seconds pipe outlet...

  • Page 30: Faults - Causes - Solutions

    When the water temperature approaches the stop temperature of 80ºC, the sensor starts the cooker to perform a series of cooling cycles or interrupts the operation of the cooker automatically by means of “ECO-STOP” to prevent the blocking of the capillary temperature sensor described above.

  • Page 31: Information On Disposal And Disassembling The Cooker

    ignite 2. Pellets probe is blocked. switch is in the “I” position. 3. Pressure switch does not work 2. Unblock the probe by influencing the thermostat (signals blockage). in the back. In case of re-blocking, replace the 4. Flue pipes or flue duct are blocked. thermostat.
