Summary of Contents for Ingeteam INGECON SUN SMART TL Series

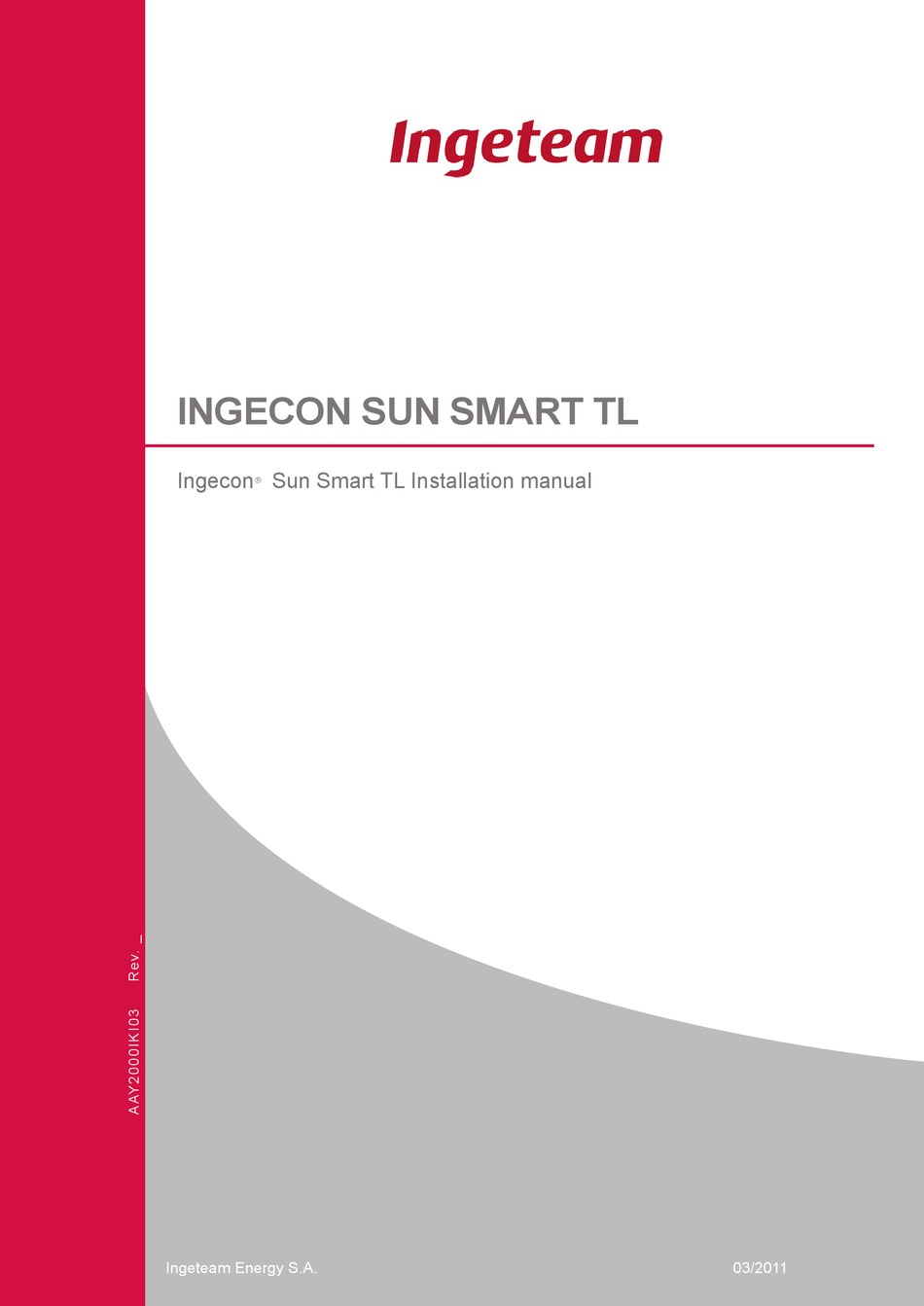

- Page 1 INGECON SUN SMART TL Ingecon Sun Smart TL Installation manual Ingeteam Energy S.A. 03/2011...
- Page 2 Installation Manual INGECON® SUN SMART TL AAY2000IKI03 The copying, circulation or use of this document or its content requires written permission. Any breach thereof will be reported for damages. All rights reserved, including those resulting from patent rights or design registration. The conformity of the document content with the hardware described has been checked.
- Page 3 Installation Manual INGECON® SUN SMART TL AAY2000IKI03 related documentation CATALOGUES ® Ingecon Commercial Catalogue Spanish (PC00ISA00), English (PC00ISA01), Italian (PC00ISA03), German (PC00ISA02), French (PC00ISA04) and Portuguese (PC00ISA05) MANUALS Ingecon Sun LITE: Ingecon String Control: Spanish (AAY2000IKH01), English (AAY2000IKI01), Spanish (AAS2002IKH01), English (AAS2002IKI01), Italian (AAY2000IKR01), German (AAY2000IKQ01), Italian (AAS2002IKR01), German (AAS2002IKQ01) French (AAY2000IKV01) and...
- Page 4 Installation Manual INGECON® SUN SMART TL AAY2000IKI03 IMPORTANT SAFETY CONDITIONS KEEP THESE INSTRUCTIONS IN A SAFE PLACE This manual contains important instructions for the installation, handling and use of the following models: INGECON SUN 10 TL INGECON SUN 12,5 TL INGECON...
- Page 5 CAUTION Required to check there is no voltage: Use Category III - 1000-Volt measuring instruments. Ingeteam Energy, S.A. is not liable for any damages caused by improper use of their equipment. AAY2000IKI03 Page 5 of 64 Rev. _...
- Page 6 Installation Manual INGECON® SUN SMART TL AAY2000IKI03 POTENTIAL HAZARDS FOR PEOPLE The main injuries to people which may result from incorrect use of the equipment are shown below: DANGER: Electric Shock. The equipment can remain charged even up to 5 minutes after disconnecting the PV array and mains power.
- Page 7 Installation Manual INGECON® SUN SMART TL AAY2000IKI03 POTENTIAL HAZARDS FOR THE EQUIPMENT The main damage that the unit may suffer due to incorrect use are shown below: CAUTION: Ventilation. The unit requires quality air flow while it is operating. Keeping the unit in the upright position and the inlets free of obstacles is essential for this air flow to reach the inside.
-
Page 8: Table Of Contents
Installation Manual INGECON® SUN SMART TL AAY2000IKI03 Table of Contents 0 Table of Contents ....................8 1 Overview ......................10 1.1 Introduction .........................10 1.2 Description of the unit ....................10 1.2.1 Models .........................10 1.2.2 Options ........................10 1.3 Compliance with regulations ..................10 1.3.1 CE marking ......................10 1.3.2 VDE0126-1-1 disconnection device .............. - Page 9 Installation Manual INGECON® SUN SMART TL AAY2000IKI03 5.2 Fixing the unit to the wall ....................25 5.3 Electrical connection ....................28 5.3.1 Description of cable inlets ...................28 5.3.2 Order of connecting the unit ................31 5.3.3 System layout ......................32 5.3.4 Connection for communication over RS485 serial line ........32 5.3.5 Connection for communication by other means ..........32 5.3.6 Mains connection ....................33 5.3.7 Connection to the PV array .................35...
-
Page 10: Overview
Installation Manual INGECON® SUN SMART TL AAY2000IKI03 Overview 1.1 Introduction The purpose of this manual is to describe the INGECON SUN SMART TL units and to give appropriate information for their correct receipt, installation, start-up, operation and maintenance. 1.2 Description of the unit An inverter is a circuit used to convert direct current to alternating current. -
Page 11: Vde0126-1-1 Disconnection Device
Installation Manual INGECON® SUN SMART TL AAY2000IKI03 To comply with each directive, it is sufficient to comply with the parts of the appropriate harmonised standards which are applicable to our equipment. 1.3.1.1 Low Voltage Directive INGECON SUN LITE TL units comply with this directive by means of compliance with the applicable parts of harmonised standard EN 50178 Electronic equipment for use in power installations. -
Page 12: System Description
Installation Manual INGECON® SUN SMART TL AAY2000IKI03 System description 2.1 Location INGECON-SUN SMART TL units can be located in practically any environment favourable for PV farms. Guidelines are provided in this section for choosing a suitable environment and adapting the unit to it properly. 2.1.1 Environment Place the units in a place which is accessible for installation and maintenance work and which permits use of the keyboard and the reading of the front indicator LEDs. -
Page 13: Atmospheric Conditions
Installation Manual INGECON® SUN SMART TL AAY2000IKI03 2.1.4 Atmospheric conditions The ambient air must be clean and relative humidity must not exceed 50% at over 40 °C. Higher levels of relative humidity, up to 95%, can be tolerated at below 30 °C. It should be borne in mind that moderate condensation may occasionally occur as a consequence of temperature variations and, apart from the unit’s own protection, vigilance of these units is necessary once they have been started up on sites where it is suspected that the conditions described above will not be present. -
Page 14: Environmental Characteristics
Installation Manual INGECON® SUN SMART TL AAY2000IKI03 In all cases there must be an unobstructed flow of air through the grills on the side of the unit. 2.2 Environmental characteristics The environmental conditions for operation are: • Minimum temperature: - 20 °C •... -
Page 15: Operating, Conservation And Transport Conditions
3.1 Safety warning Failure to follow the instructions provided in this section may lead to damage to the equipment. Ingeteam Energy S.A. accepts no liability for damage resulting from the failure to follow these instructions. 3.2 Receipt and unpacking of the unit... - Page 16 INGECON® SUN SMART TL AAY2000IKI03 The serial number of the equipment is its unique identifier. This number must be referenced in any communication with Ingeteam Energy S.A. Transport damage If the equipment has been damaged during transport: 1) do not proceed with the installation 2) notify the distributor immediately within 5 days of receipt.
-
Page 17: Handling And Transport
Appropriate transport and storage of the unit are the necessary first steps for correct use and operation. Taking that indicated at the beginning of this section into account and as a preventive measure, INGETEAM recommends the use of transport companies specialised in the transport of special and/or fragile equipment. -
Page 18: Storage
At the end of the unit’s life, the waste must be processed by an authorised waste management company. Ingeteam Energy S.A., in accordance with its policy of respect for the environment, will inform the authorised manager, via this Section, of the location of components to be decontaminated. - Page 19 Installation Manual INGECON® SUN SMART TL AAY2000IKI03 The elements within the unit that must be handled individually are: 1. Electrolytic condensers or condensers containing PCB. 2. Batteries and accumulators 3. Printed circuit cards 4. Liquid crystal displays Their location is shown in the following images. AAY2000IKI03 Page 19 of 64 19 of 64...
-
Page 20: Safety Instructions
Installation Manual INGECON® SUN SMART TL AAY2000IKI03 Safety instructions 4.1 Content This section contains safety instructions which must be followed when installing, operating and accessing the unit. Failure to comply with the “Safety Instructions” may cause injury or even death or cause damage to the unit. Read the “Safety Instructions”... - Page 21 Work on installations directly connected to overhead electricity lines must be interrupted in the case of storms. INGETEAM accepts no liability for any damages caused by improper use of the equip- ment. Any work carried out on any equipment which implies a modification of the original electrical arrangements must be proposed in advance to INGETEAM.
-
Page 22: Inspection Tasks
Installation Manual INGECON® SUN SMART TL AAY2000IKI03 4.3.1 Inspection tasks May involve opening the housing for visual inspection tasks. 4.3.2 Control tasks Tasks to load software from the communications connector. 4.3.3 Handling tasks Tasks for the mounting and/or replacement of parts (switchgear in general, arresters, etc), tasks for disconnecting and reconnecting voltage, connecting the inverters to equipment and connecting communications cabling to the equipment. -
Page 23: Personal Protective Equipment (Ppe)
Any work carried out which implies a modification of the original electrical settings must be proposed to and accepted by INGETEAM. Safety measures: Accessing the housing through any other cubicle other than that described is strictly prohibited. -
Page 24: Installation
Installation Manual INGECON® SUN SMART TL AAY2000IKI03 Installation The installation of the Ingecon Sun inverter must be performed by qualified ® personnel in compliance with the general safety instructions in this manual. The inverter handles voltages and currents that can be dangerous. Before installing the INGECON SUN SMART TL, the packaging must be removed, taking special care not to dam- age the housing. -
Page 25: Fixing The Unit To The Wall
Installation Manual INGECON® SUN SMART TL AAY2000IKI03 5.2 Fixing the unit to the wall INGECON SUN SMART TL units have a system for anchoring to the wall. To guarantee good heat evacuation and promote sealing, the units must be placed on a perfectly vertical wall or, failing this, with a slight slope of a maximum of +10°... - Page 26 Installation Manual INGECON® SUN SMART TL AAY2000IKI03 A solid wall must be reserved for fixing the inverter. Bear in mind that it must be possible to drill the wall and fit suitable wall plugs and bolts to support the unit’s weight. A fixing plate is supplied with the unit.
- Page 27 Installation Manual INGECON® SUN SMART TL AAY2000IKI03 The four upper drilled holes are made first. The measurements to be used are shown in the figure. The bottom hole must be drilled when the unit is hung on the wall. The figure also shows the approximate distances between the horizontal line formed by the four upper drilled holes and where the bottom hole will be.
-
Page 28: Electrical Connection
Installation Manual INGECON® SUN SMART TL AAY2000IKI03 5.3 Electrical connection Before opening the front door, ensure that there are no live voltages inside the cabinet. This requires disconnecting the unit from the PV array and power supply. It is also essential to close the unit before connecting it to the PV array or the mains. In inspection, control or handling tasks: Conduct an electrical test to check that neither the no part of the unit is connected electrically to the grid or any of the photovoltaic panels. - Page 29 Installation Manual INGECON® SUN SMART TL AAY2000IKI03 5.3.1.2 Connector for AC An AC bayonet connetor See ‘Mains connection’. 5.3.1.3 Quick connector for communications This is a female quick connector. A cable with a compatible connector must be connected. AAY2000IKI03 Page 29 of 64 29 of 64 of 64 Rev.
- Page 30 Installation Manual INGECON® SUN SMART TL AAY2000IKI03 5.3.1.4 Multipurpose cable gland Multipurpose cable glands can be requested as an option. If these are not requested, the plate will be supplied with its hole pre-cut to be able to open it. If the hole is opened and a cable gland is not fitted for correctly installed IP 65 units, the unit will lose its IP 65 protection rating.
-
Page 31: Order Of Connecting The Unit
Installation Manual INGECON® SUN SMART TL AAY2000IKI03 5.3.2 Order of connecting the unit The basic connections to be made with the inverter are as follows, in this order: Connecting auxiliary equipment (optional). Communication line (optional). Connecting the inverter to the grid. Connecting the DC cables from the PV array. -
Page 32: System Layout
Refer to “AAX2002IKH01 Installation Guide for Communications Devices” for how to wire correctly the male con- nectors which need to be plugged into the connector on the inverter. This connector can be supplied by Ingeteam if requested together with the unit. 5.3.5 Connection for communication by other means... -
Page 33: Mains Connection
Installation Manual INGECON® SUN SMART TL AAY2000IKI03 5.3.6 Mains connection The inverter’s metal parts (unit ground) are electrically connected to the ground pin in the grid connection quick connector. To ensure the safety of personnel, this terminal must be connected to the installation’s ground. Connection of network neutral, three phases and ground to the inverter is via a bayonet connector with five terminals. - Page 34 Installation Manual INGECON® SUN SMART TL AAY2000IKI03 an external junction box close to the inverter to make this section change is recommended. 5.3.6.1 Protection of the connection to the Electricity Grid It is necessary to install protection elements in the connection between the inverter and the Electricity Grid. Thermomagnetic circuit breaker A thermomagnetic circuit breaker and/or fuse needs to be installed in the connection from the inverter to the Elec- tricity Grid.
-
Page 35: Connection To The Pv Array
-10 °C. In the case of damage due to the DC voltage exceeding 550 Vdc, Ingeteam Energy S.A. sill accept no liability for such damage. -
Page 36: Electrical Disconnection
Installation work requiring opening the unit should be done in a dry environment, so that no moisture left inside could condense and damage the electronics. Ingeteam Energy, S.A. is not liable for any damages caused by improper use of their equipment. Page 36 of 64... -
Page 37: Commissioning
Installation Manual INGECON® SUN SMART TL AAY2000IKI03 Commissioning 6.1 Checking the unit This section contains instructions on how to make the unit work once correctly wired and closed. INGECON SUN SMART TL units manage a generating installation or part of one. The correct condition of this installation must be checked before start-up. -
Page 38: Start-Up
Installation Manual INGECON® SUN SMART TL AAY2000IKI03 6.2 Start-up Once a general visual inspection, wiring check and sealing check has been carried out, proceed to connect power to the unit while keeping it switched off, following the guidelines in the instruction manual for the unit installed. The tasks outlined for this step must be carried out with the unit door always closed, thus avoiding possible contact with live parts without IP6X protection. -
Page 39: Preventive Maintenance
Installation Manual INGECON® SUN SMART TL AAY2000IKI03 Preventive maintenance The recommended preventive maintenance tasks must be carried out at least ANUALLY, except for those which state otherwise. The various maintenance tasks must be performed by qualified personnel. Danger of electric shock. To access the various compartments, take the recommendations of the chapter on Safety Instructions into account. - Page 40 Installation Manual INGECON® SUN SMART TL AAY2000IKI03 Check the correct fixing of the cabinet components to their corresponding anchorage points. The units are cooled by forced convection using six fans (three inlet and three outlet) each capable of handling a flow of 78 m³/h.
-
Page 41: Troubleshooting
Check that no foreign bodies have entered the fan, preventing it turning. Ensure that an adequate flow of air arrives. 8.1.2.2 1 second flashing The internal fan is not working correctly. Contact Ingeteam Energy S.A. AAY2000IKI03 Page 41 of 64... - Page 42 In this situation, check that the fans are running, that the air inlets and vents are free from obstacles, and that there are no sources of intense heat near the inverter. If the problem persists, contact Ingeteam Energy S.A. 8.1.2.4 Steady light This LED indicates that an alarm has occurred in the inverter.
-
Page 43: Red Led
1 2 3 fuse 3 fuse 3 fuse 5.- If the problem persists and the check is correct, contact Ingeteam Energy S.A. 6.- Fit the three varistors in their correct position on the each card before closing the unit. 8.1.3 Red LED This is the continuously lit LED indicating that the inverter is manually stopped. -
Page 44: Display Control
Installation Manual INGECON® SUN SMART TL AAY2000IKI03 Display control INGECON SUN SMART TL inverters incorporate a display and keypad unit to interface with the installer and the user. This interface allows the display of the main internal parameters and the configuration of the entire system during installation. -
Page 45: Main Menu
Installation Manual INGECON® SUN SMART TL AAY2000IKI03 Main Menu The MAIN MENU may be accessed by pressing once on the display. The main menu contains the following submenus: 12:00 12/04/10 12:00 12/04/10 MAIN MENU MAIN MENU Change date Monitoring Start / Stop Configuration Reset partial data Language... - Page 46 E.g.: Inv Alarm = 0006H means that: The Grid Frequency and Voltage are out of range. NumInv: Number allocated to the inverter through the menu accessible in the display. Cod1: Unit operating code. This can be requested from Ingeteam’s customer services. Cod2: Unit operating code. This can be requested from Ingeteam’s customer services.
-
Page 47: Configuration
3. Given that configuration changes occur in extraordinary installation situations, the passwords are not supplied with the unit, but rather need to be requested from INGETEAM ENERGY S.A.’s Commercial Department. The menu will display only the configurations corresponding to the device hardware. - Page 48 CAUTION: Changing from any other configuration to ESPAÑA is irreversible using the instructions in this manual. Contact the Sales Department of INGETEAM ENERGY S.A. if you wish to change the configuration of any other country. When SPAIN is changed to any other Country, you will be...
-
Page 49: Nominal Grid Voltage
STOP Incorrectly marking a unit can constitute a breach of laws or regulations. INGETEAM ENERGY S.A. accepts no liability for the consequences which can result from erroneous or fraudulent marking of its units due to failure to comply with these instructions. -
Page 50: Other Adjustments
Changing the protection limits for voltage and frequency may result in failure to comply with the standards to which the original unit was certified. In this case the certificates prior to the change will be invalid. INGETEAM ENERGY SA accepts no liability for any type of problem caused by changing these limits. -
Page 51: Language
Installation Manual INGECON® SUN SMART TL AAY2000IKI03 Language Pressing once the MONITORING menu has been selected accesses this: 12:00 12/04/10 12:00 12/04/10 MAIN MENU LANGUAGE SELECTION Monitoring Español Configuration English Language German Change date Italiano French The language can be changed from this menu. Select the 12:00 12/04/10 desired language using the... -
Page 52: Start / Stop
Installation Manual INGECON® SUN SMART TL AAY2000IKI03 Start / Stop The operation of the inverter can be stopped and started manually using this menu. The Start or Stop status remains unchanged even if the unit losses its power supply. Press to toggle from one status to the other. -
Page 53: Autotest
Installation Manual INGECON® SUN SMART TL AAY2000IKI03 9.11 Autotest In some of the unit configurations there is an additional AUTOTEST submenu. In these configurations this additional submenu will appear at the end of the main menu. Press on AUTOTEST to access the menu. The first screen lets you select the phase you wish to perfrom the AUTOTEST on. -
Page 54: Kits And Accessories
Installation Manual INGECON® SUN SMART TL AAY2000IKI03 Kits and Accessories The following describes the various accessories that can be installed on units. Commu- nications kits DC discon- nect kit DC arrester AC arrester Page 54 of 64 54 of 64 of 64 AAY2000IKI03 Rev. -
Page 55: Ac Arrester Kit
When this happens, the arresters show an error message on their display screen, changing colour In these cases, INGETEAM ADVISES CHANGING THE ENTIRE ARRESTER BLOCK. 10.2 DC arrester kit SMART TL inverters may optionally have built-in overvoltage protection on the DC input. -
Page 56: Dc Isolating Switch
Installation Manual INGECON® SUN SMART TL AAY2000IKI03 10.3 DC isolating switch INGECON SUN SMART TL units can have an optional continuous DC isolator. The advantage provided by this isolator is that it can isolate under load in case of emergency. In any case, we recommend that other than in the case of an emergency, the unit be shutdown by means of the display before isolating. -
Page 57: Communications
Installation Manual INGECON® SUN SMART TL AAY2000IKI03 10.4 Communications SMART TL units are made up of three power modules. Each one has its own control card. The communications kit is shown on the module 3 control card. MÓDULO MÓDULO 2 MÓDULO The following sections describe the installation of the GPRS modem card and the ethernet card. -
Page 58: Installing A Gprs Modem
Installation Manual INGECON® SUN SMART TL AAY2000IKI03 10.4.1 Installing a GPRS modem The steps for installing the modem are as follows: 1. Fit the GPRS modem card to connectors J11 and J12 of the Module 3 control card. J4 - RS485 Bus PIN1: RS485 B(+) PIN2: RS485 A(-) PIN 4: GND... - Page 59 Installation Manual INGECON® SUN SMART TL AAY2000IKI03 3. Remove the cut-out shown in the figure and fit the BLACK M-23 gland with its nut. 4. To install the antenna, place the end of the cable with the antenna connector through the PG and to the antenna connector on the GPRS modem card.
-
Page 60: Installing An Ethernet Card
Installation Manual INGECON® SUN SMART TL AAY2000IKI03 10.4.2 Installing an Ethernet card The steps for installing the ethernet card are as follows: 1. Fit the ethernet card to connectors J11 and J12 of the Module 3 control card. J4 - RS485 Bus PIN1: RS485 B(+) PIN2: RS485 A(-) PIN 4: GND... - Page 61 Installation Manual INGECON® SUN SMART TL AAY2000IKI03 3. Remove the cut-out shown in the figure and fit the BLACK M-23 gland with its nut. 4. To install the network cable, place the end of the cable with the RJ45 through the PG and to the RJ45 connector on the ethernet card.
-
Page 62: Specifications
Installation Manual INGECON® SUN SMART TL AAY2000IKI03 Specifications 10TL 12.5TL 15TL 18TL Model Input Values (DC) Power Range Recommended PV 11.4 - 12.9 kWp 14.25 - 16.25 kWp 17.1 - 19.5 kWp 18.9 - 21 kWp array MPP voltage range 155 - 450 V 145 - 450 V 160 - 450 V... - Page 63 Installation Manual INGECON® SUN SMART TL AAY2000IKI03 NOTES AAY2000IKI03 Page 63 of 64 63 of 64 of 64 Rev. _ Date: March 2011...
- Page 64 Avda. Ciudad de la Innovación, 13 31621 Sarriguren (Navarra) SPAIN Tel +34-948 288 000 Fax +34-948 288 001 http://www.ingeteam.com Ingeteam Energy S.A. www.ingeteam.com...
