HAPTIC VEST FOR TORSO

A part of TactSuit Series

www.bhaptics.com

Table of Contents

Need help?

Do you have a question about the TactSuit Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Bhaptics TactSuit Series

Page 2 Table of Contents...
Page 3 (2) Components (3) Component Names Quick Start Guide Product Usage (1) Check Product Status (2) Product Charging (3) PLAY bHaptics Player (1) Device Pairing (2) Feedback Test (3) Audio to Haptic (4) Software Update (5) Check Device Information (6) Settings...
Page 4 Overview (1) General Information (2) Components (3) Component Names...

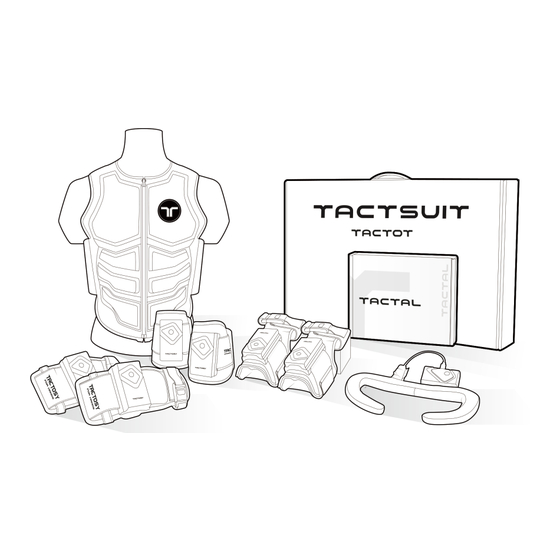

Page 6 Overview Wearable Haptic Vest TACTOT is a wireless haptic vest that delivers feedback to the upper body in real-time for a more sensations experienced in virtual content. With a total of 40 individually controllable Rear haptic motors, TACTOT precisely replicates the various sensations experienced in digital content in a way which users can actually feel.
Page 7: Basic Components
Remove the mesh lining from the body and lightly wash the lining with a mild laundry detergent. (Machine washing is allowed, however, do not use strong chemicals or detergents, such as chlorine and bleach, to wash the lining. • The latest user manual for the device and related software can be found at www.bhaptics.com/support...
Page 8 Quick Start Guide...
Page 10 [ Connecting ] In the bHaptics Player, right-click the icon of the device Once connected, the icon and LED status display will you wish to connect with and click the “Pair” button...
Page 11 Compatible Content TACTOT can be used to enjoy Natively Support Content or to add haptic feedback to Audio to Haptic Support Content with the bHaptics Player’s “Audio to Haptic” feature. When enjoying Natively Supported Content, the “Audio to Haptic” feature must be disabled to experience the haptic feedback for said content.
Page 12: Product Usage
Product Usage (1) Check Product Status (2) Product Charging (3) PLAY...
Page 14 [ Charging ] Connect the included USB cable to the main controller charging port. [ Check Battery Level ] bHaptics Player → Settings ( ) → Connected Device → Click device name → Next to the device name in the Battery level lower panel.
Page 15 For more information on various natively support content, including SteamVR for personal usage as well as LBVR for VR Arcades, please visit https://www.bhaptics.com/support Be sure to disable the “Audio to Haptic” feature. Leaving the feature on will deliver automatic feedback generated by the “Audio to Haptic”...
Page 16 Player (1) Device Pairing (2) Feedback Test (3) Audio to Haptic (4) Software Update (5) Check Device Information (6) Settings...
Page 18: Device Pairing
Player The bHaptics Player is an essential software which connects PC/laptop/mobile with a haptic device and delivers the content’s haptic feedback to the device. Feedback test, Audio to Haptic, software updates, view device information, and settings configuration panels can also be found here.
Page 19 Audio to Haptic Audio to Haptics feature on bHaptics Player allows you to enjoy every content including PC games, music and movies. This feature automatically generates real time haptic feedback based on audio signals. (1) Activate Audio to Haptic feature Click the Audio to Haptic icon.
Page 20: Software Update
) → Update → Check “Update Automatically” to automatically update when a new update is available. *Settings ( Check Device Information ) → Connected Device → Click Connect bHaptics Player to the device, then go to Settings ( device name to check detailed device information. Battery level Device Firmware...
Page 21 Settings ) → SETTING. Allows for configuration of the settings of the device and the bHaptics Settings ( Player. Stabilizes device-PC communication in environments with high Wi-Fi interference Stable Connection *Using this function will cause device communication speed to become 2 times slower.
Page 22 Appendix (1) Product Specifications (2) Support for Content Developers (3) Health and Safety Precautions (4) Product Usage Precautions (5) Product Care Precautions...
Page 24: Product Specifications
Appendix Product Specifications Product Name TACTOT BHTTT0100 Model Name Replicate and deliver stimulation through vibrotactile feedback Main Functions Total: 40 (front: 20, rear: 20) Feedback Point 26–50 inches Size (based on upper body circumference) Weight 1.7kg 15 hours Operation Time (Measured when all feedback points operating for 1 second every 10 seconds with maximum intensity.) -5–40 °C...
Page 25 Selecting the haptic feedback points displayed on the screen and setting the intensity/ length of the haptic feedback points allows developers to quickly and easily create and use haptic patterns to insert into their games without the need for coding. http://designer.bhaptics.com [ SDK ] A Software Development Kit (SDK) for both Unity 3D and Unreal Engine 4 is provided for content developers.
Page 26: Health And Safety Warnings
Appendix HEALTH AND SAFETY WARNINGS Before using the product, please carefully read this manual and the warnings below to ensure the safety of all users and to minimize the problems that may occur during using the product. Before Using the Product Please read and follow all the instructions and warnings for set up and operating of the product.
Page 27 If you have any of the following disease, please be careful about using the product. • Heart Disease If you are startled by the haptic feedback from the product, it can be hard on your heart. Therefore, please consult your doctor before use the product. Excessive tightening of the main strap may cause breath problems or seizures.
Page 28 Be sure to use accessories and parts that bHaptics Inc. provides, or get approval before using. If not, we cannot guarantee the safety of the user and we are not responsible for any damage caused by this.
Page 29 Stop using the product immediately when you have an allergic reaction to the cloths or metals of the product. The product contains magnets and Bluetooth which emit radio waves. These may affect medical devices and other electronics, and it may cause malfunction of the electronics, injury to a person, or damage to property.
Page 30: Maintenance Information
Appendix MAINTENANCE INFORMATION Keep the product in the following environment to prevent degradation of the product. • Keep the product in cool and dry place. (Recommended storage temperature: -5~40℃, 5~90% humidity) • Do not expose the product to dust, smoke or steam. • Store the product inside the packaging box when not in use. Do not allow liquid, small particles or other foreign objects to get into the product.
Page 31 For disposal of the product, please follow the disposal regulations of the place of disposal. If damaged or malfunctioning, stop use immediately and contact bhaptics official service center. Attempts to repair via unauthorized repair services may further damage the product and your warranty may become void.
Page 32 • Who is this warranty to? bHaptics issues this warranty to you, as a consumer who has purchased a new, covered product from bHaptics or an authorized retailer (“you”). This Warranty is not available to products that were purchased from any source other than bHaptics or an authorized retailer.
Page 33 Warranty Period shall be two (2) years. If and to the extent the Product needs bHaptics software or services to achieve the Warranted Functionality, we will make and keep software and services available during the Warranty Period. We may update, modify or limit such software and services in our sole discretion so long as we continue to maintain (or exceed) the Warranted Functionality.
Page 34 You may be required to pay the cost of shipping the Product to us, and by sending the Product, you agree to transfer ownership of that Product to bHaptics. When we receive the Product, we will determine if there is a defect or malfunction covered by this Warranty. If we find a defect or malfunction covered by this Warranty,...
Page 35 Product. No agent, employee, dealer, representative or reseller is authorized to modify or extend this Limited Warranty or to make binding representations or claims, whether in advertising, presentations or otherwise, on behalf of bHaptics regarding the Products or this Limited Warranty.
Page 36 Dispute, (b) a description in reasonable detail of the nature or basis of the Dispute, and (c) the specific relief that we are seeking. If You and bHaptics cannot agree how to resolve the Dispute within thirty (30) days after the date notice is received by the applicable party, then either You or bHaptics may, as appropriate and in accordance with this Limited Warranty, commence an arbitration proceeding or, to the extent specifically provided for above, file a claim in small claims court.
Page 37 • RIGHT TO OPT OUT. You may opt out of this agreement by providing notice to bHaptics no later than 30 calendar days from the date of the first consumer purchaser’s purchase of the Product. To opt out, you must send notice by e-mail to support@bhaptics.com, with the subject line: “Arbitration Opt Out.” You must include in the opt-out email (a) your name and address;...
Page 38: Fcc Warning
• NOTICE The descriptions, images and screenshots in this manual can be different depending on the device software version. • The tutorial video of HW and SW is available on official Youtube channel www.youtube.com/bhaptics • You can request repair service and check FAQ in customer support center. https://www.bhaptics.com/support...
Page 39 EU Compliance Hereby bHaptics Inc. declares that the TACTOT is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address : http://bhaptics.com/ legal IC Warning “This device complies with Industry Canada license exempt RSS standard(s).” Operation is subject to the following conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
Page 40: Component Names
Appendix ♳ BHTTT0200 Model Component Names Front Top Magnetic strap Side Strap Detachable Logo Haptic Motor Side Strap Main Strap Front Velcro Rear Top Strap Charging Port Power Button & LED Status Indicator Back Strap Rear Velcro Bottom magnetic strap...
Page 41 Product Fitting Loosen the main strap in the front and completely unzip the front zipper. After putting the product on, pull the zipper all the way Pull both sides of the main strap and adjust for proper body fitting. First attach the left strap to the front Velcro, then cover the left strap by attaching the right strap over it.
Page 42 Appendix How to Attach a Backpack PC to the Product Loosen and remove all the straps from the top and back of the product. Place a backpack PC mount on the back of the product. Fasten the top and back straps in order to firmly hold the mount in place. Wrap the bottom magnetic strap around the backpack PC mount and buckle the strap.
Page 43 Fasten the top magnetic straps. Turn the product over and fasten all the side straps of the product onto the shoulder straps of the backpack PC. Finish!
Page 44: Republic Of Korea
(2) this device must accept any interference received, including interference that may cause undesired operation. 2AJ6BBHTTT0100 Bldg 3 Unit 503 , 70, Yuseong-daero 1689beon-gil, Yuseong-gu, Daejeon, Republic of Korea (34047) bHaptics Inc. Company TACTOT Apparatus/Product Name BHTTT0100 Model Name bHaptics Inc.
Page 45 ©2019 bHaptics Inc. All rights Reserved. Trademarks • TACTOT, TACTSUIT logo, bHaptics, bHaptics logo and all other product and services names of bHaptics are registered trademarks of bHaptics Inc. • All company/product/service names, trademarks are copyright material of their respective owners. And use of those trademarks in this document doesn’t mean affiliation, copperation...
Page 46 contact@bhaptics.com...

This manual is also suitable for:

Tactsuit tactot
