Inter-m NLM-8000A Manual

NLM-8000A
Local Machine
Features
This is the analogue audio input wall mounted for MR-
8000 installed on NPX-8000. It not only broadcast a local
area, but also every area by L & R line input and micro-
phone input.

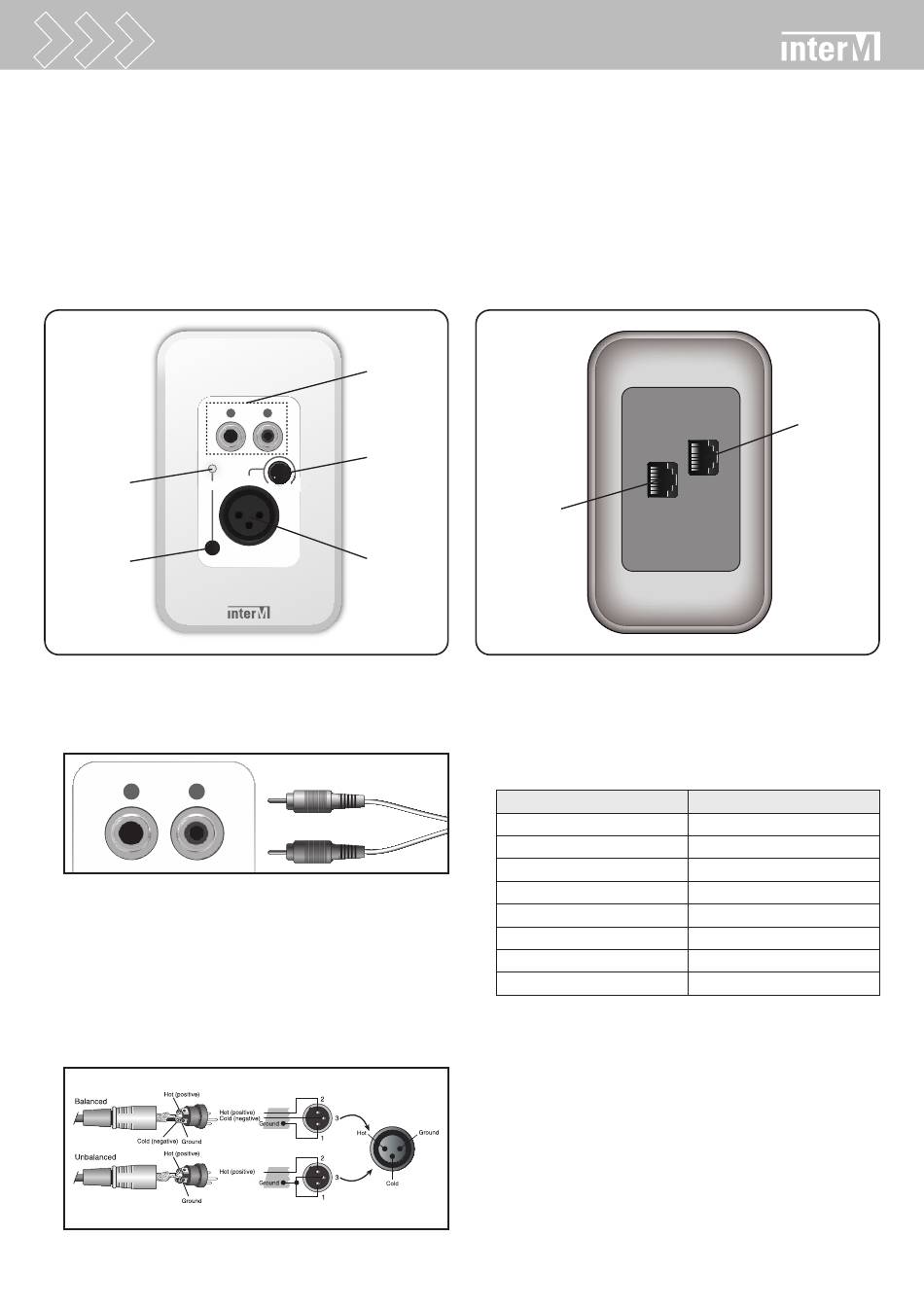

Front Panel
4
PHANTOM PHANTOM
5
1. LINE INPUT(RCA) CONNECTORS
It is RCA connectors. Refer to blow figure for suitable
cable.
LINE
L R
2. MIC GAIN ADJUST KNOB
It is knob for adjusting mic input gain (+16dB ~
+50dB)
3. MIC INPUT(XLR) CONNECTOR
This is a XLR connector for microphone input. Use
balanced cable. Refer to below figure for using un-
balanced cable.
1
LINE
L R
GAIN
2
MIC
+16 +50 +5 +50
3
XLR
4. PHANTOM POWER INDICATOR LED
It is a indicator for status of phantom power. Red
LED is on, when phantom power is turn on.
5. PHANTOM POWER SWITCH
It is a phantom power switch to supply power (+15V)
for condenser mic.
Rear Panel
2 LINK OUT
1. LINK IN PORT
It is a connector for supplying power, communica-
tion, audio line. Connect previous devices to extend
system.
< RJ 45 Pin Description >
NO
1
2
3
4
5
6
7
8
※ Use only direct cable to link with each devices.
※ It is recommended CAT 5E DCR with less than
9.8 Ω/100m.
2. LINK OUT PORT
It is a connector for communication line. When ex-
tend system, It can supply power to next device.
1
LINK IN
Description
CAN – H
CAN - L-
N.C
DC 40V
GND
N.C
Audio Out+
Audio Out-
