Lindsay Broadband LB-1000-OSW User Manual

Headend platform optical switch
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LB-1000-OSW
Headend Platform Optical Switch
User Manual
Aug 01 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LB-1000-OSW and is the answer not in the manual?

Questions and answers

Summary of Contents for Lindsay Broadband LB-1000-OSW

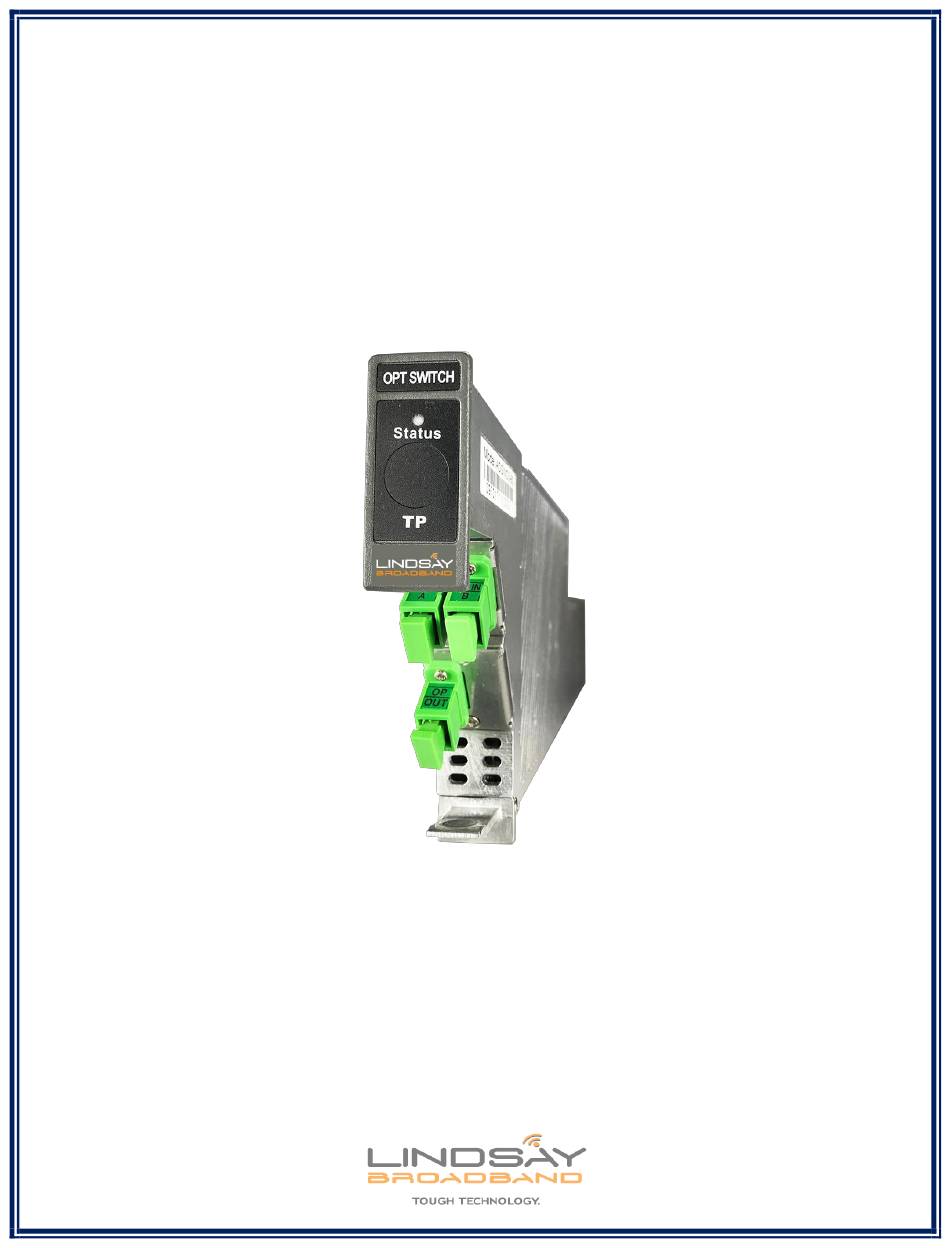

  • Page 1 LB-1000-OSW Headend Platform Optical Switch User Manual Aug 01 2019...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS ........................ ii PRODUCT OVERVIEW AND FEATURES ............... 1 Description ........................1 Features .......................... 1 Specifications ......................... 2 Block diagram of the LB-1000-OSW ................3 SAFETY NOTES ......................... 4 APPLICATION MODULE DESCRIPTION ............... 5 INSTALLATION ......................... 6 LB-1000-OSW SETTINGS ....................8 LB-1000-OSW settings: Using touch screen ............

  • Page 3: Product Overview And Features

    PRODUCT OVERVIEW AND FEATURES Description Lindsay Broadband LB-1000-OSW is an Optical Switch module designed as an integral part of the high density LB-1000 Headend system. The LB-1000-OSW optical switch is used to switch between A/B optical signals provided with both automatic and manual switching functions and characterized by simple and convenient operation.

  • Page 4: Specifications

    LB-1000-OSW User Manual Specifications PARAMETER SPECIFICATION UNIT NOTE Optical Performance Wavelength 1300 to 1620 Optical Input Power -22 to +22 Insertion Loss ≤ 1.5 Optical Return Loss > 45 Connector SC/APC In band Flatness ± 0.5 Channel Crosstalk ≥ 60 Switching Time ≤...

  • Page 5: Block Diagram Of The Lb-1000-Osw

    LB-1000-OSW User Manual Block diagram of the LB-1000-OSW Figure 1: Block diagram of the LB-1000-OSW Optical Switch 2-2035 Fisher Dr., Peterborough, ON CANADA K9J 6X6 Ph: (705) 742-1350 or (800) 465-7046 Email: support@lindsaybb.com P a g e...

  • Page 6: Safety Notes

    Failure to comply with these safety precautions and with the general or specific safety precautions described elsewhere in the LB-1000 series manual violates the safety standards of the design, manufacture, and intended use of the device. Lindsay Broadband Inc. assumes no liability for the customer’s failure to comply with these precautions.

  • Page 7: Application Module Description

    LB-1000-OSW User Manual APPLICATION MODULE DESCRIPTION Figure 2: LB-1000-OSW Front and Rear Panel Front Panel: 1. Status LED will be green when the switch module is operating normally and will be red when there is an alarm. 2. Handle to draw the application module in/out.

  • Page 8: Installation

    LB-1000-OSW User Manual INSTALLATION Application modules of LB-1000 can be installed in any of the general slots of the rack. Module is inserted into the rack from the front part. 1) Gently insert the LB-1000 application module into any general slot (labelled 01 to 18) from the front of the chassis.
  • Page 9 9) Using the touch screen or web interface via LB-1000-CM the operating parameters for the application module can be monitored and adjusted. Operating parameters and adjustments on the LB-1000-OSW are explained in the Section 5.0. 2-2035 Fisher Dr., Peterborough, ON CANADA K9J 6X6 Ph: (705) 742-1350 or (800) 465-7046 Email: support@lindsaybb.com...

  • Page 10: Lb-1000-Osw Settings

    On the home screen of the LB-1000-CM touch screen, tap/touch the corresponding application module slot (01-18) where the LB-1000-OSW is plugged in. The selected application module will be highlighted and the screen will show settings for the LB-1000-OSW optical switch.
  • Page 11 Shows the current module temperature (°C) Running Time Shows the active run time of the module Figure 5: LB-1000-OSW settings - Page 2 2-2035 Fisher Dr., Peterborough, ON CANADA K9J 6X6 Ph: (705) 742-1350 or (800) 465-7046 Email: support@lindsaybb.com P a g e...

  • Page 12: Lb-1000-Osw Settings: Using Web Interface

    On the home screen of the LB-1000-CM Web interface, click the corresponding application module slot (#1 - #18) where the LB-1000-OSW is plugged in. The selected application module will be highlighted and the screen will show settings for the LB-1000-OSW optical switch.
  • Page 13 LB-1000-OSW User Manual Figure 7: LB-1000-OSW Web Interface 2-2035 Fisher Dr., Peterborough, ON CANADA K9J 6X6 Ph: (705) 742-1350 or (800) 465-7046 Email: support@lindsaybb.com P a g e...

  • Page 14: Warranty And Rma Policy

    LB-1000-OSW User Manual WARRANTY AND RMA POLICY 2-2035 Fisher Dr., Peterborough, ON CANADA K9J 6X6 Ph: (705) 742-1350 or (800) 465-7046 Email: support@lindsaybb.com P a g e...
  • Page 15 Without an RMA Number will be Returned to Sender RMA number must be used when returning product for credit or repair. Use of RMA numbers will ensure efficient processing. When returning product to Lindsay Broadband, please follow the simple steps below (in the order that they appear): RETURNS Fill out the Product Return Authorization Form indicating product information.
  • Page 16 LB-1000-OSW User Manual Lindsay Broadband Return Material Authorization (RMA) Form Service Repair Policy Lindsay Broadband product may be Company Contact Name: returned for repair under the following Address: City: condition: Please contact Lindsay Broadband Prov/State: Postal Code/Zip: Service Dept. to obtain an RMA#.
