Summary of Contents for I-Semble PET WALL BED 52000

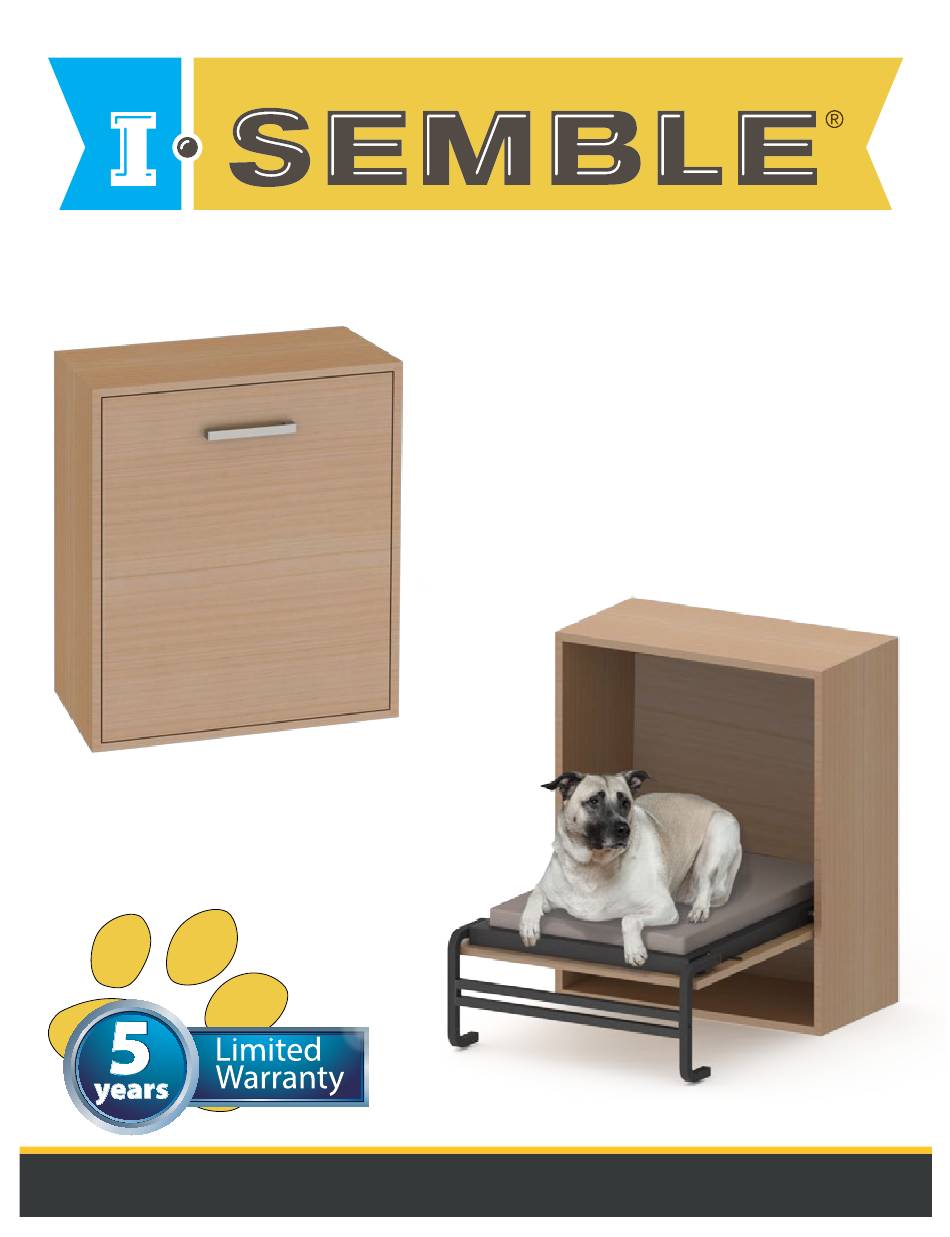

- Page 1 PET WALL BED 52000 INSTALLATION INSTRUCTIONS Rockler Woodworking and Hardware 4365 Willow Drive, Medina, MN 55340 1-8oo-279-4441...
- Page 2 HARDWARE M8 Threaded insert M8 x 16mm Screw #8 x 15mm Screw Nylon washer Piston (10kg) M5 x 10 Screw Fastener Bracket #10 x 20mm Screw #10 x 15mm Screw Wrench Allen Key (#5) Mounting bracket M5 Nut M8 x 35mm Screw M8 Locking nut Leg bar Cushion...
- Page 3 CABINET DIMENSION GUIDE All measurements are for 3/4” panels. If using a different thickness of panels, make sure to respect “internal” cabinet dimensions to ensure an optimal operation of the mechanism.
- Page 4 DRILLING GUIDE The holes should be 3/8” in diameter and 1/2” deep for threaded inserts. Side Back Front Bottom *See full sized template in product box.
- Page 5 INSTALLING THE MOUNTING BRACKETS Left side Right side x 12 x 12 Bottom Install the mounting brackets into the predrilled holes with Wood ASSEMBLING THE CABINET * See cabinet dimension guide (p. 3).
- Page 6 ATTACHING THE PISTONS TO THE FRAME Secure the longer metal ends of the pistons to the frame. This end INSTALLING THE FRAME INTO THE MOUNTING BRACKETS Place the bearing into the saddle on the mounting bracket. Secure the bearing in place with:...
- Page 7 INSTALLING THE PISTONS TO THE MOUNTING BRACKET Pivot the frame into the cabinet until the piston can be hooked onto the bracket pin. Install the other end of the pistons to the mounting brackets and secure in place with MOUNTING THE FRAME ONTO THE DOOR (PART 1) With the help of a second person, flip the cabinet onto its front and place it on top of the door panel.
-
Page 8: Installing The Door Handle
1/8” Secure the door to the frame using . Use only the frame tabs that are accessible through the back of the cabinet for Center this step. INSTALLING THE DOOR HANDLE With the help of a second person, put the cabinet upright. Attach the handle to the door (handle and hardware not included). - Page 9 INSTALLING THE LEGS Attach the legs to the frame using 2x and 1x Attach to the legs using...
- Page 10 SECURING TO THE WALL AND INSTALLING THE STOPPER Stopper Fasten into the cabinet and into the wall. Use the washers provided. Install the stopper. Ensure that it is placed far enough from the edge Needs to be secured into at least one so that the door can close flush to the front of the cabinet.
- Page 11 OPERATING ALL I-SEMBLE WALL BEDS AND PET WALL BEDS WITH NON-LOCKING PISTONS** The wall bed is assembled and shown in lowered Pivot the leg towards the inside of the unit. Make position. sure that the leg is fully closed. Pull up gently to close. The leg serves as a mattress retaining system.
