DKS 1216-080 Quick Start Manual page 2

www.leedan.com info@leedan.com Toll-Free: 800-231-1414

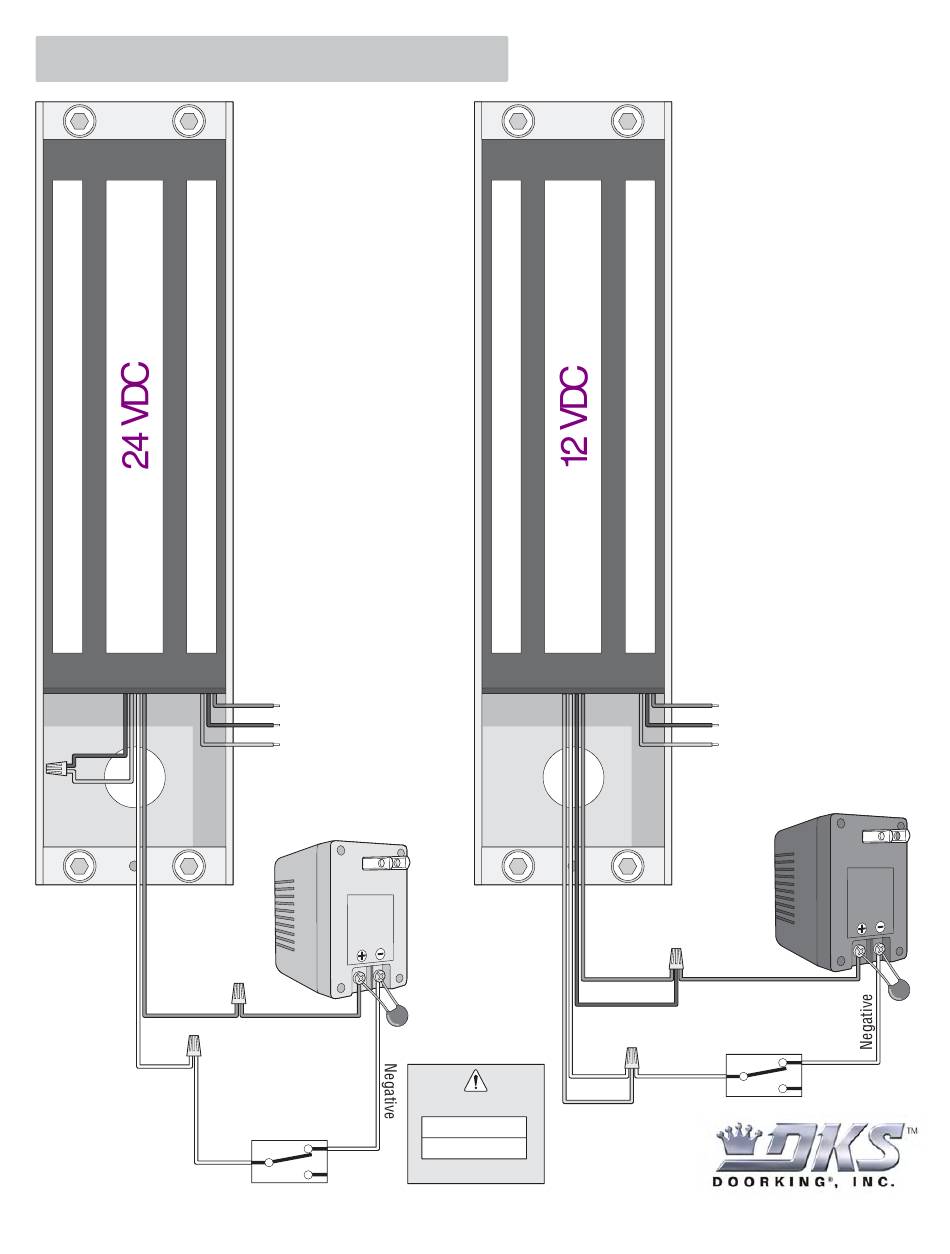

Wire for 24 VDC or 12 VDC ONLY
Black
Green
Red
White
Access Control Device
1216-065-B-4-09
MOV Note: Install the supplied
MOV across the power supply
terminals to protect the magnetic
lock from transient voltage spikes.
LED Lock Status Sensor
Relay Contacts
Rated 1 amp @ 30 Volt max.
(Model 1216-081 Only)
Red - Normally Closed
Black - Common
Green - Normally Open
24 VDC Transformer
(Model 1812-035)
Ind oo r
U se
O n ly
Positive
MOV
or Gate Operator
(Normally Closed)
Relay
Copyright 2009 DoorKing, Inc. All rights reserved.
Red
Black
White
Green
Polarity Matters!
16 AWG - 200 Ft
18 AWG - 100 Ft
12 or 24 VDC Wire Run
DoorKing Part Numbers
1216-080
1216-081
LED Lock Status Sensor
Relay Contacts
Rated 1 amp @ 30 Volt max.
(Model 1216-081 Only)
Red - Normally Closed
Black - Common
Green - Normally Open
12 VDC Transformer
(Model 1812-037)
Ind oo r
U se
O n ly
Positive
Access Control Device
or Gate Operator
(Normally Closed)
Relay
120 Glasgow Avenue
Inglewood, California 90301
MOV
U.S.A.
