Sunport Power Solar PV Flexible Modules
This manual applies to Solar Photovoltaic Flexible Modules (hereafter referred to as "Modules") manufactured by Jiangsu Sunport
Power Corp., Ltd. (hereafter referred to as "Sunport"). Professional skills and knowledge are required for the installation. Only
qualified installers after proper training can assume this job. Installers should follow all safety precautions described in this
manual as well as local codes when performing installation and maintenance.
1.INTRODUCTION
Thank you for choosing Sunport as your PV module provider.
You must read carefully and be familiar with this manual
before handling, installing, and/or maintaining. This manual
contains important information such as safety, installation,
maintenance of modules, and other relevant information.
This manual is not in a form of any types of warranty
document, expressed or implied. It does not stipulate
compensation scheme of any loss, damage or other expenses
caused by or generated during module installation, operation
or maintenance. Sunport assumes no responsibility for any
infringement of patents or other rights of third parties, which
may result from using Sunport modules. Sunport reserves the
right to make changes to its products or this manual without
prior notice.
Sunport is not responsible for any damages caused by
inappropriate installation, use, or maintenance of Sunport
modules, including without limitation damages, losses, and
expenses caused by non-observance of the instructions of this
manual or caused by or in connection with products of other
manufacturers.
Failure to comply with the requirements listed in this manual
will invalidate the Limited Warranty for modules as provided
by Sunport at the same time of sales to the direct customers.
Additional recommendations are provided to enhance safety
practices and performance results. Please provide a copy of
this manual to the PV system owner for their reference, and
inform them all relevant aspects of safety, operation and
maintenance.
This Installation and User Manual is available in different
2019.01 E/0
Installation and User Manual
Innovation Changes The World
languages. In cases of discrepancy between versions, the
Chinese language version shall prevail.
2.CODES AND REGULATIONS
The
mechanical
and
electrical installation of
PV systems should be
performed in accordance
with all applicable codes,
including electrical codes,
building
codes,
and
electric utility interconnect requirements. Such requirements
may vary for mounting location. Requirements may also vary
with system voltage, and for DC or AC application. Contact
local authorities for detailed governing regulations, acquire
confirmation and relevant permission.
3、MODULE INFORMATION

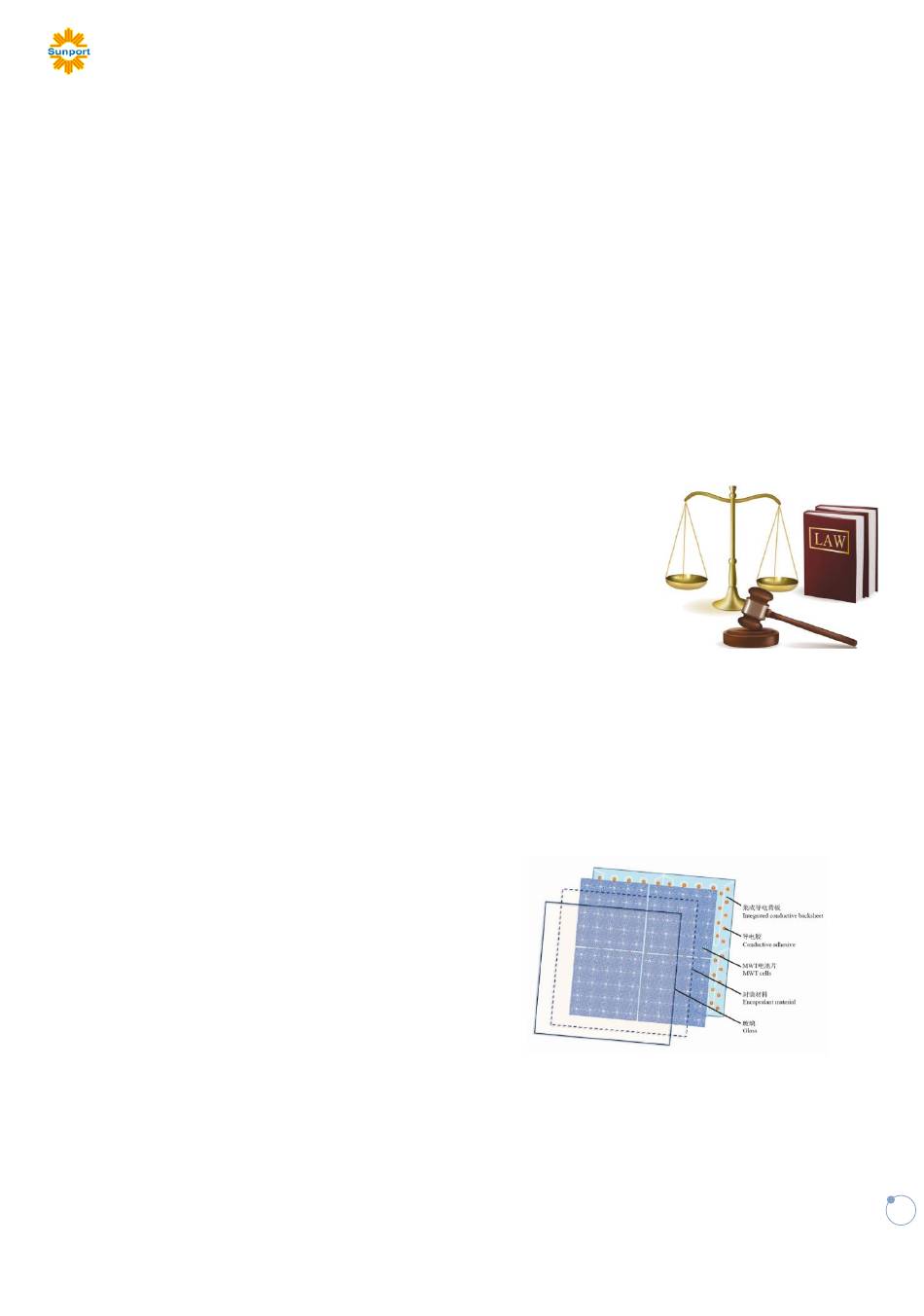

3.1 Encapsulation structure drawing
www.sunportpower.com
1
Advertisement
Summary of Contents for Sunport SPP M60S Series
- Page 1 This manual applies to Solar Photovoltaic Flexible Modules (hereafter referred to as “Modules”) manufactured by Jiangsu Sunport Power Corp., Ltd. (hereafter referred to as “Sunport”). Professional skills and knowledge are required for the installation. Only qualified installers after proper training can assume this job. Installers should follow all safety precautions described in this manual as well as local codes when performing installation and maintenance.
- Page 2 In case that no load or external 4. SAFETY circuit being connected, Sunport’s Flexible modules are designed to meet with the photovoltaic modules requirements of IEC 61215 and IEC 61730. The application produce DC electricity when class is A, meaning the modules can be used in system of...
-
Page 3: Installation
5.INSTALLATION frames or damaged back sheet unless the modules are 5.1 Installation condition Sunport’s modules must be mounted on buildings or other disconnected in advance and you are wearing proper PPE. Avoid handling modules when they are wet unless cleaning structures suitable for modules installation (e.g. - Page 4 Innovation Changes The World Cleaning the surface carefully and spreading the structural In the northern hemisphere, modules should typically face adhesive on it along the longitudinal direction of the modules. south, and in the southern hemisphere, modules should Adhesive column should roughly follow the area of 1650mm typically face north;...
- Page 5 Innovation Changes The World with dimention of 1650mm long and 8~10mm wide, 4 than values under standard test condition. When determining columns adhesive should be applied for each module. Laying module voltage ratings, conductor current ratings, fuse sizes, the modules on the treated surface (see the above picture) and and size of controls connected to the PV output, on the basis pressing gently against the tile.
-
Page 6: Maintenance And Repair
Sunport’s modules by firmly inserting the positive connector heating and performance losses. Bypass diodes are not of a module into the negative connector of a Sunport module over-current protection devices. In the event of a known or until the connector is fully seated. -
Page 7: Model Range
Dimension （LⅹWⅹH） Module type 290～320 SPPXXXM60S 1660ⅹ990ⅹ1.4 8.CONTACT Jiangsu Sunport Power Corp., Ltd. Addr.: #20 Xishi Road, Xinwu District, Wuxi, Jiangsu, China. Post code: 214028 Tel: (86) 25 5853 6911 Fax: (86) 25 5853 6911 E-mail: info@sunportpower.com www.sunportpower.com 2019.01 E/0...
