- Page 1 User Manual 2019...

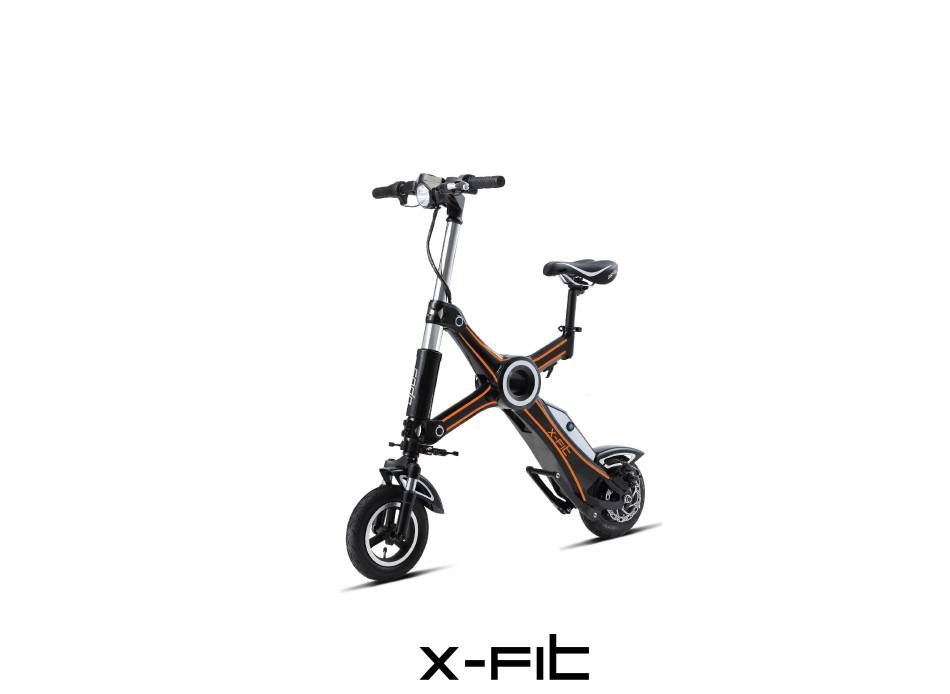

- Page 2 Our e-bike has been refined and perfected for almost 2 years by our senior designers and engineers to make it the best e-bike in its class. X-FIt has a modern design and convenient folding feature. It is very easy to operate and ride. X-Fit is an economical and practical form of portable, alternative transport, that is also environmentally friendly.
-
Page 3: Table Of Contents
Table of Contents 1. Product Diagram____________________4 2. Precautions Before Use______________5 3. Basic Parameters & Performance_______6 4. LCD Multi-Display Panel______________7 5. Electrical Wiring Diagram_____________8 6. Battery and Charger Care____________10 7. Use & Installation___________________12 8. Troubleshooting____________________15 9. Warranty__________________________16 Quality Control___________________18... -
Page 4: Product Diagram
1. Product Diagram 1. 10-inch Pneumatic Tire (air 40psi) 2. Suspension Fork 3. Shock Absorber 4. Slip Joint for Folding Function 5. Horn and Front LED Light Switch 6. Brake Levers (Disconnects Power to Motor When Pulled) 7. LCD Multi Display Panel 8. -
Page 5: Precautions Before Use
3. For riding comfort and safety, adjust the seat height to ensure that your feet can touch the ground. 4. When using your X-Fit for the first time, please ride a short distance to make sure you can handle the e-bike. -
Page 6: Basic Parameters & Performance
3. Basic Parameters & Performance Finished e-bike Battery Wheel base 30.55” Voltage 25 mile = 8.4AH L x W x H (unfolded) 40.75”*41.34”*21.65” Capacity 37 mile =11.6AH L x W x H (folded) 41.54”*23.74”*11.8” Battery core Panasonic 18650-2900PF Maximum speed 15.5 miles/h Cycle life More than 1,000 times... -
Page 7: Lcd Multi-Display Panel
4. LCD Multi-Display Panel LCD Display Panel ▶ LED Headlight ▶ Speedometer Temperature Display ▶ ▶ Remaining Battery Meter Odometer/Tripometer Display ▶ ▶... -
Page 8: Electrical Wiring Diagram
5. Electrical Wiring Diagram... - Page 9 Wiring diagram for controller (general set)
-
Page 10: Battery And Charger Care
6. Battery and Charger Care IMPORTANT Battery description The battery is located in the frame of the Fully-charged 41.5v e-bike underneath the charging port area. Do voltage not attempt to disassemble the battery Undervoltage compartment, or try to connect positive to protection negative. - Page 11 PRECAUTIONS 1. Please ONLY use the original charger to charge the X-Fit. If a third party charger is used, it may cause fire, battery explosion, or other dangerous hazards. It will also invalidate your warranty. 2. Input voltage and output voltage are 110v and 42v respectively. The charger connector has 1 positive electrode and 3 negative electrodes.
-
Page 12: Use & Installation
7. Use & Installation: Alarm, GPS, Handlebar & Folding Using the Anti-Theft Alarm The mechanical lock is used if your key fob becomes lost or broken. Please keep your spare physical key and extra key fob in a safe place. - Page 13 A back into the same hole. Tighten using the included allen wrench. Once you have tightened the screw, stand in front of the X-Fit and align the handlebars and front wheel so they are straight. Now tighten the two side screws B...
- Page 14 Folding System...
-
Page 15: Troubleshooting
8. Troubleshooting If one of the following occurs, use this checklist to troubleshoot the issue: BATTERY CANNOT BE CHARGED MOTOR DOES NOT ROTATE 1. Charger connector is loose. 1. Motor joint became loose. 2. Charger is damaged. 2. Battery may be too low. 3. -
Page 16: Warranty
EVRY. WHAT WILL WE NOT DO? EVRY will not replace any part without first seeing photos or video of the damaged part. We will not offer warranty service to... - Page 17 This warranty only applies to the original owner of an EVRY bicycle. This warranty is expressly limited to the replacement of defective parts at the sole discretion of EVRY. This warranty does not cover any damage or defects resulting from failure to follow instructions in the owner’s manual, accident, misuse, neglect, abuse, commercial use, alterations, modification, improper...
-
Page 18: Quality Control
10. Quality Control This X-Fit was tested prior to packing, and has passed quality control inspections. The final product was approved to leave the factory for distribution.
