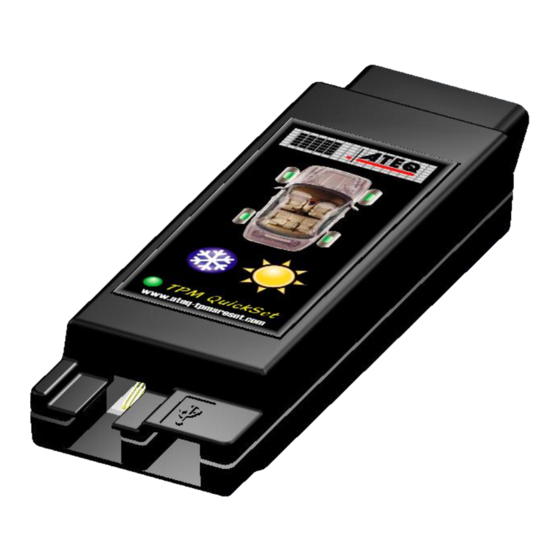

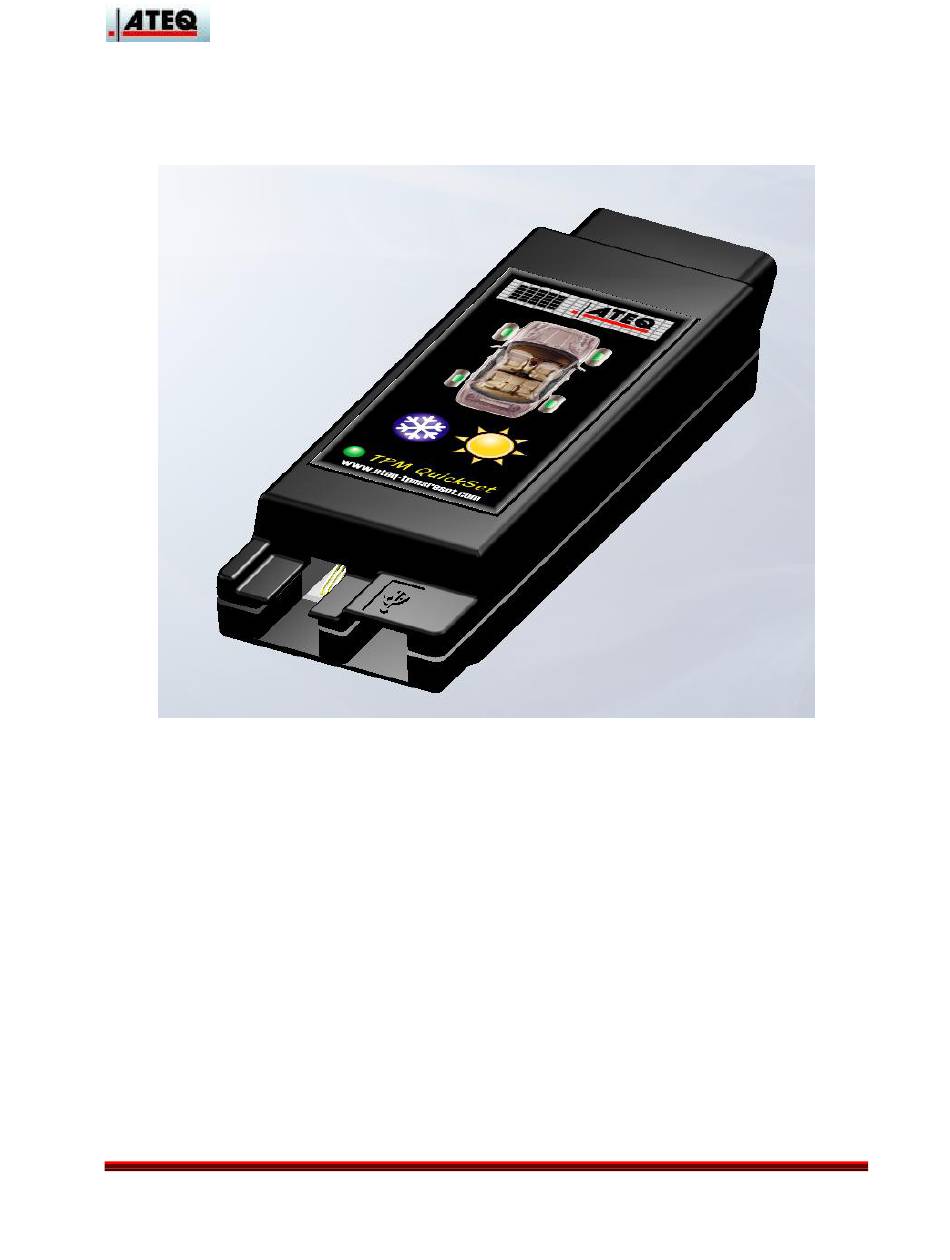

- Page 1 TPM QUICKSET USER MANUAL NEW SMART TPMS RESET DIY TOOL RESET YOUR TPMS FROM HOME TPM QuickSet Installation Guide 2009 - 1 –...
-
Page 2: Table Of Contents
TABLE OF CONTENTS LEGAL NOTICE ........................3 INTRODUCTION ........................4 WHAT IS TPM QUICKSET? ....................5 COMPANY PROFILE ......................6 KIT COMPONENTS AND INSTRUCTIONS ............... 7 QUICKSET OVERVIEW ......................8 ... -
Page 3: Legal Notice
The right is reserved to make changes at any time without an obligation to notify any person or organization of such revisions or changes. Further, ATEQ shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material. -
Page 4: Introduction
INTRODUCTION Congratulations on your purchase of the TPM QuickSet. This is a valuable tool to help you maintain the Tire Pressure Monitoring System (TPMS) when replacing sensors or swaping tire sets on your vehicle. The ATEQ TPM QuickSet is designed to reset your Tire Pressure Monitoring System after changing two sets of tires, for instance winter to summer, or when one or more tires has been replaced. -
Page 5: What Is Tpm Quickset
WHAT IS TPM QUICKSET? THE TPM QUICKSET IS THE NEW DO-IT-YOURSELF TOOL THAT ALLOWS CAR OWNERS TO REPROGRAM THE TPMS BY THEMSELVES!! Features QUICKSET Compatible with future applications. (Internet upgradable) Advanced stream decoding for faster signal recognition ECU reprogramming extension... -
Page 6: Company Profile
COMPANY PROFILE ATEQ is the first company in the world to introduce the full range of TPMS instruments for industrial and individual users. ATEQ is the only brand you can trust when it comes to TPMS Reset Tools. With the background of working with car manufacturers’... -
Page 7: Kit Components And Instructions
KIT COMPONENTS AND INSTRUCTIONS Recommended system configuration for installing and running TPM QuickSet on a PC: Operation System: Windows XP or Windows Vista. ⇒ Processor: Pentium ≥ 333 MHz or faster. ⇒ RAM: 512 MB or above. ⇒ Hard disk space: ≥ 30 MB. -
Page 8: Quickset Overview
QUICKSET OVERVIEW Install TPM QuickSet Software and USB Driver. Follow the step-by-step instructions to select your vehicle. Select “Summer” and/or “Winter” set and enter your tire pressure sensor ID numbers. TPM QuickSet Installation Guide 2009 - 8 –... -
Page 9: Software Setup
Before launching installation program, the USB cable must be plugged into the TPM QuickSet box and to your computer. If not, or if any component is missing, click on Cancel to stop the installation. The default installation folder is chosen by your system. - Page 10 If your TPM QuickSet is not recognized by your system, cancel the installation and re-launch the installer. If your TPM QuickSet device is still not recognized by your system, please contact us for further assistance. TPM QuickSet Installation Guide 2009...
-
Page 11: Main Functions
Warning! On the TPM QuickSet Basic version, after choosing a car model, and successfully reading your car information, you can’t choose a new model. The TPM... - Page 12 Warning! Data will be cleared once the is clicked. Power OFF button: At any time you want to close the program, please click on the green button to end the operation. TPM QuickSet Installation Guide 2009 - 12 –...
-
Page 13: Startup
2 minutes from launching the program, check if the previous steps have been completed. 2. The computer will begin the initialization of the setting up for the TPM QuickSet PC program. If this message does not appear, ensure that the device is properly connected. - Page 14 5. If your software version is not up to date, you will be asked to update it. By clicking “OK” you will launch the update process. This will close the TPM QuickSet program and will launch the TPM QuickSet Update tool. By clicking “Ignore” you will prevent the TPM QuickSet program from lauching the Update tool.
-
Page 15: Car Selection
2. If you have more than one car (up to 4) for you and your family, you can still use the same TPM QuickSet for all your cars! For each car, you can select a new car model, and give it a name by clicking the “Type name”... -
Page 16: Car Plug In Step
II. Car Plug in step 1. When seeing this screen, please disconnect the TPM Quickset device from your PC and read the instruction carefully. Warning! The TPM QuickSet device MUST be disconnected from PC at this step. Failure to disconnect will cause damage to the device. - Page 17 OBD II connector (Location of OBDII connector varies from model to model. Please refer to your owner manual to find the location). A flashing green TPM QuickSet LED light • confirms the communication has been successfully established. Press either summer or winter button on •...
-
Page 18: Car Selection Last Steps
4. Select Summer mode or Winter mode to save the TPM sensor data retrieved from the vehicle ECU. Warning: If your car TPMS Warning light is flashing, the data you have retrieved may not be correct. TPM QuickSet Installation Guide 2009 - 18 –... -
Page 19: Entering Identifiers
1. Click on the tire to enter the ID number provided by your sensor supplier on each tire. Tire color will change from red to blue . Confirms the sensor ID number has been stored. 2. Enter sensor information carefully. TPM QuickSet Installation Guide 2009 - 19 –... - Page 20 “confirm” to continue. 5. This screen confirms the data has been stored successfully. Read carefully and follow the instruction displayed to complete the TPMS reprogram procedure. TPM QuickSet Installation Guide 2009 - 20 –...
-
Page 21: Loading Old Configuration And Reseting
Click to erase the data. • Click allows you to • load the data you wish to use. Note: The device could hold up to 4 sets of sensor information. TPM QuickSet Installation Guide 2009 - 21 –... -
Page 22: Tracking Records After Swapping Tires
Sensor information will be switched to the designated position by pressing the corresponding button on your TPM QuickSet software. The information will not be changed and stored until you go back to “To TPM Quickset” and click “Confirm. ” TPM QuickSet Installation Guide 2009... - Page 23 Change any tire location by moving the mouse. A confirmation message will appear to cancel the latest choice. Click “OK” to confirm the rotation that has been operated. TPM QuickSet Installation Guide 2009 - 23 –...
-
Page 24: Troubleshooting
For safety reasons, you should close the start over. program, unplug and re-plug the TPM QuickSet USB cable, and restart the program. To get out from this error screen, just A communication error is happening. Please click “OK”... -
Page 25: Customer /After Sales Service
If the given information provided in this menu does not resolve the issue, please visit our website to find the contact information for further assistance. Do not hesitate to contact ATEQ’s engineers if you are using languages other than English. Visit our website http://www.ateq.com/ATEQ_Contact.html... -
Page 26: Warnings
Do not activate the TPMS box more than 5 minutes before launching the complete • set-up. Do not forget to activate the handbrake before any manipulation, and turn on the key • on accessories mode only. TPM QuickSet Installation Guide 2009 - 26 –... -
Page 27: Certification And Garantee
CERTIFICATION AND GARANTEE TPM QuickSet Installation Guide 2009 - 27 –...
