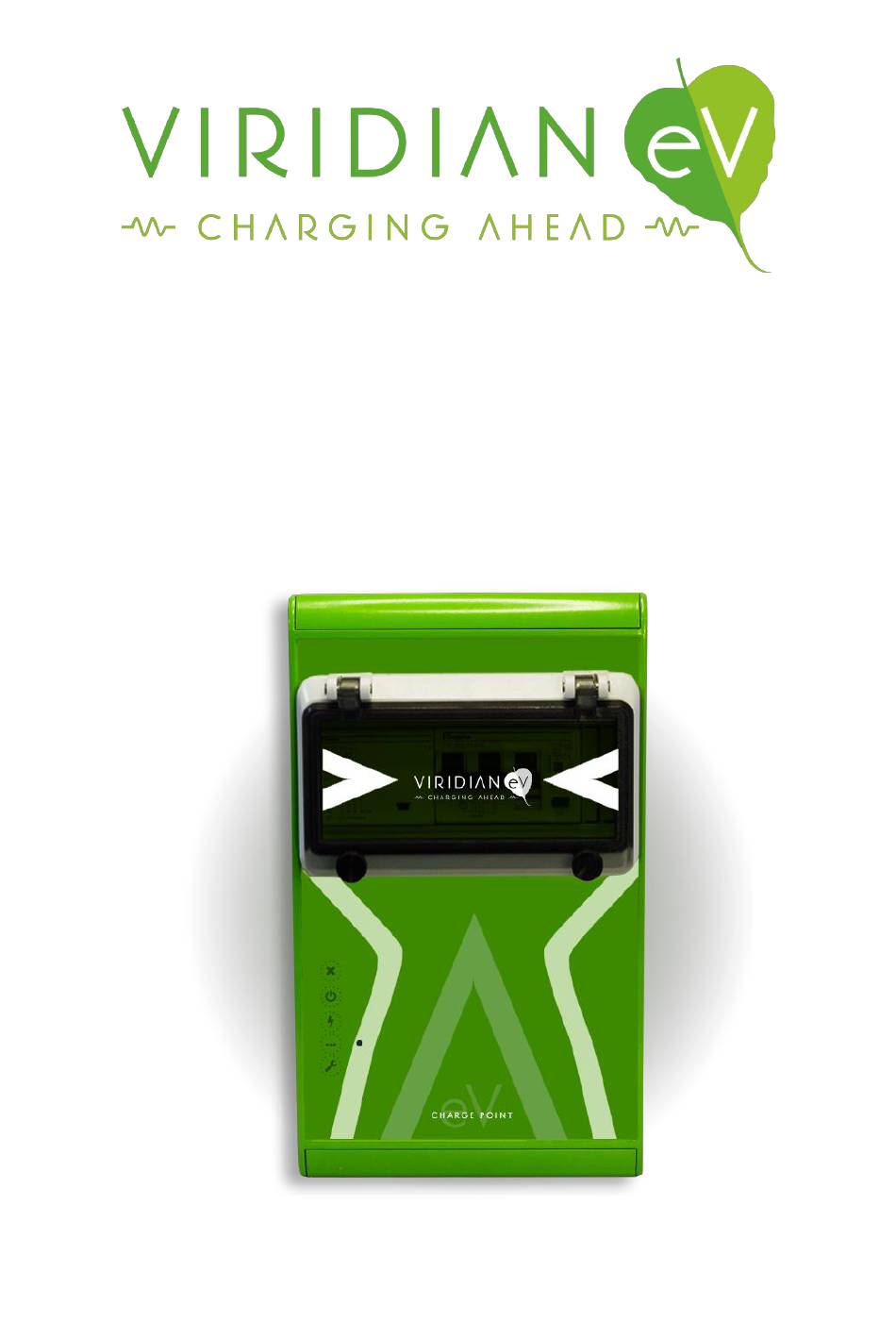

- Page 1 Guidance to Installers of Viridian EV charge points...
- Page 2 Page 2 of 9 This guide is intended to instruct in the proper installation of a Viridian EV charge point. Please note that when installing this equipment care must be taken to ensure that all local and national safety and planning requirements are met.
- Page 3 Iss 8 - Mar 2019 Page 3 of 9 WARNING The charge point is designed for electric vehicle (EV) charging only. It is designed to only allow the flow of electricity once an EV is connected and correct communication is established. Any tampering of the charge point to allow the flow of electricity at any times other than this will present a risk of electric shock.
-
Page 4: Internal Components
Iss 8 - Mar 2019 Page 4 of 9 Model Number Charging Current Serial Number Fig. B - Identification label breakdown Mounting of the charge point The charge point should be mounted vertically on either a post or a wall. The position of the charge point should allow all main functions of the charge point to be accessible between 750mm and 1200mm of the ground in accordance with BS8300:2009, unless otherwise instructed not to. -
Page 5: Installation Method
Iss 8 - Mar 2019 Page 5 of 9 Installation method DANGER Installation requires access to the properties electrical consumer unit. Ensure that power to it is isolated before commencing any work. WARNING Due to the high and constant current draw, the charge point must be installed on a dedicated spur within the consumer unit. - Page 6 The customer receives your contact details in case of any issues that may arise within the warranty period. (A space has been provided at the back of the User Guide for Viridian EV Charge point leaflet) o For OLEV installations: A note is taken of the Emlite meter serial number and the charge point serial number (optionally: the customer’s name and address).
-
Page 7: Service And Maintenance
Iss 8 - Mar 2019 Page 7 of 9 Service and maintenance DANGER Contact with live components can result in serious injuries. Isolate the power before commencing any work. THERE ARE NO USER SERVICEABLE COMPONENTS WITHIN THIS CHARGE POINT. Please note that even though every care has been taken to select only the highest quality components, in the event that you should experience problems with this unit servicing should only be carried out by a suitably qualified individual. - Page 8 Iss 8 - Mar 2019 Page 8 of 9 -- -- THIS PAGE INTENTIONALLY LEFT BLANK-- --...
- Page 9 Iss 8 - JUL 2015 Page 9 of 9 Viridian EV Units B & C, The Mallards, South Cerney, Cirencester, Gloucestershire GL7 5TQ Tel: +44 (0)177 230 7172 Web: www.viridianev.co.uk Email: info@viridianev.co.uk Viridian EV is a trading name of EcoHarmony Ltd.
