TECHNYLIGHT TRIDENT 450 Manual

Tri-color laser show system
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
T
TECHNYLIGHT
Entertainment Lighting Effects

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRIDENT 450 and is the answer not in the manual?

Questions and answers

Summary of Contents for TECHNYLIGHT TRIDENT 450

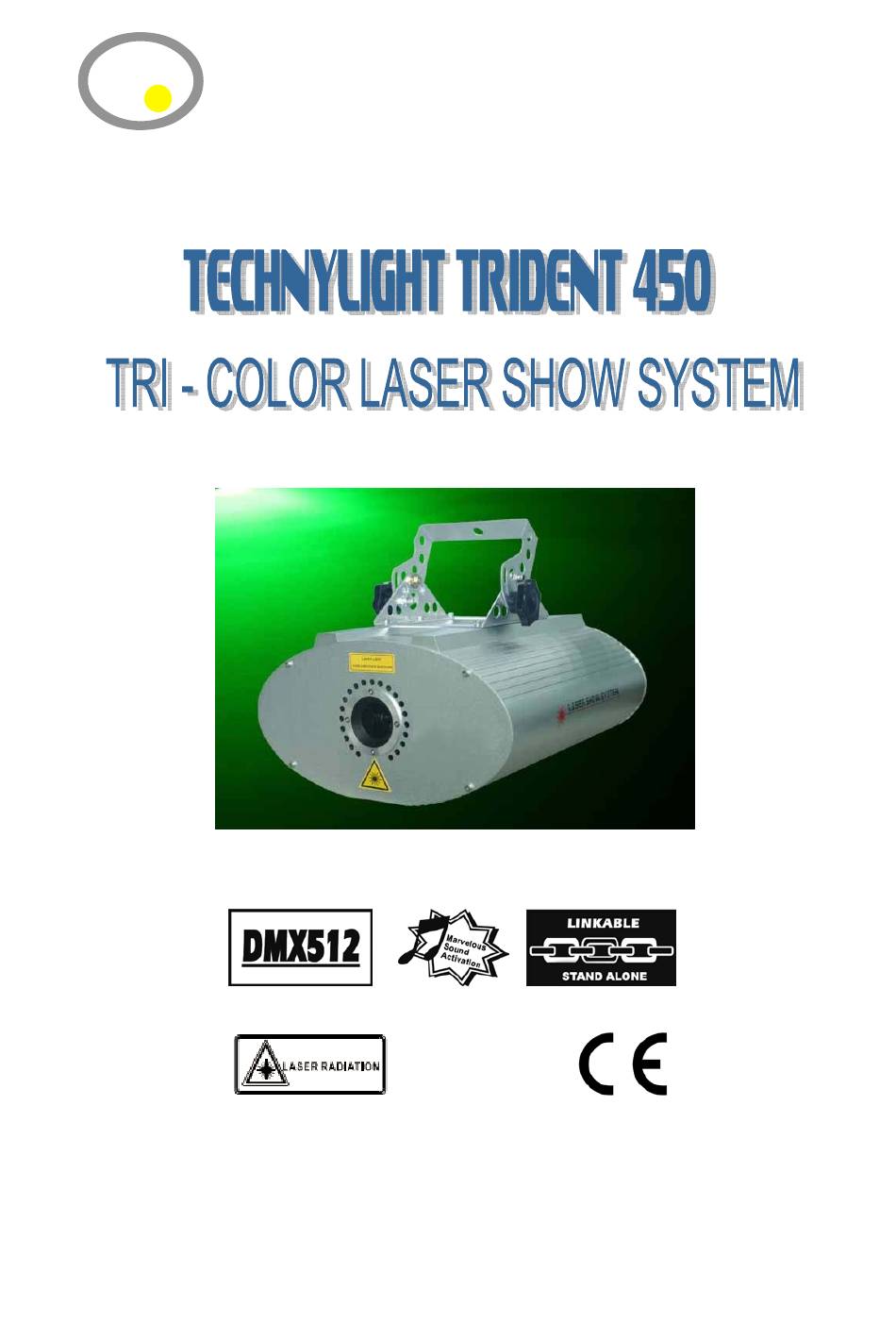

  • Page 1 TECHNYLIGHT Entertainment Lighting Effects...
  • Page 2 Please read this manual carefully before you initially start-up!

  • Page 3: Open The Box For Checking

    OPEN THE BOX FOR CHECKING Thank you for your purchase of this product TRIDENT450 tri-color Laser show System. In order to use this product safety and reasonable, please read over this manual carefully before use and the operation must strictly according to this manual to avoid any damage to the product and personal safety.

  • Page 4: Safety Instructions

    DANGER LASER RADIATION! Avoid direct eye exposure! Laser radiation can cause eye damage and/or skin damage All protective measures for a safe operation of this laser must be applied. Safety instructions If the device has been exposed to drastic temperature fluctuation, do not switch it on immediately.

  • Page 5: Function Table

    Please consider that unauthorized modifications on the device are forbidden due to safety reasons! If this device will be operated in any way different to the one described in this manual, the product may suffer damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like short-circuit, burns, electric shock, etc.
  • Page 6 ILDA THRU ILDA standard signal through Ground Ground conector POWER SUPPLY AC 220V/50-60 Hz Control mode You can choose the control mode at the dip switches: When the 10 switch is OFF, 1-9 are function codes. Here the functions as bellows: If the first switch is OFF, the device is working in sound mode.
  • Page 7 DMX control Set the DMX base address with the binary system “0” or “1” and remind that the 10 Dip switch is ON for DMX mode. Examples: address address DMX base adds. 1-10 setting: (ON is 1, OFF is 0) Function 0,0,0,0,0,0,0,0,0,0 Sound Control...

  • Page 8: Dmx Channels

    DMX channels: DMX512 Channel FUNCTION VALUE 0--63 Sound control (3-10ch useless) 64--127 Auto mode (3-10ch useless) 1.Control Mode 128--191 DMX control 192--255 Auto mode 0--5 blackout 6--15 16--25 green 2.Blanking 26--35 yellow & Blackout 36--105 single color(auto) 106--175 tri-color(auto) 176--245 tri-color(move) 246--255 bounded color...
