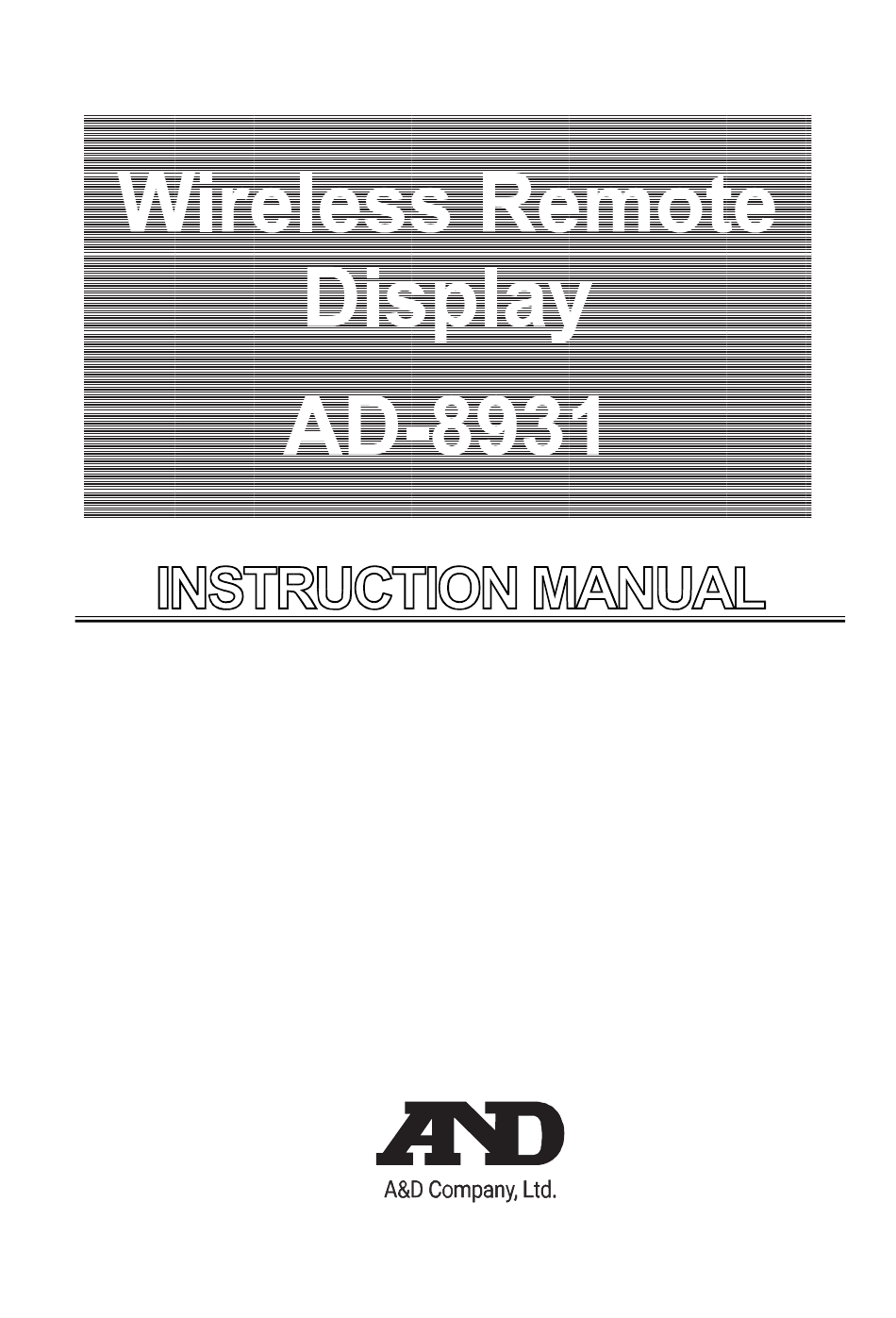

- Page 1 Wireless Remote Display AD-8931 1WMPD4003853...
- Page 2 This Manual and Marks All safety messages are identified by the following, "WARNING" or "CAUTION", of ANSI Z535.4 (American National Standard Institute: Product Safety Signs and Labels). The meanings are as follows: A potentially hazardous situation which, if not WARNING avoided, could result in death or serious injury.
-
Page 3: Compliance With Fcc Rules
1. Compliance 1.1. Compliance with FCC Rules This device contains transmitter module FCC ID : RYYEYSHCN This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 4: Outline And Features
2. Outline and Features The AD-8931 is an external display that performs wireless communication with A&D weighing instruments. Please read this manual thoroughly before using and use this device correctly after understanding the contents. Streamed weighing data from the weighing device is displayed. -
Page 5: Front View
4. Names Front view Back view Battery cover Display Wall-mount hole ON/OFF key Stand SET key Serial number USB (Micro-B) Display Battery indicator BT indicator Stable indicator Weighing unit Polarity The battery indicator changes as the battery capacity decrease as shown below: Battery indicator Displaying weighing data：Turns on when the measurement Stable indicator... -
Page 6: Installing Or Replacing Batteries
5. Preparation 5.1. Installing or Replacing Batteries CAUTION Batteries are not included. Please purchase them separately. □ □ □ Insert the batteries in the correct polarity (+/-) as shown the battery compartment. □ □ □ □ Replace all four batteries at the same time. □... -
Page 7: How To Operate
6. How To Operate 6.1. Bluetooth Paring CAUTION To start communication, pairing between the product and the measuring instrument is necessary. One compatible weighing unit can be connected to one unit of this product. □ □ □ When pairing, turn off the power supply of devices othre than the measuring instrument to be paired. □... - Page 8 6.2. Display Set the data output mode of the measuring instrument to stream mode. Refer to the operation instruction manual of the measuring device for how to change the data □ □ □ output mode of the measuring instrument. 1. Turn on the paired measuring device If pairing has not been performed, perform pairing.
-
Page 9: Parameter Setting Procedure
7. Function 7.1. Entering the Function Settings Turn off the power 1. Turn off the power with the ON/OFF key. Press and hold ON / OFF 2. Press and hold the SET key, and then press the ON/OFF key, and press key to display p -X.XX . -
Page 10: Specification
8. Before Requesting Repair or Service 8.1. Check when a Malfunction is Suspected State Response No display ・Check the battery or USB power supply. ・Check the connection of the USB plug. BT indicator does not light. ・Confirm that the measuring instrument supports wireless communications. -
Page 11: Bluetooth Communication
