Summary of Contents for Auto IDOL KPC Pro

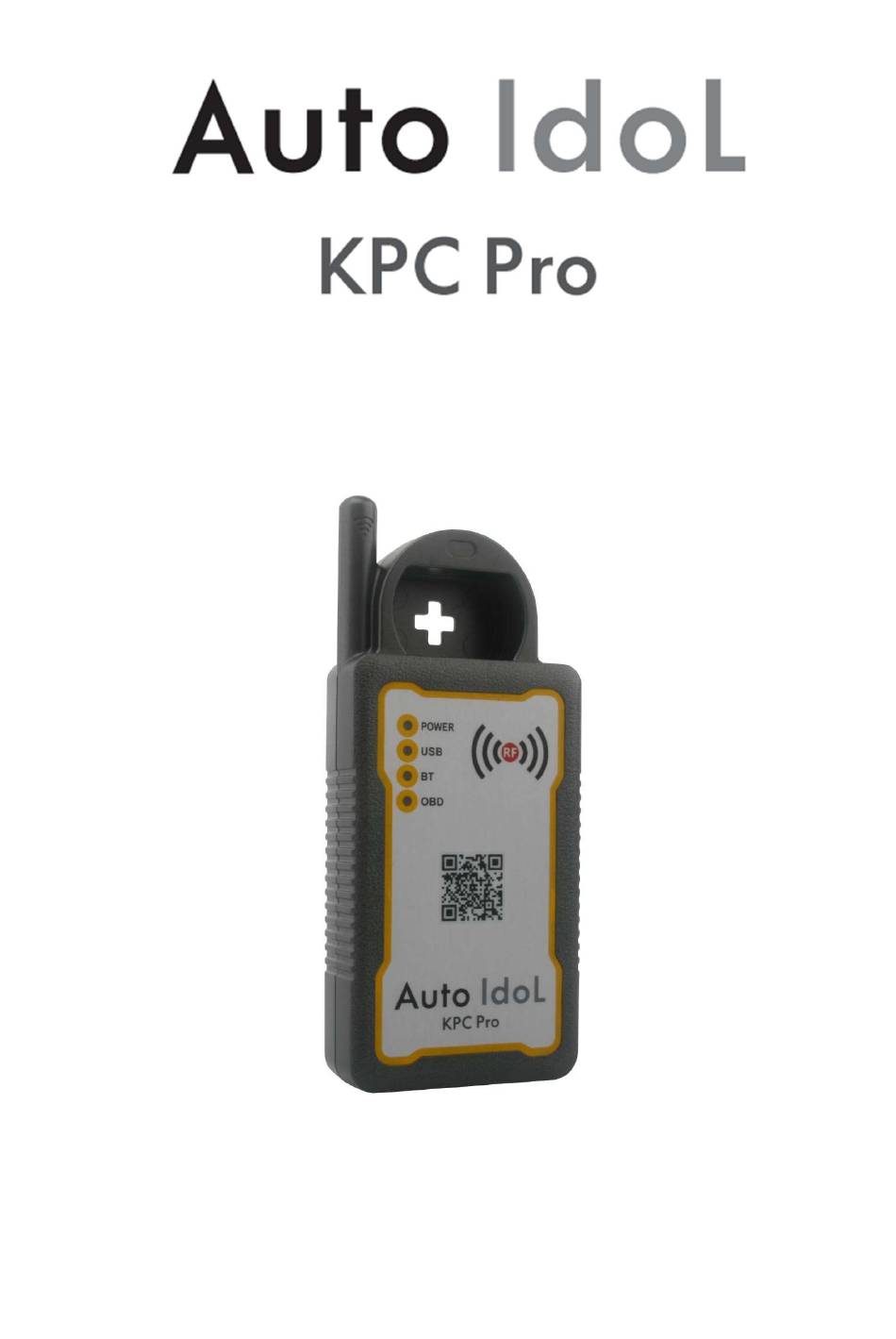

- Page 1 User Manual...
- Page 2 Auto Idol shall not bear any legal responsibility The company Auto Idol shall be not liable for misuse or abuse of the product, or any unauthorized repair of the product, any consequential or incidental damage, or any economic loss resulting from the accidents of any individual user ...
-
Page 3: Table Of Contents
AUTO IDOL KPC Pro CONTENT BASIC INTRODUCTION ..........................3 Appearance ............................3 Layout ...............................3 Features ............................4 Packing List .............................4 INSTALLATION GUIDE ..........................5 Application Installation .......................5 Connection .............................5 Registration ............................8 Update..............................9 FUNCTIONALITY INTRODUCTION ....................11 Auto Key Programming ......................11 3.1.1 Vehicle Connection ..................... 11 3.1.2... -
Page 4: Basic Introduction

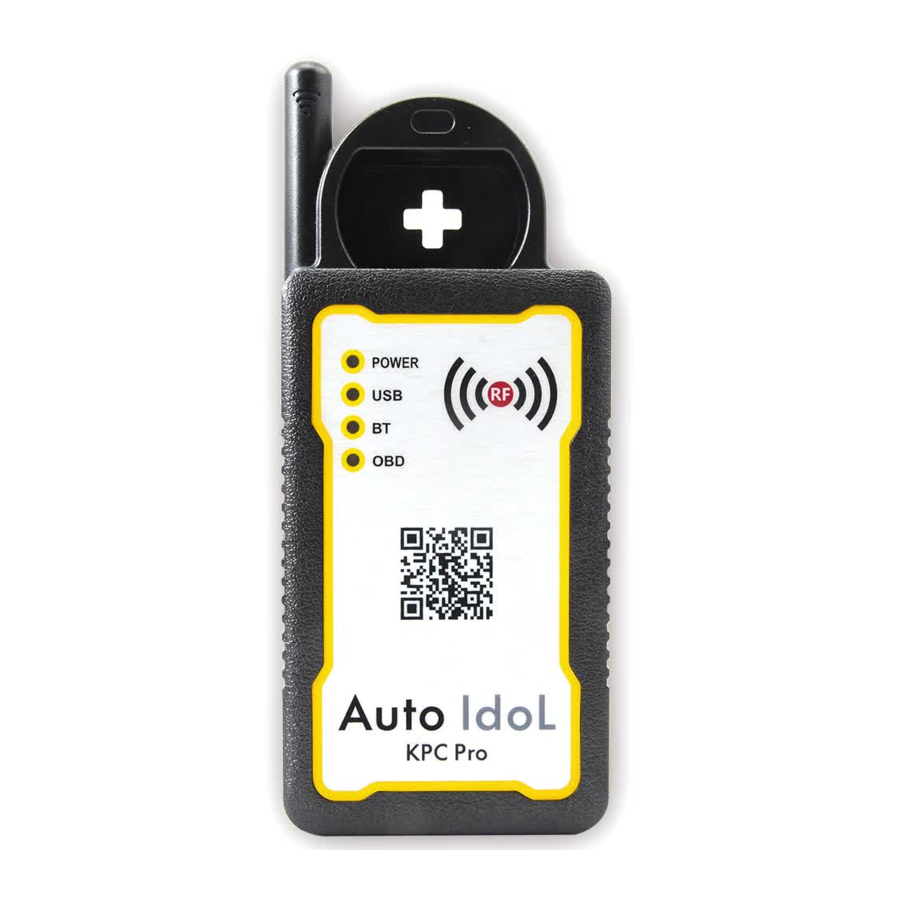

KPC Pro 1. BASIC INTRODUCTION Auto Idol KPC Pro is a small and smart VCI especially for Key Programming & Cloning. It is integrated with multiple functionalities including Auto Key Programmer, Transponder Chip Reader, Transponder Chip Cloner, Remote Frequency Tester. And more and more functions will be continuously developed in the future. -
Page 5: Features
Input: 12V/1A Operation temperature: -10-50℃ Dimension: 167*72*27MM 1.4 Packing List Interface: 1PCS KPC Pro Cable: 1PCS Hyundai/Kia-10P Adaptor: 1PCS Kia-20P Adaptor: 1PCS Honda-3P Adaptor: 1PCS DC12V Power Adaptor: 1PCS Adaptor Cable: 1PCS ... -
Page 6: Installation Guide
② ——Adaptor Cable; ③ ——DC 12V Power Adaptor If Interface is powered correctly, the LED lights for POWER and BT on the Interface will be on. Option 2: use KPC Pro Cable connected to OBD socket in the car (shown as below) - Page 7 Interface will be on PAD connection There are also two options to connect Interface to your PAD. Option 1: use Bluetooth(Default) ① ——Interface ② ——PAD When Interface is powered correctly, click the icon KPC Pro on your PAD to start APK.
- Page 8 AUTO IDOL KPC Pro First, when the PAD successfully searches the Interface via Bluetooth, PAD will pop up a message that sends a Bluetooth pairing request shown as below: Second, please input Pairing Password: 1234 Third, click button OK. Once paired successfully, it will show as below:...
-
Page 9: Registration
AUTO IDOL KPC Pro Option 2: use OTG USB cable ① ——Interface ② ——OTG USB Cable ③ ——PAD When Interface is connected to PAD via OTG USB cable, the LED lights for POWER and USB on the Interface will be on, as well as the light for BT will be off. -
Page 10: Update
AUTO IDOL KPC Pro 2.4 Update After successful registration, please directly update software to download all the data from the sever for the first use via the internet using WIFI. - Page 11 KPC Pro NOTE: Suggest to use PAD instead of phone when using KPC Pro because especially when programming key with vehicle, an unexpected coming call or similar would interrupt the programming process that is possible to lead to damage the car.
-
Page 12: Functionality Introduction
DC 9-15V, especially above DC12V for certain cars Make sure the steady connection between the device and vehicle OBD socket via KPC Pro cable or KPC Pro OBD Adaptor before testing vehicle Make sure not keep away from the main unit communicating with your... - Page 13 AUTO IDOL KPC Pro Step2: Connect the Interface with your PAD via Bluetooth or OTG USB cable, and click IMMOBILIZER button Step3: Select vehicle TOYOTA...
- Page 14 AUTO IDOL KPC Pro Step4: Select BY VEHICLE. And please select BY SYSTEM when you could not find the testing car in the vehicle menu. Step5: Select vehicle model, year and function you need, and click START button...
- Page 15 AUTO IDOL KPC Pro NOTE: The following steps from step6 to the end would be on the process of key programming and need to communicate with the car, please strictly take operations according to the required messages displayed on PAD.
- Page 16 AUTO IDOL KPC Pro Step7: Select the function you need, and here take ADD KEY as example. For this function, you need to have at least a working master key, or else select ALL KEY LOST to program key. Step8:...
- Page 17 AUTO IDOL KPC Pro Step9: Insert a new key and do not turn the ignition on the position Step10: The new key has been programmed successfully...
-
Page 18: Remote Frequency Testing
AUTO IDOL KPC Pro Step11: Make sure the new programmed key to start the car NOTE: If the new programmed key is programmed unsuccessfully, there may be many factors leading to the failure, such as the chip type of key, the quality of the chip, the voltage of vehicle battery, user’s operation, the existing DTC and so on. -
Page 19: Transponder Chip Reading
AUTO IDOL KPC Pro 3.3 Transponder Chip Reading Support to read 11/12/13/33/T5/40/41/42/44/45/46/48/4C/8C/8E/4D(60 61 62 63 64 65 66 67 68 69 70 83)/G/H First, insert the key into the coil slot... -
Page 20: Transponder Chip Cloning
AUTO IDOL KPC Pro Second, click READ button on the PAD and it will show as below 3.4 Transponder Chip Cloning Support clone 11/12/13/33/T5/41/42, Philips Fixed/Crypto Texas Fixed/Crypto(4D/G), and Megamos Fixed/Crypto 48 will come soon. First, insert the original key into the coil slot... - Page 21 AUTO IDOL KPC Pro Second, click READ button on the PAD Third, click COPY button and insert a new key into the coil slot, then click CONTINUE button on the PAD...
- Page 22 AUTO IDOL KPC Pro Fourth, successfully clone a new key. And the key information of the new clone key is the same as the original key.
-
Page 23: Settings
3.5.1 Update KPC Pro could be one-click upgraded directly via the Internet using WIFI, and you would receive a push service when starting APK if there is a update. Please refer to 2.4 in this manual for how to upgrade software. - Page 24 AUTO IDOL KPC Pro...
-
Page 25: System Info
AUTO IDOL KPC Pro 3.5.3 System Info From this interface, you may know detailed information about the product, such as Serial Number, Tokens, Hardware Version, Software Version, APP Version and so on. 3.5.4 Help There are some documents that helps users to know how to use this product better, and suggest to visit official website: www.autoidol.net...
