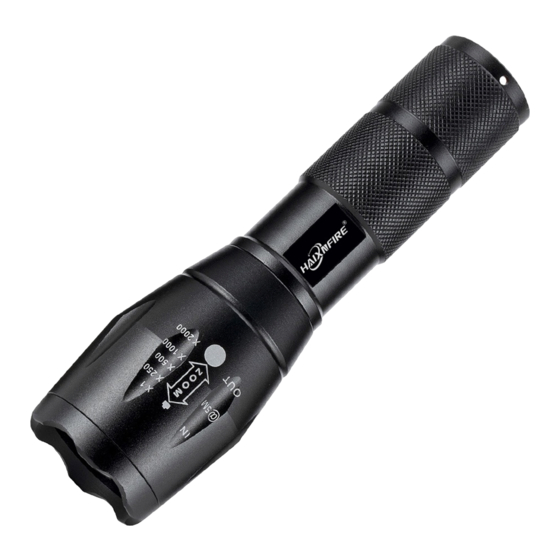

The Torch/G700 Tactical Flashlight Instruction Manual
Option 1 - Use 3 AAA Batteries (not included)
•
To use 3 AAA batteries, you'll use the AAA battery adapter that is stored inside of
the flashlight.
•

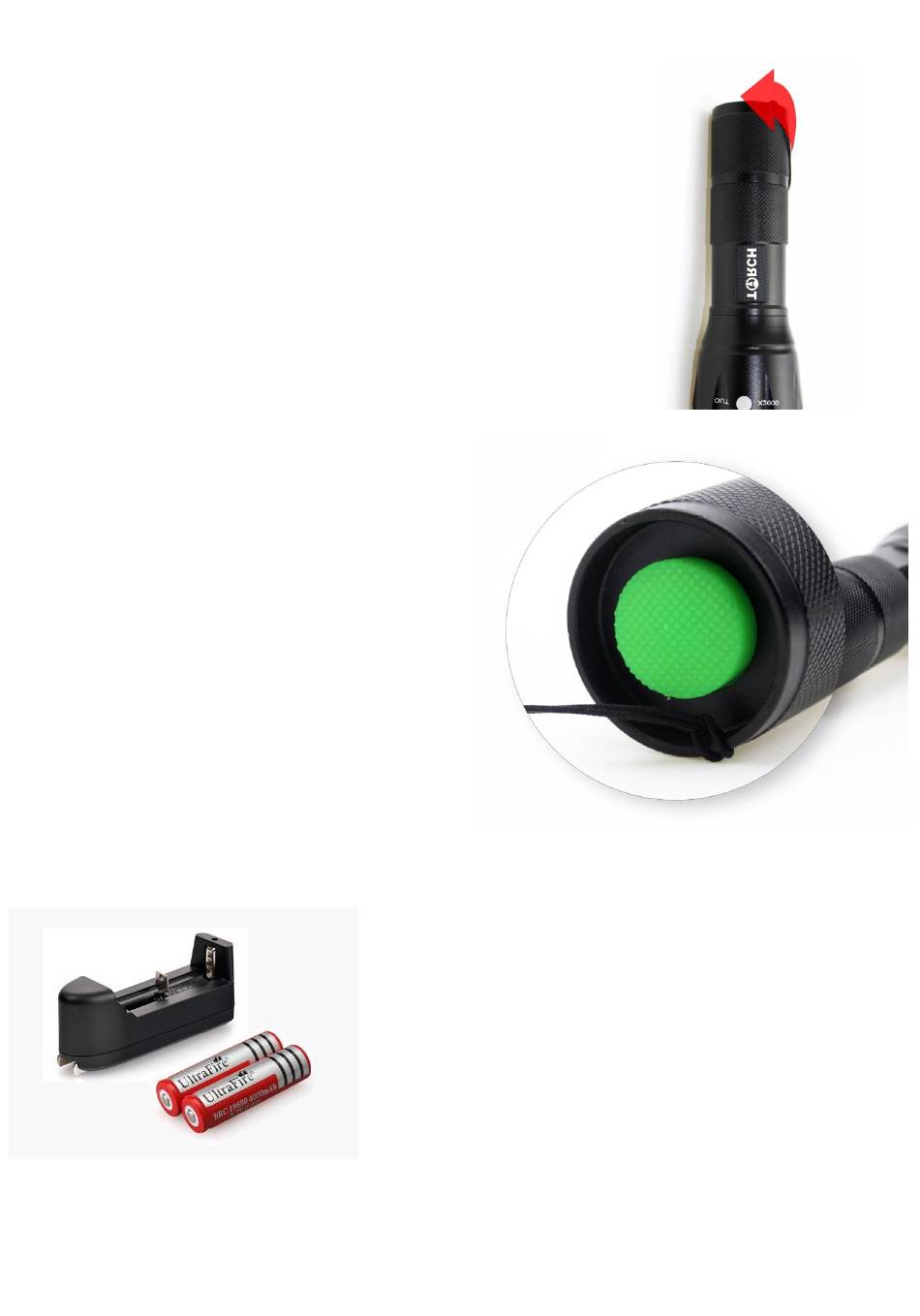

On the bottom end of the flashlight, close to the green power switch (power
switch maybe another color), twist the tail end of the flashlight until tail end is
fully unscrewed.
•
Locate and remove the AAA battery adapter from the flashlight.
•
Install each AAA battery so the negative side of the battery is in contact with each
spring.
•
When all 3 batteries are installed in the adapter, place the adapter back inside the
flashlight. The adapter's male end should point towards the flashlight head unit.
•
Screw the tail piece of the flashlight until firmly tightened.
•
Test to see if the batteries are functioning by pressing the green power switch
(power switch maybe another color) located on the back of the flashlight.
Option 2 - Use an 18650 Rechargeable Battery like the ones
in the Torch Duo Battery Pack available here:
http://www.freeflashlight.com/battery
•
To use the rechargeable battery, you'll use the clear plastic bat-
tery holder included with your flashlight.
•
On the bottom end of the flashlight, close to the green power
switch (power switch maybe another color), twist the tail end
of the flashlight until tail end is fully unscrewed.
•
Locate and remove the AAA battery adapter from the flashlight.
•
Locate the clear plastic battery holder. Place this holder inside
the battery slot.
•
Take the 18650 battery and insert it in the slot firmly inside the
plastic holder inside the flashlight. lnsert the positive end of the
battery facing the flashlight head unit.
•
Screw the tail piece of the flashlight until firmly tightened.
•
Test to make sure the battery installation is functioning properly
by pressing the green power switch (power switch maybe
another color)
(battery color may vary)
Charging Your Device:
Directions for Using the Torch Duo Battery Pack (Optional)
•
Locate the 18650 battery
•
Locate the wall charger unit provided with the Torch Duo Battery Pack.
•
Place the 18650 battery in the charger with the positive side facing the light
on the charger.
•
Plug the wall charger into an available wall outlet.
•
If the battery is installed correctly, you will see a red light
•
When a battery is fully charged the red light will turn green.
Advertisement
Table of Contents
Related Manuals for Torch G700
Summary of Contents for Torch G700
- Page 1 Directions for Using the Torch Duo Battery Pack (Optional) • Locate the 18650 battery • Locate the wall charger unit provided with the Torch Duo Battery Pack. • Place the 18650 battery in the charger with the positive side facing the light on the charger.
- Page 2 You may cycle through light modes to choose which light mode you would like to use. • Torch Tactical Flashlight has 5 light modes to chose from: High - Medium - Low - Strobe - SOS w to Operate Zoom: •...
- Page 3 setting is after the SOS mode. - Check your batteries to be sure they have enough power. If you’re using a rechargeable battery, try charging the battery if it’s not been charged recently. The zoom feature that was advertised and which is shown by an IN and OUT arrow marking on the flashlight head isn’t working properly.
Need help?
Do you have a question about the G700 and is the answer not in the manual?
Questions and answers
Image of the switch button installation setup as my G700 is not turning on/off.
The switch button on the Torch G700 is installed on the rear side of the flashlight. It is referred to as the green power button, though the color may vary. To operate the flashlight, the user must press this button. Pressing it multiple times allows cycling through different light modes.
This answer is automatically generated
how to install on off button

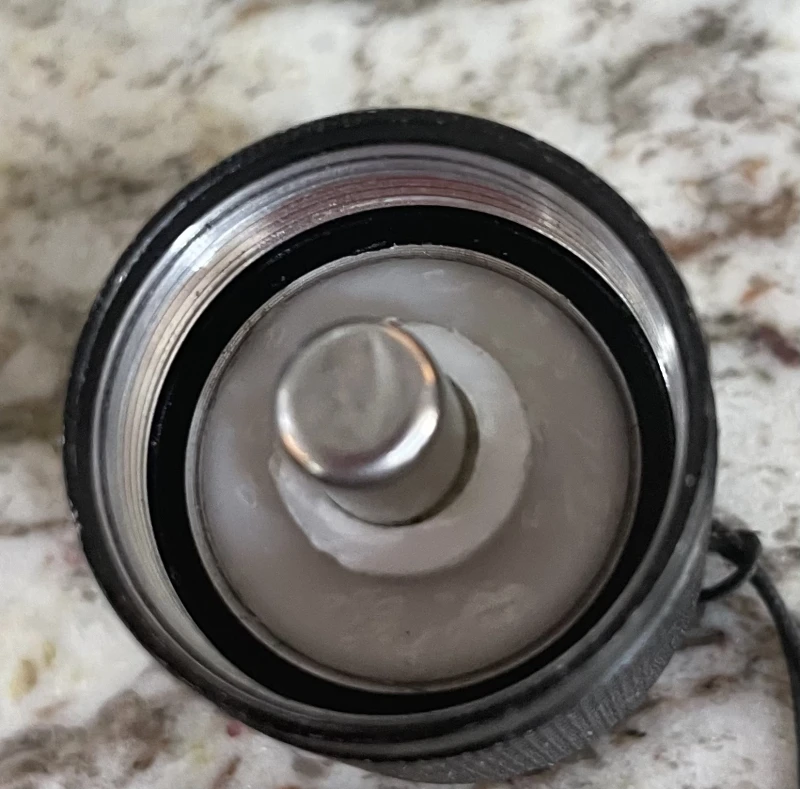

Need replacement of the metal cup tiny piece that completes circuit to battery.
