Summary of Contents for Avermedia CT130

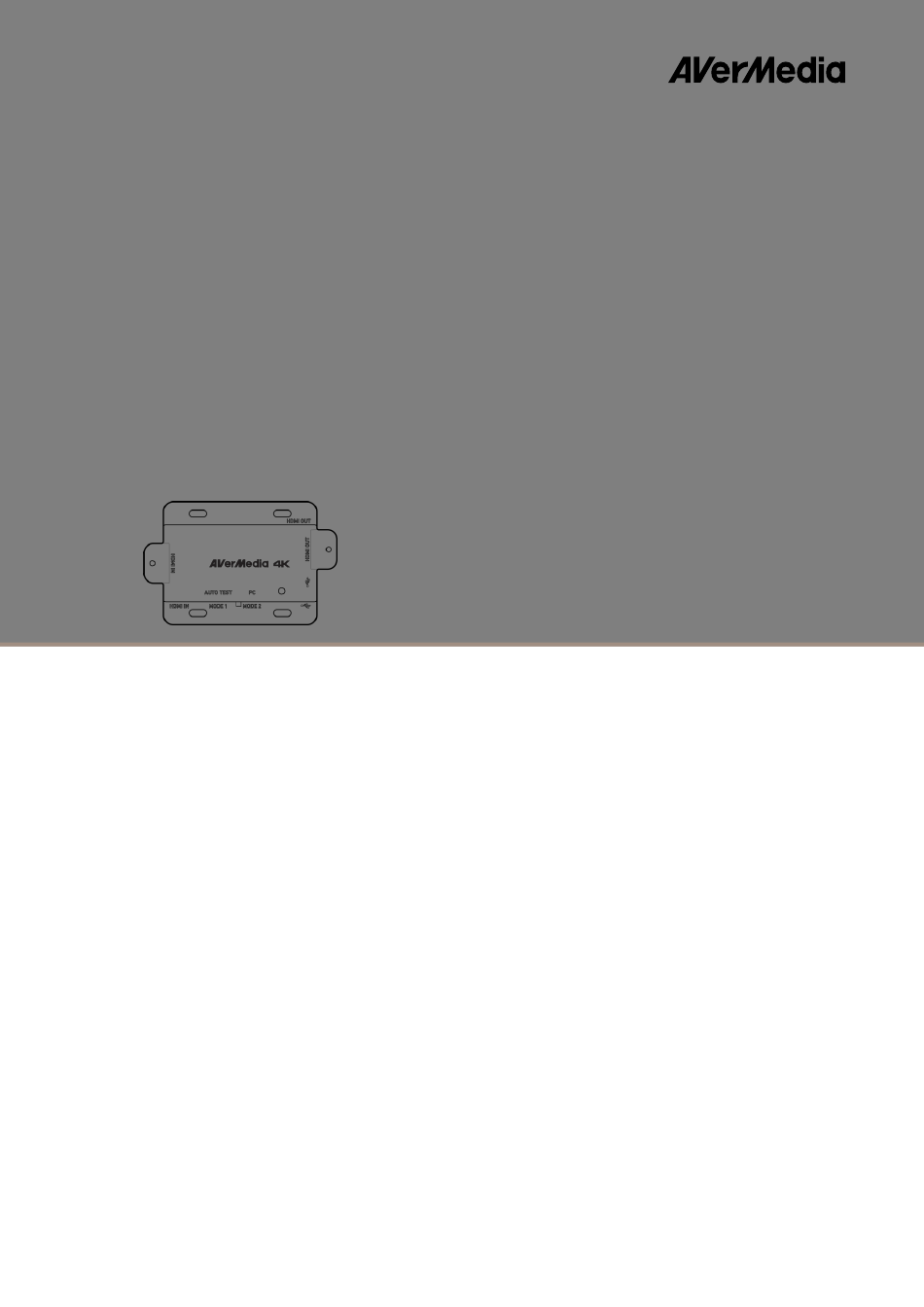

  • Page 1 4K HDMI Signal Detector CT130 English U s e r M a n u a l...
  • Page 2 Copyright © 2019 by AVerMedia Technologies, Inc. All rights reserved. No part of this publication, in whole or in part, may be reproduced, transmitted, transcribed, altered or translated into any language in any form by any means without the written permission of AVerMedia Technologies, Inc.
  • Page 3 CT130 User Manual Head Office EU (AVT Solutions GmbH) Address Hanauer Landstrasse 291 B, 60314 Frankfurt Hessen, Germany Website www.avermedia.com/inquiry 中国子公司 地址 上海市静安区武宁南路 488 号智慧广场 1510 室 网址 www.avermedia.com.cn 电话 +86-21-52987985 V 1.0 06/2019...
  • Page 4 CT130 User Manual Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Follow all instructions. 4. Heed all warnings. 5. Do not use the apparatus on uneven or unstable surfaces. 6. Do not use this apparatus in a wet environment or near water.

  • Page 5: Table Of Contents

    Test Setup and Requirements ..................7 Specifications ........................7 Introduction of Modes ..................... 9 Auto Test Mode ......................10 8.1 CT130 Auto Test Procedure and Steps ............... 10 PC-Operating Mode ...................... 11 9.1 Connection Settings ....................11 9.2 UART Communication Protocol ................12 9.2.1...

  • Page 6: Introduction

    CT130 User Manual 1. Introduction The AVerMedia 4K HDMI Signal Detector CT130 is designed to check and report DC voltage level of each HDMI signal pin and quickly tests the continuity of all HDMI features. This tester connects a source and a display to verify whether all digital signals are being transmitted properly, and it also ensures that the source HDMI signals are compliant with the specifications.
  • Page 7 CT130 User Manual Order of Plugging In HDMI OUT HDMI IN Step 1: Plug into the mini USB port Step 2: Plug into the HDMI IN port Step 3: Plug into the HDMI OUT port Order of Unplugging HDMI OUT...

  • Page 8: Test Setup And Requirements

    CT130 User Manual 5. Test Setup and Requirements HDMI HDMI CT130 Sink HDMI HDMI device cable Pattern resolution: 1920*1080 p60  HDMI cables are 10 meters and 1 meter respectively for HDMI source and sink devices Pattern resolution: 3840*2160 p60 ...
  • Page 9 CT130 User Manual Power Consumption The power consumption differentials of operating modes are listed below. 5.0V Total Power Power Rails Operating Modes 0.12 Idle Mode 0.12 Working Mode Thermal The case temperatures of key components are listed below. Components Case Temperature Specifications Components TC: 95 ℃...

  • Page 10: Introduction Of Modes

    CT130 detects whether an HDMI cable is plugged in or not. After an HDMI cable is plugged in, the CT130 starts to measure the DC voltages of HDMI signals (TMDS, power 5V). If all signals pass the validation, the TMDS switch changes to path 1 and the LED indicator turns blue.

  • Page 11: Auto Test Mode

    4. Make sure the DUT is ON. 5. Connect the CT130 input port and the DUT output port using an HDMI cable. 6. After the HDMI cables are plugged in and 5 V power is detected, the CT130 will begin measuring and qualifying video.

  • Page 12: Pc-Operating Mode

    9. Repeat steps 4–8 to perform qualification for the next device. 9. PC-Operating Mode The CT130 is equipped with a USB port, which provides not only power but a Virtual COM port for Windows operating systems. In PC-Operating Mode, users can send desired commands and receive the result of measurement through USB connection.

  • Page 13: Uart Communication Protocol

    Figure ‎ 9 .1-1 PC-Operating Mode Scenario 9.2 UART Communication Protocol The CT130 follows the Request-Reply strategy. In PC-Operating Mode, you can send a desired command after the connection has been established. When the CT130 receives a complete command, it starts the action as defined command and then replies the result to the host PC.

  • Page 14: Reply Format

    TMDS signal switch to path 2 (MCU) before sending any ADC command. NOTE: The CT130 spends about 200 msec to start from “sending each Read ADC value command” to “getting the reply describing DC value”. All other commands will be ignored during ADC measurement.
  • Page 15 The formats of replies are the same as “read‎ADC‎value” if the command‎is‎“read All ADC values”‎(0x2B),‎but the CT130 replies continuously after all ADC actions have been done. After every result has been replied, the CT130 will send a SUCCESS (0xA52B00000000000000D0) to PC. Figure ‎ 9 .2.2-1 shows how it works.
  • Page 16 CT130 User Manual Figure ‎ 9 .2.2-1 scenario‎of‎“Read‎all‎ADC‎values”‎command c. If‎request‎command‎is‎“read‎TMDS‎switch‎state”: Table 4 Read TMDS switch state Reply Format Byte 0 Byte 1 Byte Byte Byte Byte Byte Byte Byte Byte Header Status Switch state Checksum 0xA5 0x2E 1 byte 1 byte...

  • Page 17: Error Status

    Status: SUCCESS  Command requested FAILURE  Error codes listed in Error Status If any predictable situation happens, the CT130 will reply error status as follows: Table 7 9.2.3 Error Status If any predictable situation happens, the CT130 will reply error status as follows:...

  • Page 18: Ct130 Pc-Operating Procedure And Steps

    9.3 CT130 PC-Operating Procedure and Steps Switch to MODE 2. Connect a USB cable (A  Mini-B) from PC to the CT130 USB port. Make sure the driver is installed and Virtual COM port appears in Device Manager.

  • Page 19: Update Application Firmware

    10.2 Firmware Update Procedure 1. Connect CT130 to PC via a USB, and switch to Mode 2 (PC-Operating Mode). 2. Run the CT130Updater_V1.0.0.3_2014103001.exe and message will prompt in the application window with steps to execute as in Figure ‎ 1 0.2-1.
  • Page 20 CT130 User Manual Figure ‎ 1 0.2-1 Running AVerMedia Updater Application Window 3. Select a Hex file: App FW Version in “Hex Select a Hex file of firmware application code, it will show Image‎Info”‎Column‎of small box on the left side.
  • Page 21 [Connect to Device]. If fails to connect the device (CT130 board), it will display a warning message as in Figure ‎ 1 0.2-4. Please re-plug the USB and try again. After connecting the CT130 board, it will instruct the next step as in Figure ‎ 1 0.2-5 when‎it’s‎ready‎to‎update the firmware application code.
  • Page 22 CT130 User Manual Figure ‎ 1 0.2-3 Open corresponding COM Port & Connect to device Figure ‎ 1 0.2-4 Connect to CT130 board failure...
  • Page 23 CT130 User Manual 7. Click [Update Application Firmware] to download the selected application firmware (Hex file) to the CT130 board. See Figure ‎ 1 0.2-6. Figure ‎ 1 0.2-5 CT130 board ready to Update Application Code...
  • Page 24 8. Once the update firmware application is done, it will display “Bootload process completed successfully!” message Figure ‎ 1 0.2-6) and the CT130 board will reset to start the application code and the host will disconnect from the device automatically.

  • Page 25: Ct130 One-Click Updater

    9. If update firmware application code fails, please click [Disconnect from Device] then repeat steps 1–9. 10. If you want to update another CT130, please repeat steps 4–9. 11. If you want to update the CT130 with another hex file, please repeat steps 3–9. One-click Updater 10.3 The Updater will load the last hex file in the working directory to update CT130 one by one.
  • Page 26 The Updater displays the scanned serial ports and the name of last hex file as shown in the red box 2. “Checking…”‎means‎that‎the‎Updater‎is‎checking‎whether‎the‎connected‎device‎ is a CT130 device. If the connected device is not a CT130 device,‎“The device is not responding. It may not be a CT130 device.”‎and‎“Connect‎failed!!”‎will‎be‎ displayed as shown in the red box 3.
  • Page 27 CT130 User Manual Figure ‎ 1 0.3-1 One-click updater message...

  • Page 28: Ce And Fcc Compliance Statement

    CT130 User Manual 11. CE and FCC Compliance Statement European Community Compliance Statement Class B This product is herewith confirmed to comply with the requirements set out in the Council Directives on the approximation of the laws of the Member States relating to Electromagnetic Compatibility Directive (EMC) 2014/30/EU.
