Installation reference for the installation of the device
Mobi-Auto A-136
The device has
been installed in
BMW 528. At first
you should check
on the basis of a
guide book of the
respective car,
where the fuse
panel is situated.
The power supply
will be connected
there (see the
page 10, pkt. 11 of
our instruction
manual).
Advertisement
Summary of Contents for Mobi-click A-136

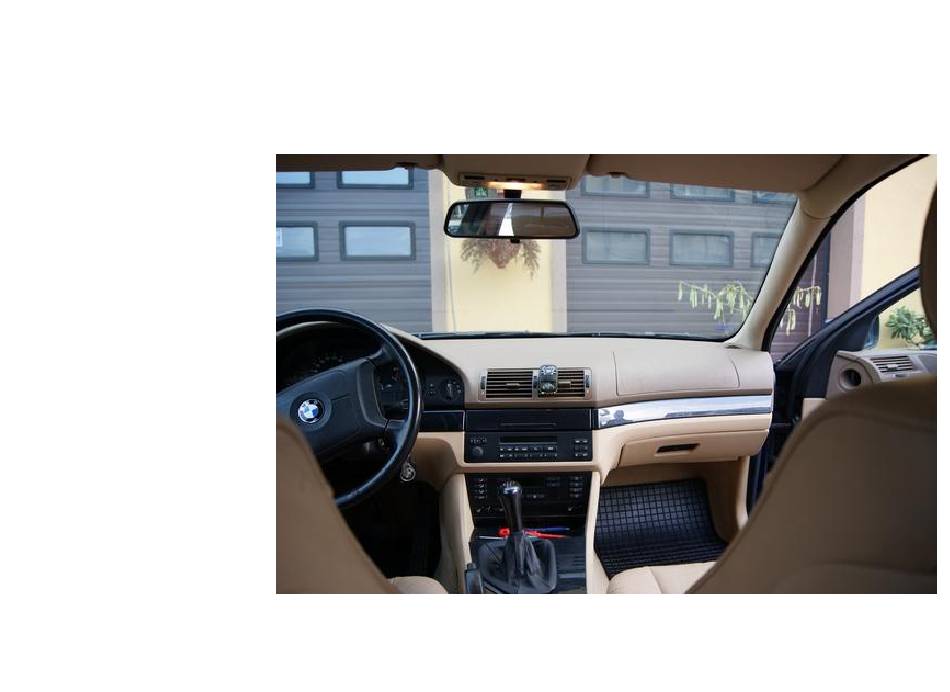

- Page 1 Installation reference for the installation of the device Mobi-Auto A-136 The device has been installed in BMW 528. At first you should check on the basis of a guide book of the respective car, where the fuse panel is situated.
- Page 2 In the picture 2 you can see, which components must be installed. The power cable, the GPS receiver and the remote control haven’t been shown in the picture.
- Page 3 At first the microphone has been installed top left near the sun visor (picture 3). For this purpose the cable has been installed under the side panelling.
- Page 4 The side panelling on the frame can be removed easily. Also the LED has been installed on the same side (see the picture 4).
- Page 5 The loudspeaker should be installed near the driver seat. Good location is the storage place in the centre console (picture 5).
- Page 6 The control unit with the GPS receiver and antenna we have installed near the other car control units. For this purpose we had to undo 2 screws to remove the clap (picture 6). Under the clap there is a lot of place, so that the control unit and the GPS receiver have been placed there. We didn’t have to fix the device with any screw, because it could be built in very solid.
- Page 7 Just after all accessory items have been installed in a right way, the control unit can be connected to the fuse (picture 7 and 8 resp. see our instruction manual page 11 and 12).
- Page 8 Picture 8...
- Page 9 Pictures 9 and 10 show that the device and the accessory items have been built in very good without any interference of the visibility range of the driver.
- Page 10 Good Luck Picture 10...
