Introduction
The VSpeak ECU Converter for HORNET ECUs is emulating the IO-BOARD and the
TERMINAL. Data, which is shown on the STATUS DISPLAYs of the TERMINAL can be
sent via telemetry to the radio. To avoid unwanted electrical effects between the ECU and RC-
system the VSpeak ECU Converter is galvanically isolated via optocouplers.
The ECU Converter can interpret and transmit data from the HORNET III and older
HORNET II ECU.
The VSpeak ECU Converter can be software-updated by the user.
The current version has been tested with the following ECUs/Versions:
HORNET II V7.1B
HORNET III V2.5A
ECU Converter HORNET Version: 1.1
ECU converter HORNET
Manual Version 1.1

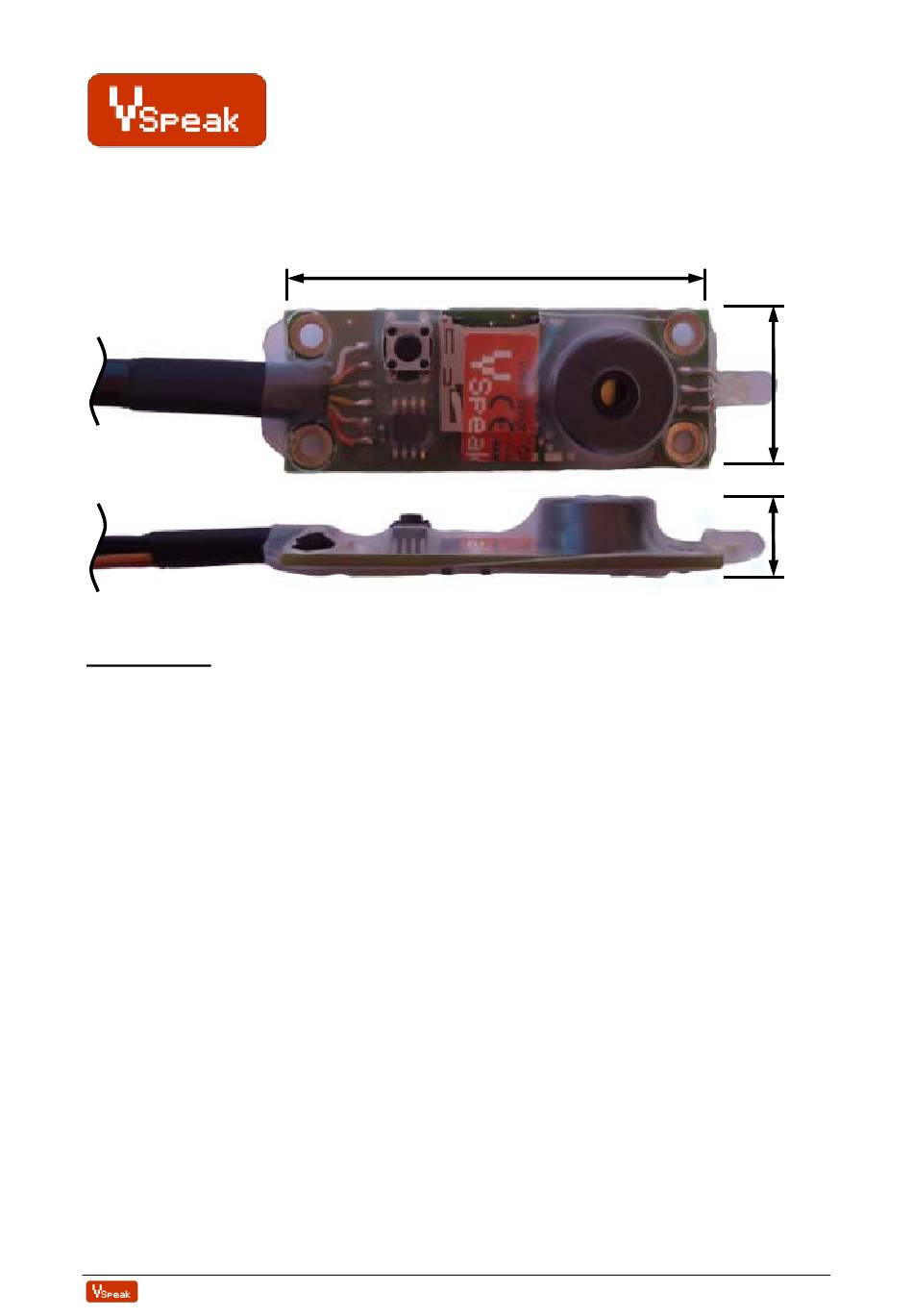

60 mm
www.VSpeak-modell.de
22 mm
12 mm
Page 1/18
Advertisement
Table of Contents
Related Manuals for VSpeak ECU converter HORNET
Summary of Contents for VSpeak ECU converter HORNET
- Page 1 12 mm Introduction The VSpeak ECU Converter for HORNET ECUs is emulating the IO-BOARD and the TERMINAL. Data, which is shown on the STATUS DISPLAYs of the TERMINAL can be sent via telemetry to the radio. To avoid unwanted electrical effects between the ECU and RC- system the VSpeak ECU Converter is galvanically isolated via optocouplers.
-
Page 2: Table Of Contents
HORNET 2 - Limitations ..................16 Update ........................17 Accessories ....................... 17 Technical data ......................17 Instructions for disposal ..................17 EG Declaration of Conformity ................18 Version history ......................18 Contact ........................18 Page 2/18 ECU Converter HORNET Version: 1.1 www.VSpeak-modell.de... -
Page 3: Hardware
For Jeti Duplex, Multiplex (and ACT) and HoTT the VSpeak ECU Converter is shipped with an 3-pin connector to connect to the telemetry port of the RC system. For Spektrum systems the VSpeak ECU Converter is shipped with a 4-pin connector for the X-Bus port of the telemetry module. -
Page 4: Telemetry
2 Telemetry The voltage for the VSpeak ECU Converter is supplied by the HORNET ECU. As soon as you switch on the HORNET ECU and apply a valid signal to the throttle channel (either from the radio or a servo tester) you will get telemetry data. Otherwise no data is generated. -
Page 5: Jeti Duplex Ex
(except characters that cannot be displayed on Jeti Systems). Furthermore you can use the Jeti-keys to edit all values available on the TERMINAL. Please refer to the HORNET ECU's manual. 2.1.2.1 Key assignment Page 5/18 ECU Converter HORNET Version: 1.1 www.VSpeak-modell.de... -
Page 6: Special Characters
"°C" unit "ml" button "up" (eg in test menu) button "down" (eg in test menu) button "Enterv(eg in test menu) "empty" Bargraph HORNET III Voltage/Fuel "full" Bargraph HORNET III Voltage/Fuel Ignition Page 6/18 ECU Converter HORNET Version: 1.1 www.VSpeak-modell.de... -
Page 7: Alarms / Parameterization
A, B, C, . . . , X, Y, Z PUMP FUEL MSB- BATT OFF, 0, 1, 2, 3, . . . ,13, 14, 15 Adressen Status THRO F-FLOW FUEL-% Jeti-Sensor EX Name VSECU, L-ECU, R-ECU, 1LECU, 2RECU VSECU Page 7/18 ECU Converter HORNET Version: 1.1 www.VSpeak-modell.de... -
Page 8: Expandermenu
The rotation speed monitoring is activated by reaching the AUTO status and deactivates when the pump voltage reaches 0.00V. A speed alarm can signal a "turbine flameout". In a 2-turbine model 2 VSpeak ECU converter can be used on Jeti Systems via an expander or CentralBox. The EX names are: "1LECU"... -
Page 9: Graupner Hott
In this mode it is possible to have speech output for the sensor values. 2.2.1 Sensortype The VSpeak ECU Converter for HoTT is a GAM (General Air Module) or a ESC sensor (Electronic Speed Controll). Please select this sensor-type on your radio or Smartbox. 2.2.2 Textdisplay Using the text-display you can see the current HORNET-ECU data and you can also change parameters of the ECU. -
Page 10: Special Characters
"°C" unit "ml" button "up" (eg in test menu) button "down" (eg in test menu) button "Enterv(eg in test menu) "empty" Bargraph HORNET III Voltage/Fuel "full" Bargraph HORNET III Voltage/Fuel Ignition Page 10/18 ECU Converter HORNET Version: 1.1 www.VSpeak-modell.de... -
Page 11: Key Assignment
The fuel level is shown as gauge in % and as numbers in ml. The 100% value is set at startup. The value in ml transferred during the powerup of the ECU is used as 100% value for calculation. Page 11/18 ECU Converter HORNET Version: 1.1 www.VSpeak-modell.de... -
Page 12: Esc - Electronic Speed Control
(or the buttons oft he Hott selected parameter is enabled for change transmitter) „ “. > (inverted). With the value can be increased, With it can be reduced. Stored is after INC+DEC Page 12/18 ECU Converter HORNET Version: 1.1 www.VSpeak-modell.de... -
Page 13: Alarms / Sensor Setting
("OFF"). An address for double occupancy values within the ECU converter is excluded. If an address has been set, which was already associated with another value, the current is set to "OFF". Page 13/18 ECU Converter HORNET Version: 1.1 www.VSpeak-modell.de... -
Page 14: Multiplex Mlink (Msb)
2.3 Multiplex MLink (MSB) The MSB (Multiplex Sensor Bus) is only uni-directional. You can only see the telemetry data, but you cannot change parameters of the HORNET ECU. 2.3.1 Adress-Assignment The VSpeak ECU Converter at delivery uses following addresses: comment address PUMP... -
Page 15: Spektrum (X-Bus)
ECU is used as 100% value for calculation. So after powerup you get a consumption of 0% (0A). You can change the value displayed on “Amps” and “JetCat” by double-clicking the button on the VSpeak ECU Converter. Please refer to the table below. JetCat display current display... -
Page 16: Turbine-Status
Accelerate 2.5 HORNET 2 - Limitations If you connect a HORNET 2 to the VSpeak ECU converter, there are some limitations: There will be no values for fuel level, fuel flow and throttle transmitted. These values are set to “0”. Thus no alarm can be generated for FUEL. -
Page 17: Update
(cable length ~ 30 cm) Jeti / HoTT / MSB X-Bus plug (cable length ~ 28 cm) Spektrum 6 Instructions for disposal Equipment marked with the symbol should not be disposed of within household waste. Page 17/18 ECU Converter HORNET Version: 1.1 www.VSpeak-modell.de... -
Page 18: Eg Declaration Of Conformity
Change between Jeti, HoTT and Multiplex possible Jeti, HoTT, Multiplex: Alarms FUEL, BATT and RPM settable MSB-adresses can be changed with the Jeti- or HoTT-System 9 Contact Volker Weigt www.VSpeak-Modell.de mail: volker.weigt@vspeak-modell.de Page 18/18 ECU Converter HORNET Version: 1.1 www.VSpeak-modell.de...
