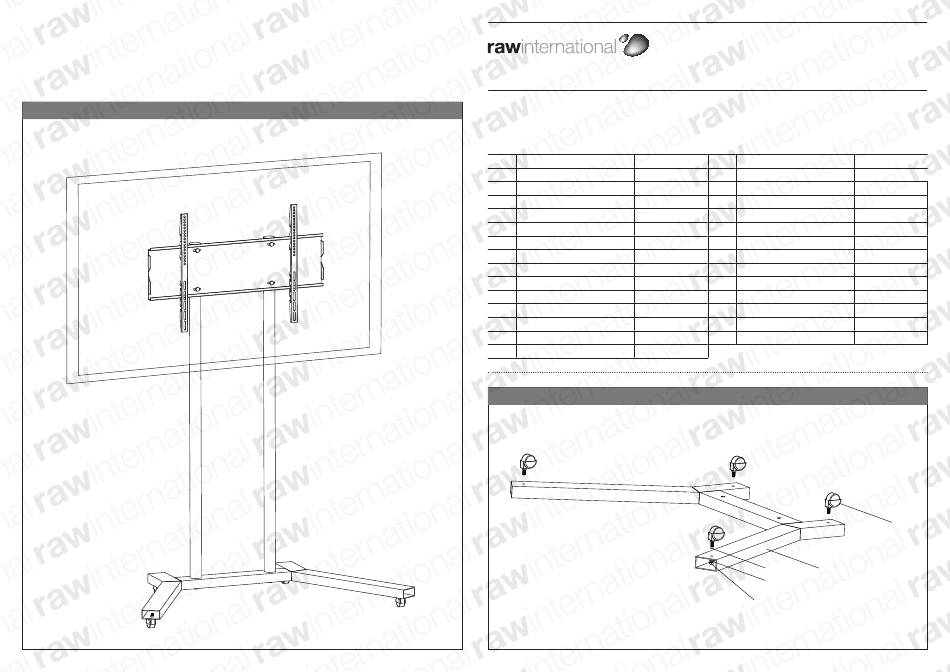

Rawinternational TRS1 Instruction Manual

STeP 6: MouNTiNG The fLaT PaNeL TeLeviSioN To The PLaTe
Warning: Some televisions may require 2 people to lift! We are not responsible for personal
injury or product damage.
first choose the desired height then hook the Monitor Brackets (17) over the top of the Plate (16) as
shown in the diagram. finally fix the brackets into position with two screws. Put four covers on the base.
STEP 6
CoNSuLT auThoRiSeD SeRviCe PeRSoNNeL foR The
iNSTaLLaTioN of ThiS uNiT. iNSTRuCTioNS MuST Be
foLLoWeD PReCiSeLY foR Safe aND STaBLe iNSTaLLaTioN.
RaW iNTeRNaTioNaL aRe NoT LiaBLe foR aNY DaMaGe oR
iNJuRY CauSeD BY MiShaNDLiNG oR iMPRoPeR iNSTaLLaTioN.
TRS1 iNSTRuCTioN MaNuaL
LIST OF COMPONENTS
No. Description Quantity
1 Base 1
2 Wheel with Brake 4
3 Metal Tube 2
4 Square tube cover 4
5 M12x60 Bolt 2
6 M8x65 Bolt 4
7 Wrench Set 1
8 M10 Gusset Nut 4
9 M8 Gusset Nut 4
10 M12 Washer 2
11 M10 Washer 4
12 M8 Washer 4
13 M12 Lock Washer 2
14 M10 Lock Washer 4
STEP 1: InSTall ThE four whEElS on ThE baSE
No. Description Quantity
15 M8 Lock Washer 4
16 Plate 1
17 Monitor Bracket 2
18 M5x12 Bolt 4
19 M5x30 Bolt 4
20 M6x12 Bolt 4
21 M6x35 Bolt 4
22 M8x16 Bolt 4
23 M8x40 Bolt 4
24 M4/M5 Spacer 4
25 M6/M8 Spacer 4
26 M4/M5 Washer 8
27 M6/M8 Washer 4
11
1
14
8
2
