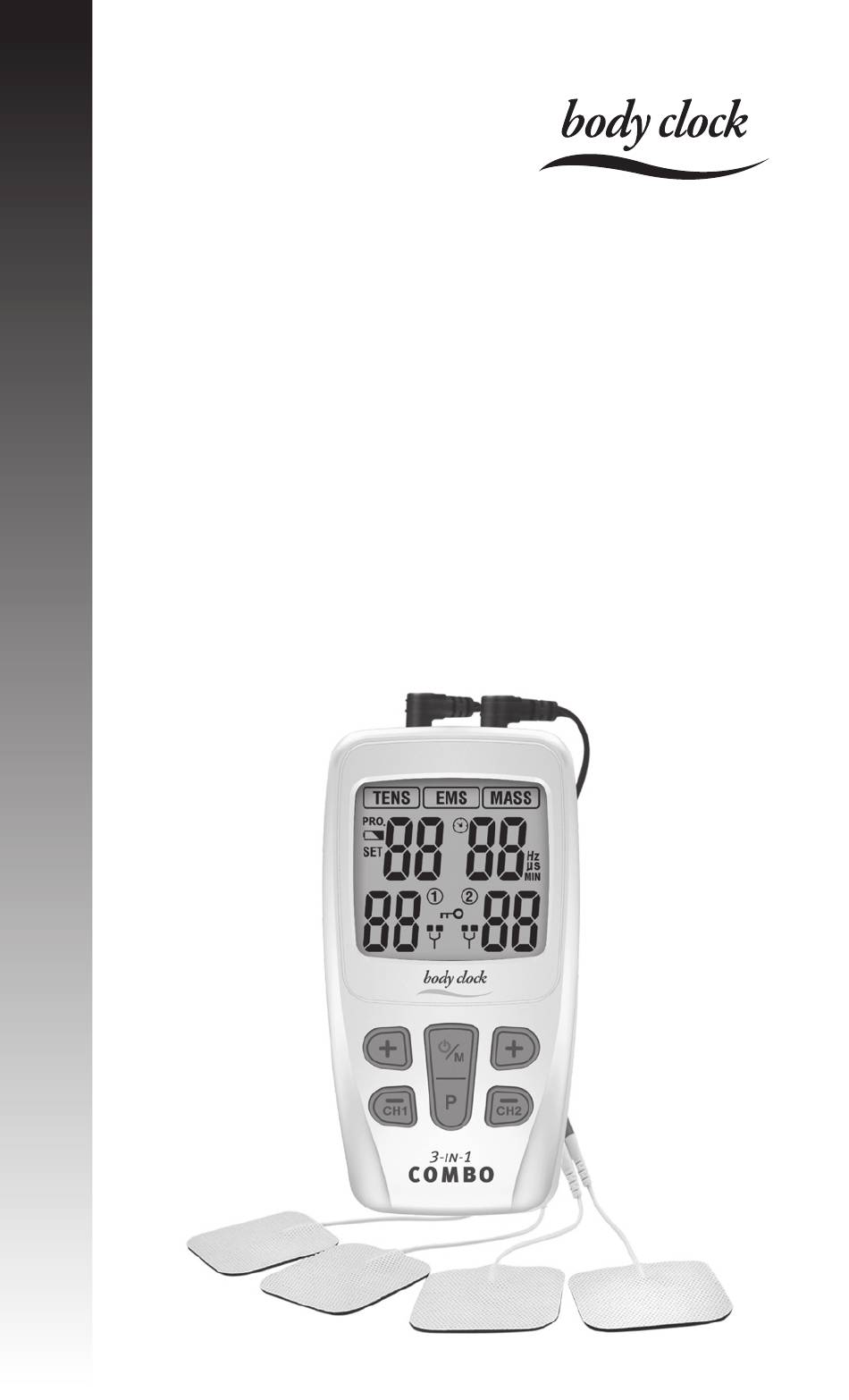

  • Page 1 3-in-1 C O M B O E L E C T R OT H E R A P Y Instructions for use...

  • Page 2: Table Of Contents

    Contents Foreword ..............3 Safety information ..........5 Getting to know your device ......10 Specification ............13 Operating instructions ........14 Instructions for use ..........21 Cleaning and maintenance ......29 Troubleshooting ........... 31 Storage ..............33 10. Disposal of device ..........33 11.

  • Page 3: Foreword

    1. Foreword The 3-in-1 COMBO is a dual channel output TENS, EMS and MASSAGE stimulator. Before using, please read all of the instructions in this user manual carefully and keep it safe for future reference. The unit has three functions - TENS (Transcutaneous Electrical Nerve Stimulation), EMS (Electronic Muscle Stimulation) and MASSAGE.
  • Page 4 1.2 GENERAL INFORMATION 1.2.1 About pain Pain is felt in an injured area when messages travel to the brain, along small nerves leading to the spinal cord. These messages are then transmitted via other nerves that travel up the spinal cord to the brain. At the brain, they are decoded, analysed and reacted to.

  • Page 5: Safety Information

    2. Safety information 2.1 INTENDED USE The 3-in-1 COMBO stimulator is specifically designed for home use by adults. It is intended for the relief and management of pain and the stimulation and massaging of muscles. This unit provides the user with three modes.
  • Page 6 2.2 IMPORTANT SAFETY PRECAUTIONS & WARNINGS See page 40 for safety symbols. It is important that you read all of the warnings and precautions included in this manual because they are intended to keep you safe, prevent risk of injury and avoid a situation that could result in damage to the device.
  • Page 7 2.2.2 Warning 1) If you have had medical or physical treatment for pain, consult with your physician before use. 2) If your pain has not lessened, or becomes more than mild, then please consult with your physician. 3) Do not apply stimulation at the front or at the side of your neck because this could cause severe muscle spasms resulting in the closure of your airways, difficulty breathing, or adverse effects on your heart...
  • Page 8 12) Stimulation should not take place while the user is connected to high-frequency hospital equipment, which may cause burn injuries on the skin under the electrodes, as well as problems with the unit. 13) Do not use the unit in the vicinity of shortwave or microwave therapy equipment since this may affect the output power of the stimulator.
  • Page 9 3) TENS is a symptomatic treatment which suppresses the sensation of pain that would otherwise serve as a protective mechanism. 4) Effectiveness is highly dependent upon patient selection by a practitioner qualified in the management of pain patients. 5) Since the effects of stimulation of the brain are unknown, stimulation should not be applied across your head, and electrodes should not be placed on opposite sides of your head.

  • Page 10: Getting To Know Your Device

    16) Check the electrode connections before each use. 17) This device should only be used with electrodes recommended by Body Clock Health Care Ltd. 2.2.4 Adverse Reactions 1) Possible skin irritation or electrode burns under the electrodes may occur.
  • Page 11 3.2 LCD DISPLAY No Function description No Function description Indicator of no load 1 Treatment mode (Channel 1 and Channel 2) 2 Program Identifier 10 Channel 2 indicator 3 Low battery indicator 11 Intensity for Channel 2 Symbol of setting Symbol of treatment time function (min)
  • Page 12 No Description 1 LCD display [ON/OFF/M] button: Press the [ON/OFF/M] button to turn on the device; in standby mode, press the [ON/OFF/M]button to select the treatment mode. Press and hold the [ON/OFF/M] button to turn off the device; In treating mode, press the [ON/OFF/M] button to stop the treatment.

  • Page 13: Specification

    4. Specification 4.1 TECHNICAL INFORMATION Device name 3-in-1 COMBO Electrotherapy Device Power sources 4.5V D.C., 3x AAA batteries Output channel Dual channel Waveform Bi-phase square-wave pulse Output current Max. 120mA (at 500ohm load) Output intensity 0 to 40 levels, adjustable...

  • Page 14: Operating Instructions

    5. Operating Instructions 5.1 BATTERY 5.1.1 Check/replace batteries Open the battery cover by pressing down on the flap; insert three batteries (type AAA) into the battery compartment. Take care when installing the batteries noting the positive terminal (+) and negative terminal (-) in the battery compartment of device.
  • Page 15 Take the two black leadwires and insert each of the jack plugs (at one end of each leadwire) into the sockets at the top of the 3-in-1 COMBO unit. Now insert the pins (at the other end of the leadwires) into the sockets attached to the sticky electrodes.
  • Page 16 If you are unsure of your electrode adhesive properties, please order new replacement electrodes. For replacement electrodes please contact Body Clock Health Care: 108 George Lane, South Woodford, London, E18 1AD. Telephone (+44) (0)2085329595. www.bodyclock.co.uk...
  • Page 17 Caution 1. Before applying or removing electrodes ensure that your device is switched off. 2. Hold electrodes at the edges. 3. Do not remove electrodes by pulling at the wires attached to the the unit or the pads. This may cause damage to both.
  • Page 18 Position of electrode placement under TENS programs 5.4.3 Electrode Placement Chart Suggested electrode placement charts for treating various body areas can be seen below. Neck Shoulder Hand Back Abdomen...
  • Page 19 Foot Joint (knee) Joint (elbow) Joint (ankle) Joint (wrist...
  • Page 20 Position of electrode placement under EMS programs Neck Shoulder Hand & back Abdomen Hip & foot...

  • Page 21: Instructions For Use

    6. Instructions for use 6.1 TURN ON To turn on the unit, when using it for the first time, press the [ON/OFF/M] button. The LCD display will appear as follows: 6.2 SELECT TREATMENT MODE Press the [ON/OFF/M] button to toggle between the treatment modes [TENS-EMS-MASS], and stop at the one you wish to use.
  • Page 22 The TENS mode has 6 preset programs [P1-6] and 3 user programs [U1-3]. The EMS mode has 5 preset programs [P1-5] and 3 user programs [U1-3]. The MASS mode has 5 preset programs [P1-5] and no user programs. 6.3.1 Stopping treatment and changing mode/ Program.
  • Page 23 6.4.1 Setting the user programs The User programs (U1-U3 found in the TENS and EMS modes only) enables you to change the pulse rate and pulse width settings, giving you complete flexibility over the parameters you wish to use. You can locate the User programs [U1-U3] in either the TENS or EMS modes by pressing the [P] button until you reach U1, U2 or U3.
  • Page 24 You can set the length of the treatment by adjusting the minutes using the [- / +] buttons (on either channel). When you are happy with the amount of time set press the [ON/OFF/M] button to confirm. The LCD screen will display as follows: 6.5 START TREATMENT Press the [+] button of CH1 to increase the channel 1...
  • Page 25 If you feel the intensity is too low, you can press [+] button to decrease the intensity. When the output intensity of both channels decrease to zero, the unit will return to the standby mode. The LCD displays as follows: Zero intensity Low intensity Caution:...
  • Page 26 6.8 LOAD DETECTION The unit will automatically detect the load if the intensity is above level 4. If it hasn’t detected the load or any electrode is not maintaining sufficient contact with the skin, the intensity will automatically return to level 0 and the symbol will flash returning the unit to standby mode.
  • Page 27 6.10 USAGE OF ELECTRODE PADS If you want to reposition the electrodes during the application, turn off the device first. The use of the electrodes may lead to skin irritations. If you experience such skin irritations, e.g. redness, blistering or itching, discontinue using them. Do not use the unit permanently on the same body part, as this may also lead to skin irritation.
  • Page 28 6.11 WHERE DO I ATTACH ELECTRODE PADS? Each person reacts differently to electronic nerve stimulation. If your application is not successful, contact your physician to find out what placement techniques are best for you. Do not use a smaller sized electrode than those originally provided by the manufacturer or authorised distributor.

  • Page 29: Cleaning And Maintenance

    7. Cleaning and maintenance Please comply fully with the following necessary daily maintenance requirements to ensure your unit’s long- term performance and safety. 7.1 CLEANING AND CARE FOR THE DEVICE 7.1.1 Ensure the unit is switched off first, remove the batteries then proceed to gently remove the electrodes from the leadwires and place in the packaging.
  • Page 30 7.2 MAINTENANCE 7.2.1 If your unit has any problems or faults please return to Body Clock Health Care Ltd at 108 George Lane, South Woodford, London, E18 1AD. 7.2.2 The user should not attempt to open the device, or attempt to make any modifications or repairs to the device or any of its accessories.

  • Page 31: Troubleshooting

    8. Troubleshooting Should any malfunction occur whilst using the device, please check the following table for solutions. Malfunction Common Reasons Countermeasure No display 1. There are foreign 1. Check and clean the after bodies in the battery compartment. replacing the compartment.
  • Page 32 Malfunction Common Reasons Countermeasure Automatic 1. The electrode loses 1. Check and place the halt in the connection with the electrode properly on treatment skin. the skin. 2. The battery is 2. Replace the battery. used up. Rash or tickle 1.

  • Page 33: Storage

    9. Storage 9.1 STORING THE ELECTRODE PADS AND LEAD WIRES 1. Turn off the device and gently remove the lead wires from the unit. 2. Gently remove the electrodes from your body and disconnect the lead wires from the electrodes. 3.

  • Page 34: Electromagnetic Compatibility

    11. Electromagnetic compatibility (EMC) tables Guidance and manufacturer’s declaration - electromagnetic emissions. The device is intended for use in the electromagnetic environment specified below. The customer or the user has to ensure that it is used in such environment. Emissions Test Compliance Electromagnetic environment - guidance...
  • Page 35 Guidance and manufacturer’s declaration - electromagnetic immunity The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is ensure in such environment. Immunity IEC 60601 Compliance Electromagnetic test Test level...
  • Page 36 Immunity IEC 60601 Compliance Electromagnetic test Test level level environment- guidance Voltage <5% UT not applicable dips, short (>95% dip applicable. (For INTERNALLY interruptions in UT) POWERED ME and voltage EQUIPMENT. for 0.5 cycle variations on 40% UT power supply (60% dip in input lines IEC 61000-...
  • Page 37 Immunity Comp- Electromagnetic test 60601 liance environment-guidance Test level level Radiated 10V/m 10V/m Portable and mobile RF RF IEC & table & table communications equipment 61000- should not be used close to any 4-3. part of a blood pressure monitor Monitor, including cables, than the recommended separation distance calculated from the equation...
  • Page 38 Field strengths from fixed transmitters such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered.
  • Page 39 Test specifications for Enclosure Port Immunity to RF wireless communications equipment (table 9) Test Band a) Service Modul- Max- Distance Immunity frequ- (MHz) ation imum Test Level ency power (V/m) (MHz) 380- TETRA 400 Pulse Modula- tion 18Hzb) 430- GMRS 460, FM c) FRS 460 ±5kHz...

  • Page 40: Explanation Of Symbols

    12. Explanation of Symbols Please read carefully! Electrical devices are recyclable material and should not be disposed of with household waste after use! Help us protect the environment and save resources and take this device to the appropriate collection points. Please contact the organisation which is responsible for waste disposal in your area if you have any questions.

  • Page 41: Warranty

    13. Warranty Guarantee Your 3-In-1 COMBO unit is guaranteed for a period of 1 year against manufacturer’s defects. The guarantee does not include leads, electrodes or batteries. Applies to purchases only.
  • Page 42 3-in1 COMBO treatment programs Mode Program Treatment Pulse rate Pulse width Max output time (min) (Hz) (us) 2-60 260-160 60/50/45/ 50/56/54 10/50/35 56/56/54 40/6/50 56/47/54 Default 30 TENS Adjustable: Default: 50 Default:180 (5-90) Adjustable: Adjustable: (2-100) (100-300) Default Default: 60 160-260 Adjustable: Adjustable:...
  • Page 44 Distributed by: Body Clock Health Care Ltd 108 George Lane, South Woodford, London E18 1AD UK. www.bodyclock.co.uk +44(0)2085329595 Shenzhen Roundwhale Technology Co., Ltd. Add: 202, 2/F, Building 27, Dafa Industrial Park Longxi Community, Longgang Street, Longgang District, Shenzhen, China. EU Representative: Shanghai International Holding Corp.
