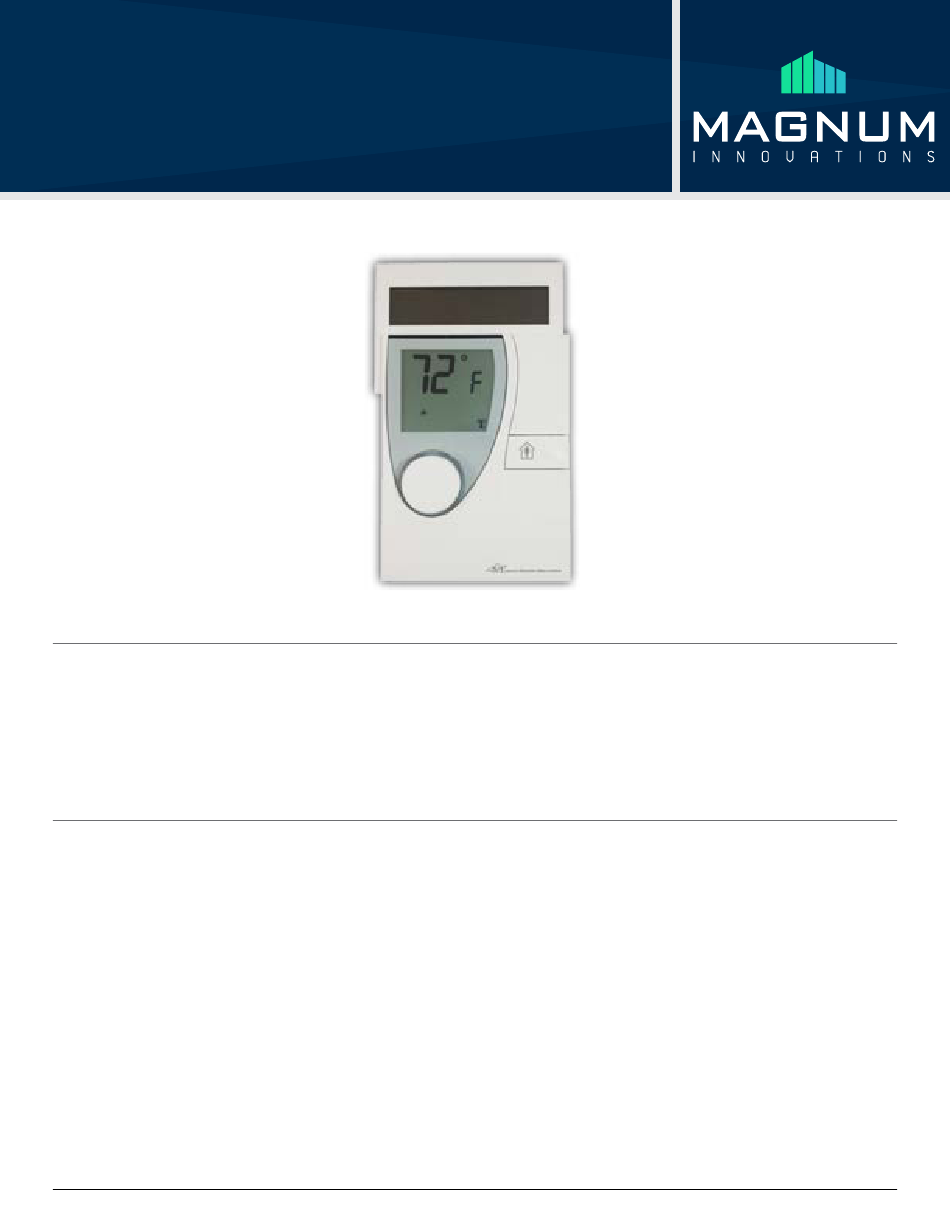

Mx-RBW
Room Control Module
Application
Solar-powered room control module with LCD and controls, with smart communication management for measuring room
temperature and for wireless transmission of measured values, occupancy, setpoint and weekly schedule.
The Mx-RBW supports the EnOcean radio standard ISO/IEC 14543-3-10 for direct communication with the Mx-D15 radio
small actuator or an EnOcean gateway. It uses EEP D2-10-01* for connection to an EnOcean gateway.
In combination with the Mx-D15, the Mx-RBW constitutes a functional unit for controlling the room temperature.
Safety Instructions
This data sheet contains information on installing and commissioning the product "Mx-RBW". Each person who carries out
work on this product must have read and understood this data sheet. If you have any questions that are not resolved by
this data sheet, you can obtain further information from the supplier or manufacturer. If the product is not used in accordance
with this data sheet, the protection provided will be impaired. Applicable regulations must be observed when installing
and using the device. Within the EU, these include regulations regarding occupational safety and accident prevention as
well as those from the VDE (Association for Electrical, Electronic & Information Technologies). If the device is used in other
countries, it is the responsibility of the system installer or operator to comply with local regulations. Mounting, installation and
commissioning work on the devices may only be carried out by qualified technicians. Qualified technicians are persons
who are familiar with the described product and who can assess given tasks and recognize possible dangers due to technical
training, knowledge and experience as well as knowledge of the appropriate regulations.
Magnum Innovations
5675 Hudson Industrial Pkwy, Suite 3 -
Hudson, OH 44236 -
phone 330.915.2382 - fax 330.529.5279 - www.magnum-innovations.com - info@magnum-innovations.com
Advertisement
Summary of Contents for Magnum Innovations Mx-RBW
- Page 1 Safety Instructions This data sheet contains information on installing and commissioning the product “Mx-RBW”. Each person who carries out work on this product must have read and understood this data sheet. If you have any questions that are not resolved by this data sheet, you can obtain further information from the supplier or manufacturer.
-
Page 2: Technical Specifications
Mx-RBW Room Control Module Technical Part Numbers (Frequency Dependant) M9-RBW (902 MHz - North America) Specifications M8-RBW (868 MHz - Europe and China) MJ-RBW (928 MHz - Japan) Power Dual power supply consisting of a solar cell and an inter- nal energy storage unit with priority management. -
Page 3: Radio Interface
Room Control Module Dimensions Radio Interface Communication with the radio partner is cyclical, bidirectional and includes an intelligent synchronization process. If the radio communication between the Mx-RBW and the Mx-D15 is interrupted, an internal resynchronization procedure starts automatically. Radio Connection -Gateway operation... -
Page 4: Installation
- Pair operation Installation CAUTION: This product description contains the specific settings and functions of the Mx-RBW. In addition to these instructions, the product description of the Mx-D15 must also be observed. General Installation Instructions: It is not always possible to freely select the installation location of devices which communicate wirelessly, as radio data transmission is influenced to a greater or lesser extent by structural or spatial factors. - Page 5 • The room control modules are to be mounted in a location where they are exposed to the air circulation in the room so that they can quickly and accurately measure the room temperature. • As a result of the autonomous operation and wireless installation of Mx-RBW, the selected installation location can be changed and optimized at any time without additional effort.
- Page 6 Mx-RBW Room Control Module Installation (continued) Wall Mounting - Flexible screw mounting Wall Mounting - Flexible adhesive mounting with double-sided transparent adhesive strips Magnum Innovations 5675 Hudson Industrial Pkwy, Suite 3 - Hudson, OH 44236 - phone 330.915.2382 - fax 330.529.5279 - www.magnum-innovations.com - info@magnum-innovations.com...
- Page 7 Indicators on the display Time display, temperature or setpoint = Initial display, adjustable Energy storage indicator The indicator appears when the remaining charge in the energy storage unit of the Mx-RBW is < 10% Weekly schedule (current daytime usage times)
- Page 8 Mx-RBW Room Control Module Operation, Display and Settings The Mx-RBW room control module is operated on three levels: the operating level, the configuration level and the service level. The descriptions for these can be found on the following pages. [Knob]...
- Page 9 Mx-RBW Room Control Module Operation, Display and Settings (continued) Summer Mode When the sun icon is displayed, it indicates that the device is operating in summer mode. The set- point that has been set for economy mode is activated for the controller.
- Page 10 Mx-RBW Room Control Module Operation, Display and Settings (continued) - Press the knob for 2 s. - Select the “Vacation mode” function using the knob. - Briefly press the knob The month display flashes. Vacation start, vacation end and the setpoint for the vacation time period are set in sequence: The day / month to be set flashes on the display.
- Page 11 Mx-RBW Room Control Module Operation, Display and Settings (continued) Setting the weekly schedule A weekly schedule is available with the following week days: - MOFR Monday - Friday - SASU Saturday - Sunday - MOSU Monday - Sunday - Individual days MO, TU, WE, TH, FR, SA and SU Up to 4 usage times can be set per day.
- Page 12 Mx-RBW Room Control Module Operation, Display and Settings (continued) Setting the setpoints for comfort mode and economy mode - Press the knob for 2 s. - Select the “Setpoint” (temperature display) function using the knob. - Press the knob. The setpoint for comfort mode flashes and can now be set. The icon is active.
- Page 13 Mx-RBW Room Control Module Operation, Display and Settings (continued) Setting the time, temperature or setpoint for the initial display - Press the knob for 2 s. - Turn the knob to select the “Setting the initial display” function dISP and press the knob.
- Page 14 Mx-RBW Room Control Module Operation, Display and Settings (continued) Service Level Access Code - Press the knob for 2 s. - Use the knob to select the “Service level” function SR. - Press the knob. - Enter the 4-digit access code 4321. Each digit is entered individually and the entry is confirmed by pressing the knob.
- Page 15 Mx-D15 radio partner and EnOcean gateway must also be observed. -Before starting the teach-in process, check for the radio symbol on the display of the Mx-RBW to determine if a radio partner was already taught-in. If so, delete it.
- Page 16 The “Taught-in radio partners’ status display” function allows you to check which radio partners are taught-in. Adding an additional radio actuator is not possible afterwards. To add additional radio partners, ALL Mx-D15 units which have been taught-in on the Mx-RBW must first be deleted. Afterwards, all Mx-D15 radio partners must be taught-in.
- Page 17 Room Control Module Operation, Display and Settings (continued) Deleting the radio partner of the Mx-RBW - Use the knob to select the “Delete” function dEL in the service level. - Press the knob until the radio icon on the display disappears (approx. 3 s).
- Page 18 The Mx-RBW does not display sent warnings via the bits “Custom Warning 1” and “Custom Warning 2”. Window Open Detection The Mx-RBW does not have an open window detection function. It only uses the information from the radio messages from taught-in actuators or from a connected gateway.
