- Page 1 MANUAL Ebikes EVO / AWD / NITRO / EASYGO USER MANUAL 2018 Ebikes MANUAL MANUEL Ebikes GEBRAUCHSANWEISUNG E-BIKES MANUALE Ebikes...
-
Page 2: Table Of Contents
EASYGO / EVO / NITRO / AWD USER MANUAL INTRODUCTION SAFETY INFORMATION OVERVIEW OF THE PEDAL-ASSIST BIKE PEDAL ASSISTANCE SYSTEM OPERATION Components of the Pedal Assistance System The Pedal Assistance System Assistance Modes of the Pedal Assistance System Range of the Pedal Assistance System... -
Page 3: Introduction
This manual is designed to help you with the functions and maintenance of your BH EMOTION pedal-assist bicycle. FAILURE TO OBSERVE THE WARNINGS INCLUDED IN THIS MANUAL MAY LEAD TO SERIOUS INJURY OR DEATH. -
Page 4: Safety Information
EASYGO / EVO / NITRO / AWD USER MANUAL SAFETY INFORMATION RIDING • Do not pedal or move the bicycle while the battery charger is connected. If you do, it may cause the power cable to become entangled in the pedals, which may damage the battery charger, the power cable and/or the charging port. - Page 5 USER MANUAL EASYGO / EVO / NITRO / AWD BATTERY • Keep the battery and battery charger out of the reach of children. • Do not touch the battery or battery charger during charging. As the battery pack and battery charger reach temperatures of 40–70°C during charging, touching them may lead to first degree burns.
-

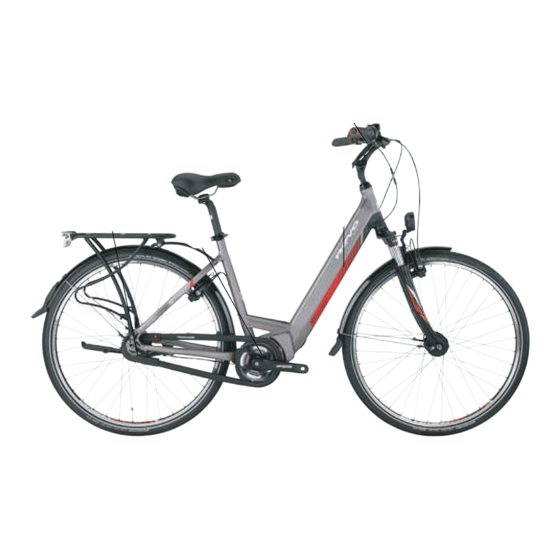

Page 6: Overview Of The Pedal-Assist Bike
EASYGO / EVO / NITRO / AWD USER MANUAL OVERVIEW OF THE PEDAL-ASSIST BIKE EVO/NITRO EMOTION Display Panel Rear motor Motor Torque sensor Ion Lithium battery EVO AWD Double Motor EMOTION Display Panel Motor Torque sensor Ion Lithium battery Front Motor... - Page 7 USER MANUAL EASYGO / EVO / NITRO / AWD EASY GO Rear motor EMOTION Display Panel Motor Torque sensor Ion Lithium battery...
-
Page 8: Pedal Assistance System Operation
PEDAL ASSISTANCE SYSTEM OPERATION Components of the Pedal Assistance System The BH EMOTION pedal assistance system consists of the following components: A motor, which drives the bicycle. The location of the motor identifi es the type of system used in the bicycle: Central Motor System. -
Page 9: The Pedal Assistance System
USER MANUAL EASYGO / EVO / NITRO / AWD The Pedal Assistance System The pedal assistance system is designed to provide the optimal amount of assisted power. It provides assistance within a standard range, based on factors such as the pedalling force, the speed of the bicycle and the drivetrain. -
Page 10: Starting Pedalling
EASYGO / EVO / NITRO / AWD USER MANUAL Starting Pedalling Before resting your feet on the pedals, you must sit on the seat and hold the handlebar fi rmly.Special care should be taken if you start pedalling when using a high assistance mode (100%/BOOST mode, or 70%/SPORT mode), as the motor will respond with maximum thrust and you may lose control. -
Page 11: Display Panel Operation
USER MANUAL EASYGO / EVO / NITRO / AWD Display Panel Operation The display panel provides the following operations and information screens: Installation of the Fixed or Removable Display Panel. The side display panel or remote control (for the central version of the display panel) can either be made fixed or removable, depending on the needs of the user, by simply inserting or removing an M3 screw, as shown in the image. - Page 12 EASYGO / EVO / NITRO / AWD USER MANUAL Switching the Pedal Assistance System on and off. The pedal assistance system is turned on by holding down the POWER button for 3 seconds. The pedal assistance system is turned off by holding down the POWER button again for 3 seconds. The bicycle can be used normally without any type of assistance.
- Page 13 USER MANUAL EASYGO / EVO / NITRO / AWD Turning the Bicycle Lights and the Backlighting of the Display Panel On and Off. Holding down the (-) button for 3 seconds will turn the backlighting of the display panel on and off.
- Page 14 EASYGO / EVO / NITRO / AWD USER MANUAL In order to increase the life of the battery and prevent a full discharge which may damage it, the assistance modes are limited based on the state of charge of the battery: •...
- Page 15 USER MANUAL EASYGO / EVO / NITRO / AWD Wheel Size Selection. The user can change the size of the wheel at any time. When doing so, the panel will display the size of the wheel's circumference in millimetres and its equivalent in inches (16, 20, 24, 26, 27’5, 28 or 29).
- Page 16 EASYGO / EVO / NITRO / AWD USER MANUAL Throttle Function up to 6 km/h. The pedal assistance system has a throttle function integrated into the display panel, limited to a maximum speed of 6 km/h, compliant with standard EN 15194. To activate the system's throttle, the user must hold down the (+) button for 3 seconds.
-
Page 17: Battery And Charger
Their performance decreases in extremely hot or cold environments. External port Charger • One additional characteristic of BH EMOTION lithium-ion batteries is that they have no “memory effect”, GREEN LIGHT: STANDBY and are not affected by incomplete discharging. Battery port •... -
Page 18: Energy Saving Modes
EASYGO / EVO / NITRO / AWD USER MANUAL Energy Saving Modes The battery has been designed to ensure a long service life. This is possible thanks to the energy saving modes that prevent inefficient consumption of the battery: •... -
Page 19: Battery Charging Process
USER MANUAL EASYGO / EVO / NITRO / AWD Carga de la batería Debido a su avanzada tecnología Ion-Litio, no es necesario esperar a la descarga completa de la batería antes Unsuitable Charging and Discharging Environments and Solutions de conectarla al cargador. Asimismo, tampoco es necesario realizar una carga al 100% antes que pueda volver a utilizarla. - Page 20 1. El usuario puede cargar la batería retirándola de la bolsa de sillín. EASYGO / EVO / NITRO / AWD USER MANUAL 2. El usuario debe apagar el cargador antes de conectarlo a la batería. •...
-
Page 21: Checking The Charge Level Of The Battery
USER MANUAL EASYGO / EVO / NITRO / AWD • Stopping the battery charging process does not damage the battery. NOTE • The battery achieves its maximum service life in ambient conditions of 15-25 °C Checking the Charge Level of the Battery The battery has an SOC battery with a scale with 5 LED lights indicating the state of charge. -
Page 22: Liability
EASYGO / EVO / NITRO / AWD USER MANUAL The bicycle has not been repaired in accordance with the instructions in the maintenance manual. The bicycle has been repaired or maintenance has been carried out on it by a dealer that is not authorised by BH. -
Page 23: Prolonged Storage
EVO, AWD and NITRO models: 48 V. EASYGO models: 36 V. • Capacity: EASYGO model: 250 Wh. EVO, AWD and NITRO models: 500 Wh or 600 Wh (depending on version). Central Display Panel • USB type: USB 2.0. • Output current: max. 1,000 mA. - Page 24 Isn't a BH bicycle extremely heavy? Not really, if you consider that the weight of BH EMOTION bicycles is between 15 kg and 30 kg, depending on the model, making them the lightest electric bicycles on the market. Pedal assistance means that a BH bike weighs 3-6 kg more than a standard bicycle with the same characteristics, because of the battery and the motor.
-
Page 25: Troubleshooting
USER MANUAL EASYGO / EVO / NITRO / AWD TROUBLESHOOTING U S E R M A N U A L Description Error Observations Check that the connection between the motor and the con System overcurrent troller is correct. If not, replace the controller.
