SigTEL Standalone EVCS Quick Start Installation Manual

SigTEL (1 to 16 Lines) Standalone EVCS - Quick Start Installation Guide
THIS GUIDE IS ONLY FOR SUITABLY SKILLED AND EXPERIENCED INSTALLERS OF EMERGENCY VOICE COMMUNICATION SYSTEMS (EVCS) and summarises key information provided in the
full manual (Document No. DAU0000091). Section numbers, e.g.

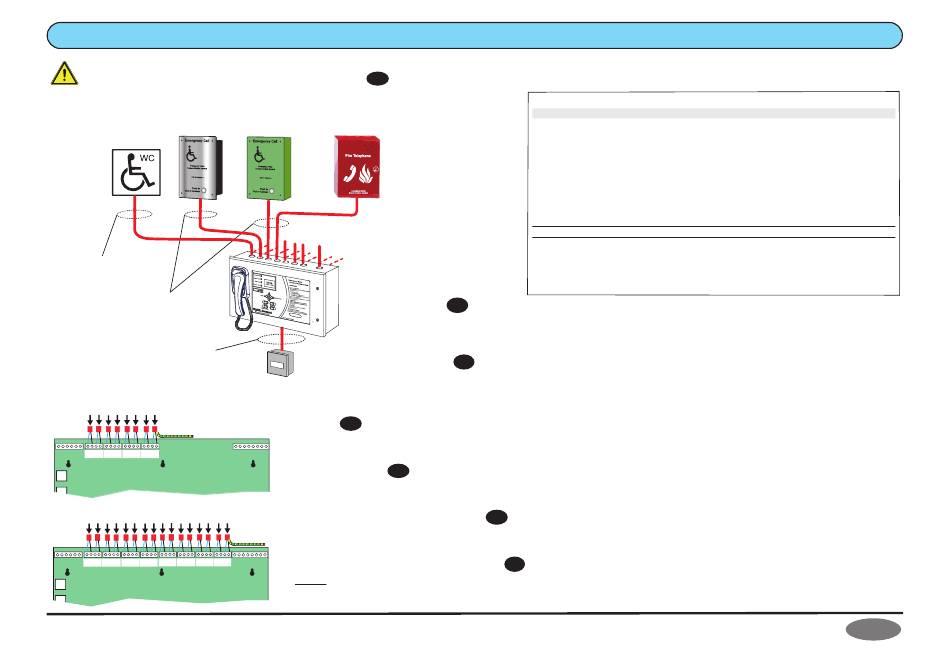

SigTEL EVCS Typical Wiring Overview

EVC302F
NC951
Fig 1
NC951 lines: 2-core cable.
Outstation lines: 2-core enhanced
2
fire rated cable (1.0 to 1.5 mm , up
)
to 1 km in length.
Power supply: Fixed wiring, 2-core
2
enhanced fire rated cable (0.75 mm
2
to 2.5 mm ) fed from a switched spur,
fused at 3 amps.
8 x Extensions from Outstations & NC951
All screens connect
to Earth terminal
I/P A I/P B I/P C
+ - + - + -
+ - + - + - + - + - + - + - + -
L1 L2 L3 L4 L5 L6 L7 L8
ECU-8 or ECU-8NT
B
Master Exchange PCB
C
Fig 2
16 x Extensions from Outstations & NC951
I/P A I/P B I/P C
+ - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + -
L9 L10 L11 L12 L13 L14 L15 L16
L1 L2 L3 L4 L5 L6 L7 L8
ECU-16
B
Master Exchange PCB
C
C D
SigTEL
Emergency Voice
Communication System
6.1 , reference sections in the full manual with additional information.
EVC302GS EVC301RPO
ECU-16 (shown) has
16 available extensions.
ECU-8 has eight and
ECU-4 has four.
16 x
extensions

Install the EVCS

Location

1
2
3
4
Site all equipment indoors in well-lit areas, free from obstruction. Site controllers in the control room or lobby, 1.4
metres above final floor level (FFL). Fit Type A (fire telephone) outstations in fire fighting lobbies and fire access points,
1.3 to 1.4 metres above FFL. Fit Type B (disabled refuge) outstations in disabled refuges, 0.9 to 1.0 metre above FFL.
ECU-16
Controller

Mounting

F U S E
Remove base PCBs before first fix installation to protect them and expose the base mounting holes. Wall mount the
3A fused spur
controllers, either surface or semi-flush. Fix the base securely onto a wall using No.8 round-head, or countersunk
screws. After mounting, remove any dust/swarf and re-install base PCBs. Ensure all connecting looms are refitted.

Wiring

4
See Fig 1 above for cable types. Install wiring in accordance with the relevant national, regional or local regulations (in the UK this is the IEE
N/O C N/C 0V +24 OP3 OP2 OP1
Wiring Regs BS 7671 and BS 5839 Part 1. Use enhanced fire-rated cables from the controlller to the Type A & B outstations and the power supply.

Test Extensions

12
Test all extensions for faults before terminating to the controller using a FITT EVC line tester (see component list above).
CAUTION: DO NOT use an Insulation Resistance Tester with any devices connected as they will be destroyed and the warranty will be void.
Fit Outstations & NC951 Interface
All screens connect
Maximum recommended cable distance to the outstations is 1 km, beyond which audio quality may degrade. For wiring and connection
to Earth terminal
details refer to Type A outstation instructions (Doc. No. DCM0003819) and Type B outstation instructions (Doc. No. DAU0302000).
N/O C N/C 0V +24 OP3 OP2 OP1

Connect Extensions to the Controller

Do not connect extensions to the controller until they have been tested, fault-free and suitable cable glands fitted. Connect extensions
directly to the Master Exchange PCB inside the controller (see Fig 2 left). Connect screens to the earth terminal in the back of the enclosure.
Approved Document No. DAU0000093 Rev 3
Part No. Description
ECU-4 4 Line Master EVC Controller c/w handset & display, requires two 12 V 7 Ah batteries
ECU-8 8 Line Master EVC Controller c/w handset & display, requires two 12 V 7 Ah batteries
ECU-16 16 Line Master EVC Controller c/w handset & display, requires two 12 V 7 Ah batteries
ECU-8NT 8 Line Master EVC Controller (no handset) c/w display, requires two 12 V 7 Ah batteries
EVC302F/GF Disabled Refuge (Type B) Outstation, flush mounting, stainless steel ('G' - Green fascia)
EVC302S/GS Disabled Refuge (Type B) Outstation, surface mounting, stainless steel ('G' - Green fascia)
EVC301RPO Red Fire Telephone (Type A) Outstation c/w handset (push to open)
EVC301RLK Red Fire Telephone (Type A) Outstation c/w handset (lift lock)
BF359/1 Weatherproof enclosure for EVC302F/GF
BF359/3D Stainless steel enclosure for controller (ECU-4 / ECU-8 / ECU-16)
NC951 Disabled Persons Toilet Alarm (DPTA)
FITT EVC Line Tester
BC286/2 24 V 7 Ah battery (2 x 12 V) used with controller (ECU-4 / ECU-8 / ECU-16 / ECU-8NT)
AFP385 Grey flush bezel for controller (ECU-4 / ECU-8 / ECU-16 / ECU-8NT)
T-BEZ301 Red flush bezel for EVC301RPO and EVC301RLK
ECU423 PC programming software
