Summary of Contents for Colonial Label TLP2824 PLUS

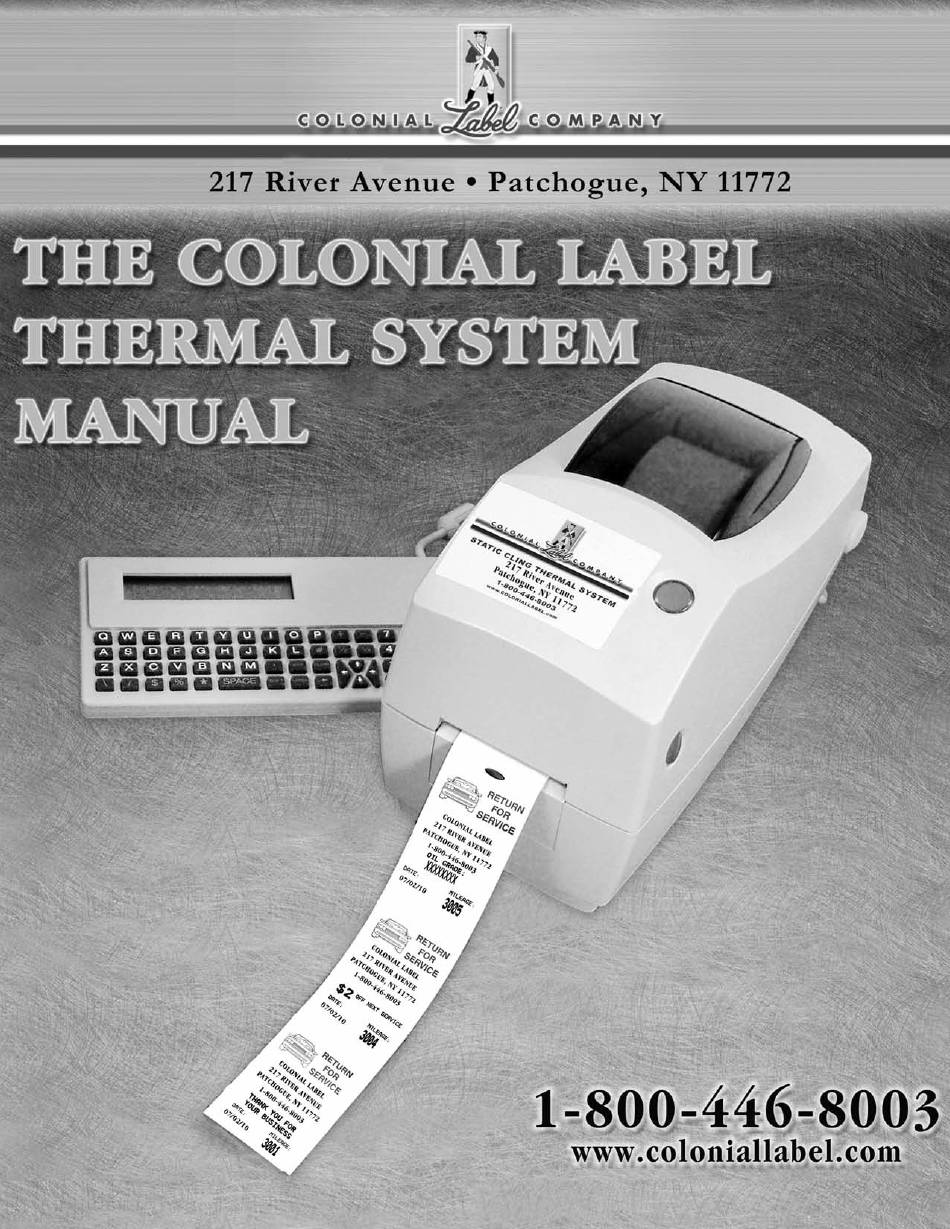

- Page 1 For Printer Model TLP2824 PLUS...
- Page 2 THE NEW STATIC CLING PLUS SYSTEM INCLUDES: • Thermal Printer (1) • Keypad (1) • Ribbon (1) with Cardboard Ribbon Core (Retain for continuous use) (Both installed in printer) • Power Supply & Cord • Cleaning Pen **NEW PROGRAMMING FORMS # 1-70** •...
- Page 3 HOW TO SET UP THE NEW PRINTER Plug power cord into power supply then into back of printer and into power out- let. Plug keypad into back of printer and tighten screws securely Check to make sure ribbon is in tight. It could come loose in shipping. * ne way to make sure the ribbon is in tight is to open the printer and pull down the ribbon carriage.
-
Page 4: Loading Labels
LOADING LABELS: • Power printer off by the switch on the bottom right hand side • Open printer cover. • Load labels face up into holder and thread through the black label guides. Adjust label guide by using the green control wheel (on right). -
Page 5: Loading Ribbon
LOADING RIBBON: • Open printer cover. Pull ribbon carriage forward. • Attach ribbon roll to spring load closest to back of printer making sure the notches on the ribbon core and the notches on the machine are matching up together on the left side. Step 1 Prepare Ribbon Step 2 Install Supply Roll... - Page 6 Step 3 Install Take-Up Core Align Notches onto Hub Spokes Press onto Hub • Using the roll control (on left) turn clockwise until ribbon shows all black. Close cover. (Print head will not lock in place.) **NOTE: RETAIN THE CARDBOARD CORE SINCE YOU WILL NEED IT EACH TIME YOU REPLACE YOUR RIBBON! **DO NOT REUSE THE RIBBON, IT WILL CAUSE...
- Page 7 M INTEN NCE Cleaning the Print head The manufacturer suggests cleaning the print head every time you change the ribbon to keep the print quality optimal and to increase the life of the print head. *** C UTION*** The print head may be hot and could cause severe burns. llow the print head to cool for 5 minutes before cleaning.
- Page 8 • • • • • • • **NOTE** • You will only have to enter the “DATE” once daily unless you change the template or shut the printer off. • When printing the next label if you want the same return date as the last label you will only need to hit enter.
- Page 9 Colonial Label Template Chart Form names are the numbers that are under each sample label in the back of the Manual. If you are using generic stock labels and want your company name, address and phone number to print out on the label just use the form number under each label (1-70). If you have custom labels and do not want your company name, address and phone number to print out add a letter “c”...
- Page 10 Form #2 Form #3 Form #4 Form #1 Form #6 Form #7 Form #8 Form #5 Form #9 Form #10...
- Page 11 Form #12 Form #13 Form #14 Form #11 Form #16 Form #17 Form #18 Form #15 Form #20 Form #19...
- Page 12 Form #22 Form #23 Form #24 Form #21 Form #26 Form #27 Form #28 Form #25 Form #30 Form #29...
- Page 13 Form #32 Form #33 Form #34 Form #31 Form #36 Form #37 Form #38 Form #35 Form #40 Form #39...
- Page 14 Form #42 Form #43 Form #44 Form #41 Form #46 Form #47 Form #48 Form #45 Form #50 Form #49...
- Page 15 Form #52 Form #53 Form #54 Form #51 Form #56 Form #57 Form #58 Form #55 Form #60 Form #59...
- Page 16 Form #62 Form #63 Form #64 Form #61 Form #68 Form #67 Form #66 Form #65 Form #70 Form #69...
