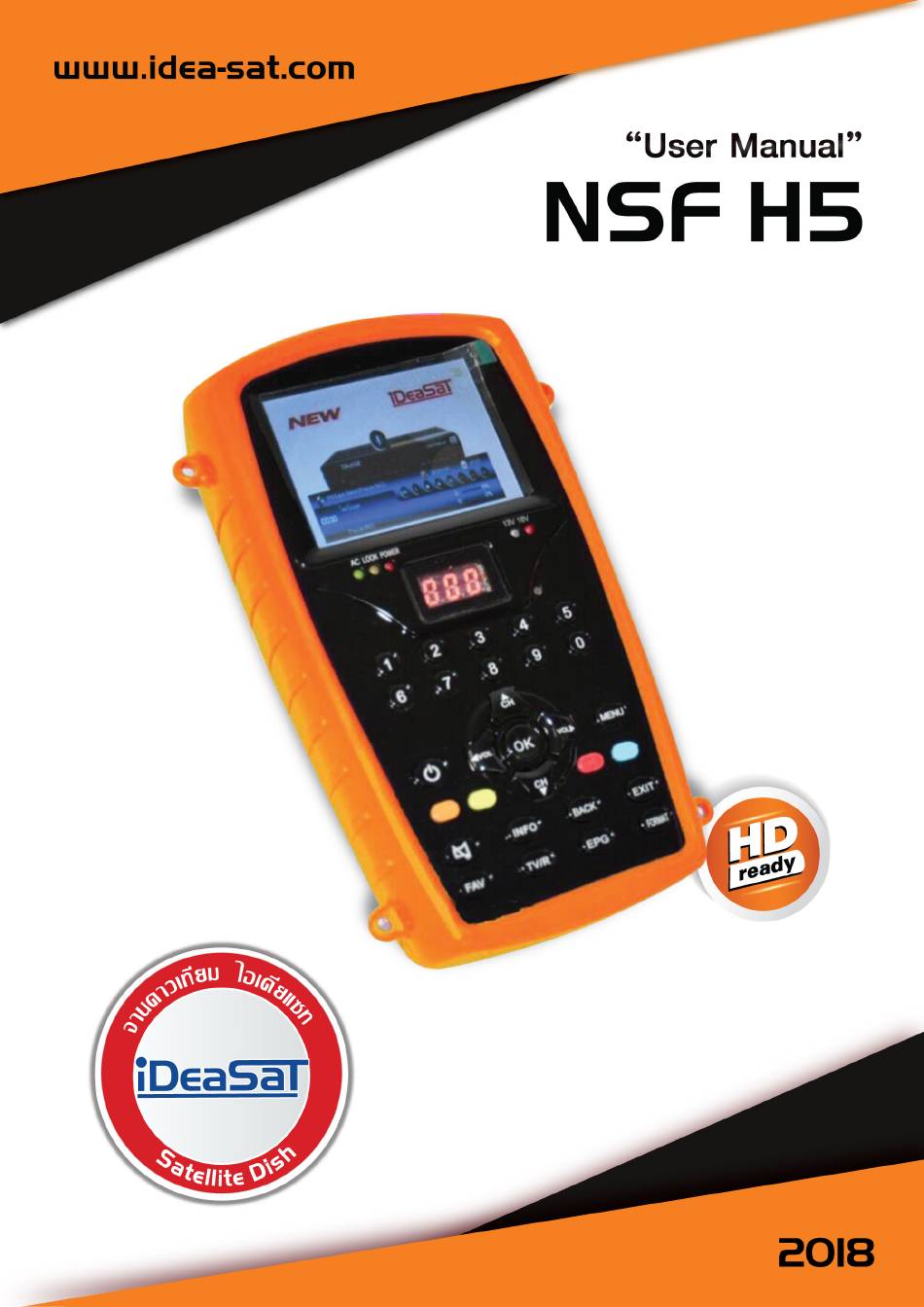

Summary of Contents for iDeaSat NSF H5
- Page 2 Safety Precaution This STB has been designed and manufactured to satisfy the international safety standards. Please read the following safety precautions carefully before operating this receiver. Main Supply: Before operating, please check the units operating voltage is 12V DC Overload: Do not overload a wall outlet, extension cord or adapter, neither use damaged power cord or touch it with wet hand as this may result in electric shock.
-
Page 3: General Features
I. Reference 1.1 General Features DVB-S/DVB-S2 Satellite Compliant (MPEG-II/ MPEG-IV/ H.264) SCPC & MCPC receivable from Ku and C band satellites Universal, Single, Single S & C Band Wideband LNB Sensitive Tuner with Loop-Through DiSEqC1.0/1.1/1.2/1.3 (USALS) Blind search supported PAL/NTSC Conversion True full Color (16 bits) on screen display (OSD) 8 favorite group and parental lock supported Multi-language menu supported... -
Page 4: Front Panel
1.2 Accessories Users manual DC-OUT line LNB line Uer’s Manual Product Overview 2.1FrontPanel 1. Screen: The screen displays all information about the product. 2. 13v/18v Led: LNB power indicator. -
Page 5: Rear Panel
AC/Look/Power:Power indicator. 4.Number key(0-9):Enter a TV/radio channel number or menu option number. 5. CH+: Changes program. tc "21. CH / "} 6. Power: tc "1. POWER\: "}Switch between operation and standby modes. "Switch the receiver on or off."} 7. Vol-: Change volume in viewing mode. 8.OK: Confirm the selected operation or display the channel list while watching a programme. - Page 6 2. HD OUT: Connect to the TV with a HDMI cable. 3. AV: Connect to the TV with a RCA cable. 4.DC12V : Power On/Off. III. STB You should installation the receiver when powering on your product for the first time after purchase.
- Page 7 Ⅳ. Installation Highlighted to Installation, press the OK button to enter into the installation menu. Installation menu, you can add / edit / delete and search the Satellites/ TPs. Press Menu / Exit button to exit from the current menu. The on-screen display of Installation is shown as follows.
-
Page 8: Antenna Setting
You can use the OK button select or de-select the satellite. Have a icon is displayed behind the satellite name if you select. Search: press the blue button, then starting satellite search NO.1: Press the NO.1 button to quickly enter the antenna setting menu. Notes: You can also edit, add and delete in the TP List menu. -
Page 9: Search Channel
4.3 Search channel Enter the Single Satellite Search menu as shown as below: 1) If you want single satellite search, please enter the Single Satellite Search menu; if you want multi satellite search, please enter to the Multi Satellite Search menu. 2) FTA Only: Select Yes or No in this field. - Page 10 FAV: Press the FAV button to add the desired channel into Fav Group. You can also rename the Fav Group name in the Favorite menu Lock: Press the Red button input the password to lock /Unlock the channel Skip: Press the Green button to enter the Skip edit mode. Then press the OK button to set up (or cancel) Skip.
-
Page 11: System Setup
Delete: Press the Blue button to enter the edit mode. Then press the Blue button to delete the channels. If you want delete all channels, please into the Delete All menu. VI. System setup In the Main Menu, select System to enter the System menu window as shown as follows: 6.1 Language Enter the Main menu->System Setup->... -
Page 12: Local Time Setting
First Audio / Second Audio: Set the default first/second audio language in this field. Subtitle Language: Set the default subtitle language. Teletext: Set the default Teletext language. 6.2 TV System The on-screen display of TV Setting is shown as follows: Video Resolution 480p /480i/ 576p/576i / 720p / 1080i / 1080p Aspect Mode... -
Page 13: Parental Lock
Select an item in Timer List and press the OK button to enter the Timer Setting menu. Timer Service: Select the timer mode. Wakeup Channel: Select a channel which is played when the system is waken up at the specified time. Wakeup Date &... -
Page 14: Factory Setting
as follows: LNB Power: select On or Off. Channel Play Type: select the All/free/scrambled when user used the up/down button change channel on full screen. Beeper: when the TP have signal, the beeper menu setting on, it have audio and setting off, no have audio. -
Page 15: Troubleshooting
7.2 S/w Upgrade by OTA Enter the main menu-> Software Upgrade->S/W Upgrade By OTA menu. 1）connect the 78.5°satellite in LNB cable. 2）Make sure the TP 4040v30000 has signal. 3） Highligt the “Start” menu . Then press the Ok button you can upgrade by OTA. - Page 16 • Check the brightness level of the TV. • Check if the channel is currently on air. Contact the broadcaster to ensure that the channel is running. 3. Poor picture/sound quality • Make sure there is no mobile phone or microwave oven near the product. •...
