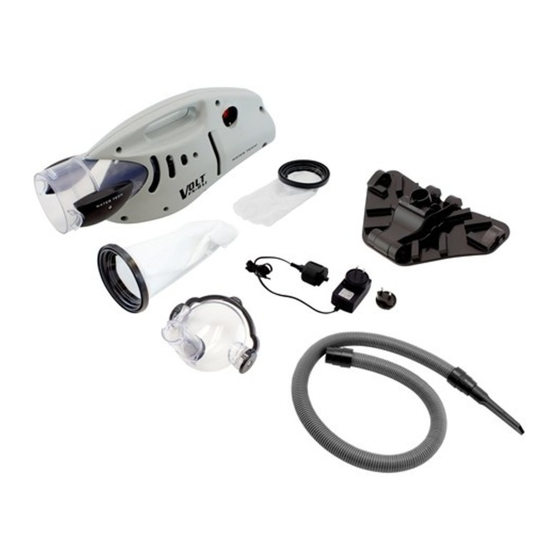

Volt Water Tech FX-8Li Installation Manual

Volt Water Tech FX-8Li Installation Manual

Upgrading the motor box nimh to lithium
Hide thumbs Also See for Water Tech FX-8Li:

Advertisement

Quick Links

No cover needed

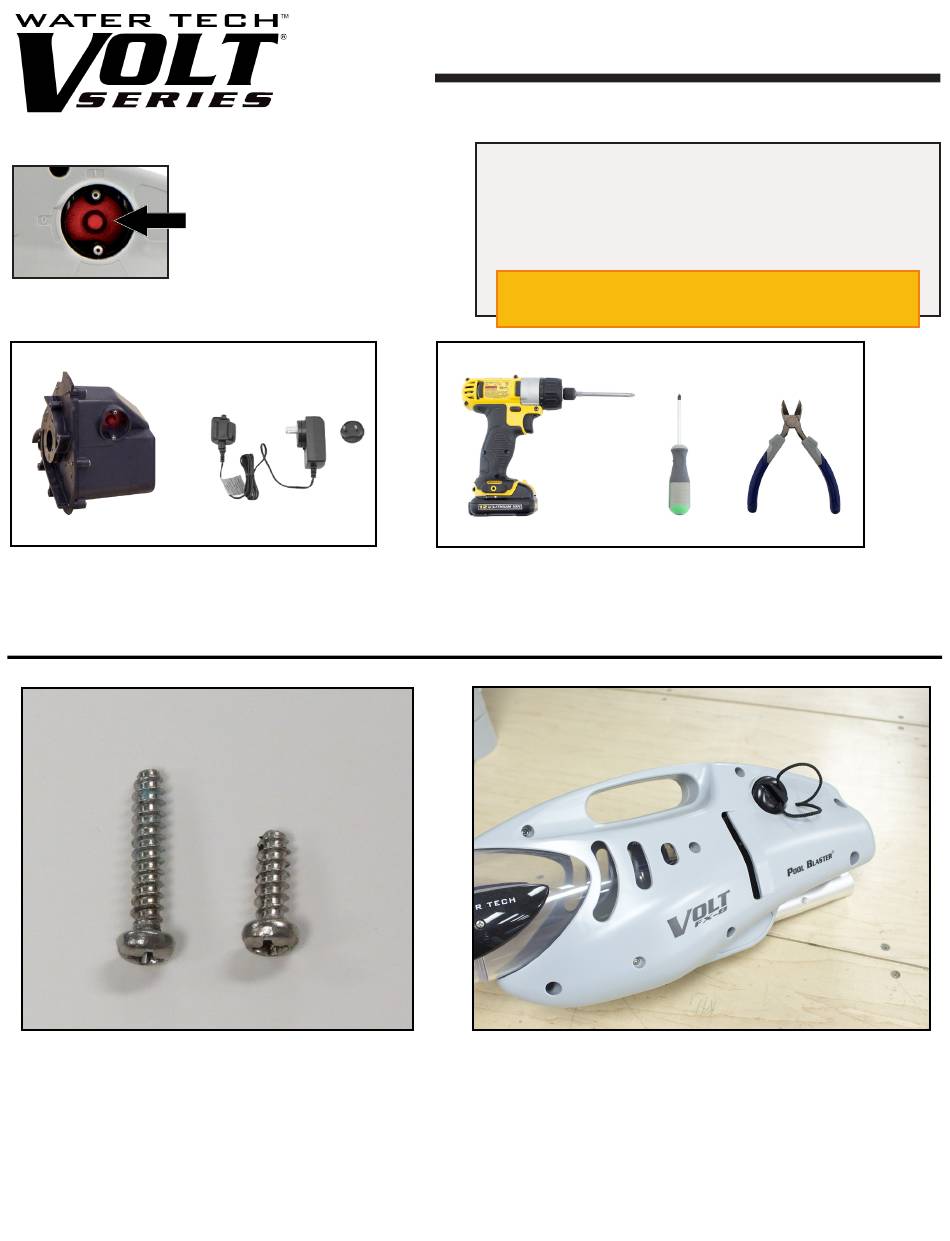

Your new kit includes:

Motor Box with ON/OFF Button (P30X003LI)
Charger (LC099-3S-US-EU)
There are two sizes of screws used in
the Water Tech
VOLT FX-8Li. While
TM
disassembling the machine, make note of
which screw is used where.

Installation Guide - NiMH to Lithium

Upgrading the Water Tech
Why did the motor box kit come with a charger?
This complete kit replaces all of the electronics for the
Water Tech
will be repaired and increase the longevity of your battery.
Need Help? Contact Us at (732) 967-9888 EXT: 230
Volt unit and will guarantee that your machine
TM
You must replace the motor box and
charger when repairing the unit

You will need the following tools:

Phillips screwdriver or battery
powered screwdriver and a cutting tool
low
(set drill at
torque setting)

STEP 1: Place the unit on a workbench

with the ON/OFF knob facing up.
Volt FX-8Li Motor Box
TM
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Water Tech FX-8Li and is the answer not in the manual?

Questions and answers

Summary of Contents for Volt Water Tech FX-8Li

  • Page 1 This complete kit replaces all of the electronics for the No cover needed Water Tech Volt unit and will guarantee that your machine will be repaired and increase the longevity of your battery. You must replace the motor box and...
  • Page 2 Installation Guide - NiMH to Lithium Need Help? Contact Us at (732) 967-9888 EXT: 230 Upgrading the Water Tech Volt FX-8Li Motor Box STEP 2: Remove the eight (8) screws from the side of the shell and separate shell from unit. Place screws to the side.
  • Page 3 Installation Guide - NiMH to Lithium Need Help? Contact Us at (732) 967-9888 EXT: 230 Upgrading the Water Tech Volt FX-8Li Motor Box STEP 3a: Remove the lanyard by cutting it. Dispose of the lanyard and knob as they are no longer needed.
  • Page 4 Installation Guide - NiMH to Lithium Need Help? Contact Us at (732) 967-9888 EXT: 230 Upgrading the Water Tech Volt FX-8Li Motor Box STEP 5: Remove the five (5) screws that hold the funnel to the motor box and separate the motor box from the funnel.
  • Page 5 Installation Guide - NiMH to Lithium Need Help? Contact Us at (732) 967-9888 EXT: 230 Upgrading the Water Tech Volt FX-8Li Motor Box STEP 7: Turn the funnel / motor box / pole attachment on its side (motor box opening facing away from you).
  • Page 6 Installation Guide - NiMH to Lithium Need Help? Contact Us at (732) 967-9888 EXT: 230 Upgrading the Water Tech Volt FX-8Li Motor Box STEP 9: Attach the charging adapter to the unit to make sure it fits securely. http://watertechcorp.com/switch How to properly charge your unit...
