Shukla Medical Xtract-All Nail Winquist III MSK1017 Surgical Technique Manual

Universal im nail extraction system
Hide thumbs

Advertisement

Quick Links

Download this manual
...Because Every Minute Counts
®
Surgical Technique Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the Xtract-All Nail Winquist III MSK1017 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Shukla Medical Xtract-All Nail Winquist III MSK1017

Summary of Contents for Shukla Medical Xtract-All Nail Winquist III MSK1017

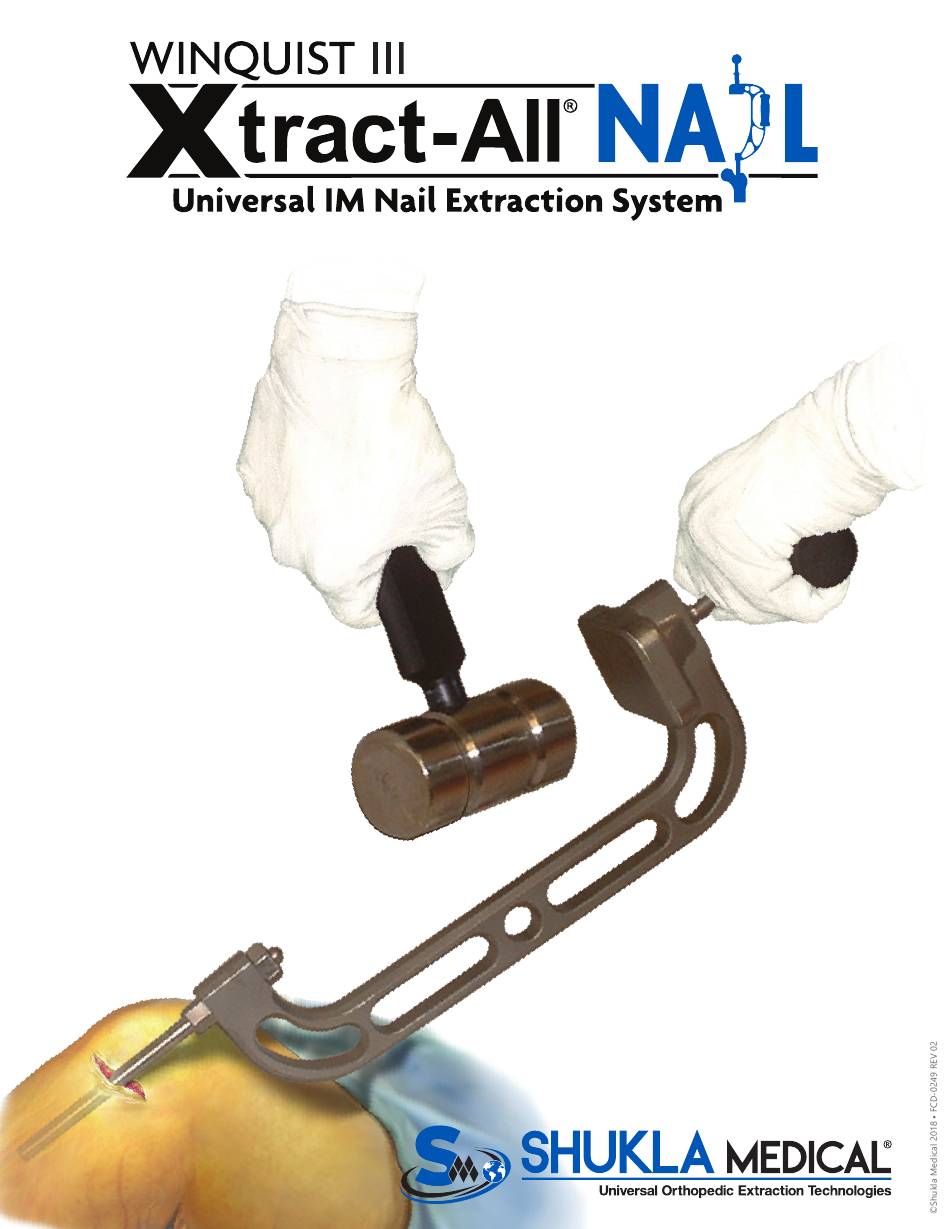

  • Page 1 ...Because Every Minute Counts ® Surgical Technique Guide...

  • Page 2: Table Of Contents

    Xtract-All Nail (MSK1017) Winquist III Universal IM Nail Extraction System ® Contents Introduction ..................................3 List of Components ................................4-9 Case #1 ......................................5 Case #2 • Level 1 ..................................6 Case #2 • Level 2 ..................................7 Surgical Technique ................................8-10 Methods of Extraction .................................

  • Page 3: Introduction

    For detailed sterilization instructions, please refer to industry standards ANSI/AAMI ST79:2012 & A1:2012 and ANSI/AAMI ST8:2001. NOTE: All Shukla Medical surgical instruments require manual cleaning with a neutral pH cleanser. Open and disassemble all instruments, making sure to remove all contamination during cleaning. Instruments must be reassembled prior to sterilization.
  • Page 4 WIN27 Conical Extractor MDA010008 8mm Standard Hex Tip *Extractor tips (WIN1 through WIN17) are single-use only and must be discarded after use ® Emergo Europe Shukla Medical CONSULT MKS1017 NON-STERILE Prinsessegracht 20 8300 Sheen Drive INSTRUCTIONS 2514 AP The Hague St.

  • Page 5: List Of Components

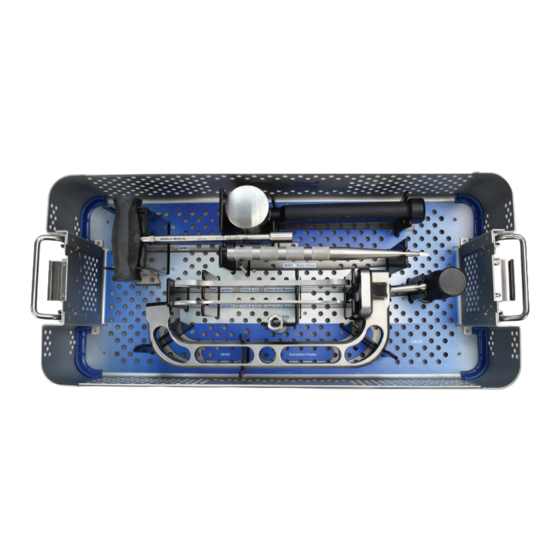

    Xtract-All Nail (MSK1017) Winquist III Universal IM Nail Extraction System ® List of Components: Case #1 MKS1017 Case #1 CA133 Case 1: Body CA134 Case 1: Lid MKS1017 Case #1 MMM5 Mallet MIWE C-Frame MIWD T-Handle MIWC Bone Chisel MIWWA 9/32” & 11/16” Double Open End Wrench MIWW 1/2”...

  • Page 6: Case #2 • Level 1

    Xtract-All Nail (MSK1017) Winquist III Universal IM Nail Extraction System ® List of Components: Case #2 MKS1017 Case #2 CA135 Case 2: Body CA136 Case 2: Lid TR001 Case 2: Tray MKS1017 Case #2 Level #1 Single-Use Only Extractors WIN18 Socket Wrench for Extractor Tips WIN1 WIN9 WIN19 Extractor Body...

  • Page 7: Case #2 • Level 2

    Xtract-All Nail (MSK1017) Winquist III Universal IM Nail Extraction System ® List of Components: Case #2 MKS1017 Case #2 Level #2 MDE19250 1/4”sq. Adapter HD233-M01 Ratcheting T-Handle MDA010006 6mm Standard Hex Tip MDA011006 6mm Female Hex Tip MHRS0311 Cannulated Ratcheting In-Line Handle MDA010008 8mm Standard Hex Tip MDS030020 2.0mm Reverse Capture Hex Driver MDS060080 T8 Reverse Capture Hex Driver...

  • Page 8: Surgical Technique

    Xtract-All Nail (MSK1017) Winquist III Universal IM Nail Extraction System ® Surgical Technique Remove Bone Screws Prepare Nail for Extraction Determine size of bone screw & select appropriate Remove excess bone around proximal neck of IM nail screwdriver shaft. with Bone Chisel (MIWC). (Fig. B) Insert screwdriver shaft into ratcheting handle &...

  • Page 9: Methods Of Extraction

    Xtract-All Nail (MSK1017) Winquist III Universal IM Nail Extraction System ® Option A: Threaded Extractor Tips (Single-Use) WIN1-WIN19 Select compatible extraction tip by matching threads on IM nail to an extractor tip (WIN1 through WIN17). (Fig. D) Tighten the tip into the extractor body (WIN19) using the 9/32” & 11/16” wrenches (MIWWA and MIWW). (Fig. E) Figure D Figure E Option B: Conical Extractor...
  • Page 10 Xtract-All Nail (MSK1017) Winquist III Universal IM Nail Extraction System ® Surgical Technique Continued Build Extractor Assembly Connect T-handle (MIWD) securely to selected Figure I extractor. Screw extractor into IM nail. (Fig. I) Once extractor is securely attached to IM nail, remove the t-handle, applying counter-torque with the 1/2”...

  • Page 11: Extractor Compatibility Matrix

    IM Nail Extractor Compatibility Matrix Winquist III Single Brand Extractor Driver Adapter Tip # Acumed Polarus Humeral 1/4”-20 UNC-2A WIN3 ✓ 2.5mm† Hex & 3.5mm† Hex ® ® ✓ Depuy/Ace ® ® Humeral 1/4”-20 UNC-2A WIN3 2.5mm† Hex & 3.5mm† Hex ✓...
  • Page 12 Xtract-All Nail (MKS1017) Winquist III Universal IM Nail Extraction System ® Call us at 888-4-SHUKLA (888-474-8552) or visit www.ShuklaMedical.com ...Because Every Minute Counts ® Shukla Medical T: 888-4-SHUKLA 8300 Sheen Drive T: 888-474-8552 St. Petersburg, FL 33709 F: 727-626-2770 www.ShuklaMedical.com...
