Assistive Sound AS201R Quick Start Manual

Uhf - pll 16-channel switchable tour guide and wireless microphone system
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

AS201R
UHF - PLL 16-Channel switchable Tour
Guide and wireless microphone system.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AS201R and is the answer not in the manual?

Questions and answers

Summary of Contents for Assistive Sound AS201R

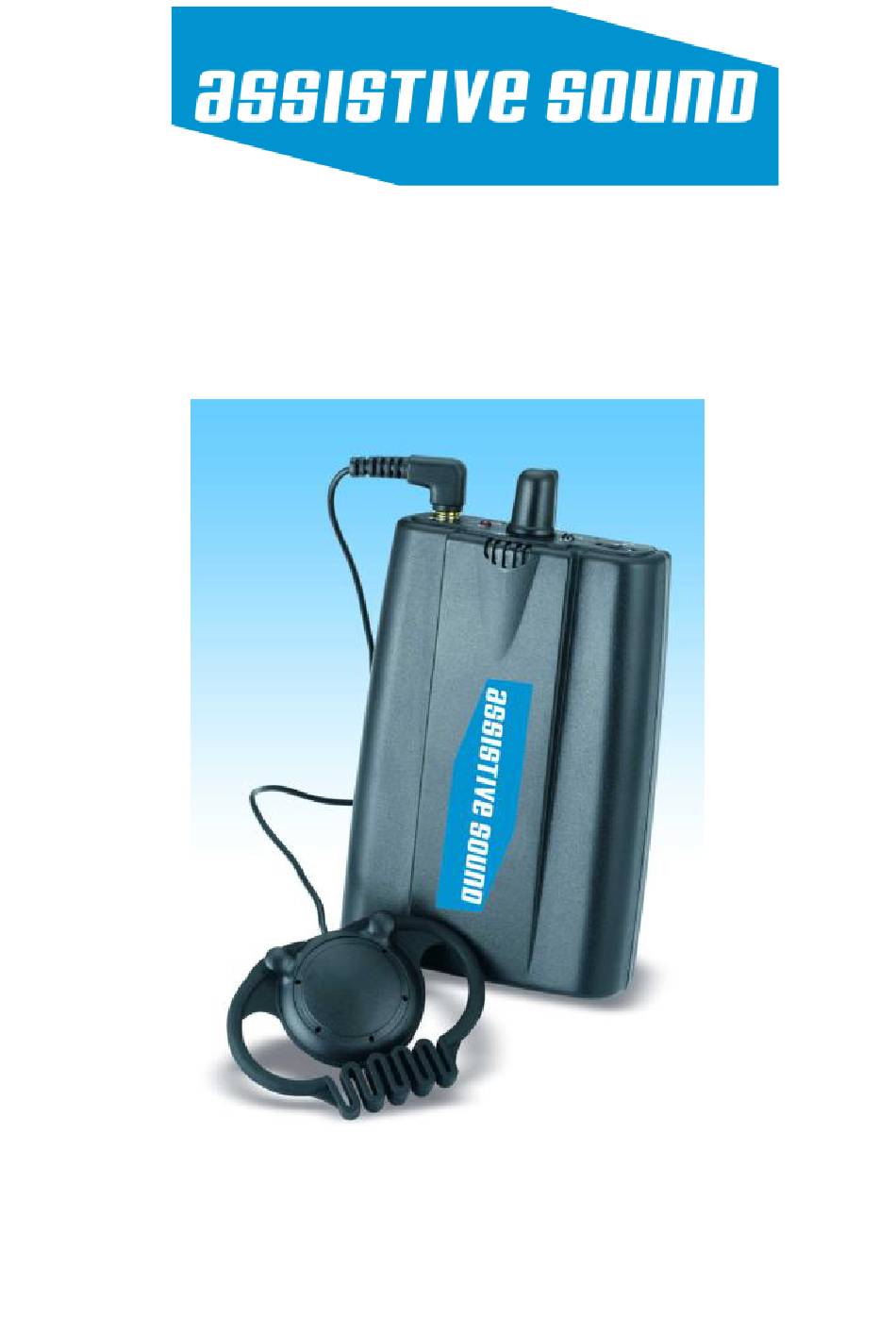

  • Page 1 AS201R UHF - PLL 16-Channel switchable Tour Guide and wireless microphone system.

  • Page 2: Descriptions Of Functions

    Thank you for choosing this UHF - PLL 16 Channel switchable tour guide and wireless microphone system AS201R. This manual includes the complete functions and operations of the tour guide and wireless microphone systems. Please read this manual carefully in order to operate and use the system to its fullest potential.
  • Page 3 AS201R Beltpack receiver Installation and operation Inserting the batteries into the transmitter. Open the battery cover by pushing the open mark and sliding the cover down. Insert two 1.5V AA type dry cell batteries or two 1.2V AA size NiMH rechargeable batteries into the battery box.
  • Page 4 AS201R Beltpack receiver AS201R Receiver operation. The receiver has one switch only for power and volume adjustment. Turn the switch clockwise to active the receiver and adjust volume. Turn counter- clockwise to deactivate the receiver and minimize volume. When turning on the receiver, the PL light will flash one time red, this indicates that the receiver is functioning normally.

  • Page 5: Maintenance

    AS201R Beltpack receiver Maintenance Avoid excessive heat Don’t leave the receiver in the hot sun, on a radiator or near other sources of high temperature. Avoid rough handling The receiver may be damaged if dropped. Fully charged batteries Before storing, fully recharge the batteries.

  • Page 6: Troubleshooting

    AS201R Beltpack receiver Trouble shooting Problem Solution No power Check if the power switch is turned on. Turn off the unit and check if the batteries run out or are not installed properly No sound Check if the transmitter and the receiver use the same channel.
  • Page 7 AS201R Beltpack receiver Feature AS201R receiver, with build-in speaker, works with an earphone. Aux out can be connected with an amplifier for amplification applications. AS201R receiver can use a DC+5V switching adapter to provide power and can use chargers (AS402C, AS412C, AS436C or AS450C) for recharging internal batteries.

  • Page 8: Specifications

    AS201R Beltpack receiver Specifications AS201R Beltpack receiver  Carrier frequency 863~865 MHz range  Frequency 16 Pre-programmed switchable frequencies  Frequency response 150Hz ~ 7kHz (Earphone out) 150Hz ~ 12kHz (Aux out)  Dynamic range >80 dB  T.H.D. <2% ...
