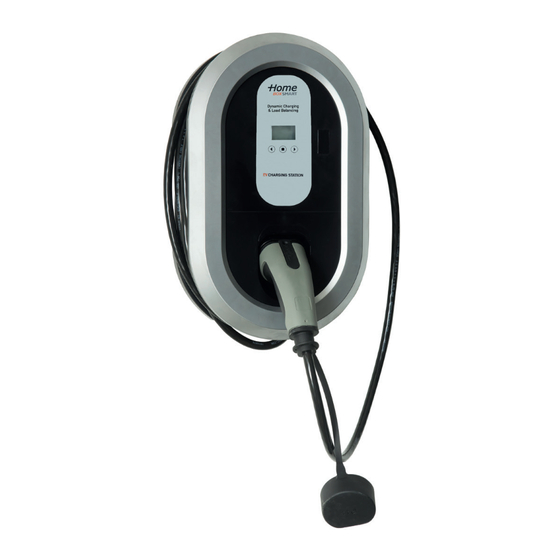

Summary of Contents for Ratio Electric HOME BOX SMART
- Page 1 HOME BOX SMART DYNAMIC CHARGING M a n u a l...
-
Page 2: Table Of Contents
C O N T E N T S IMPORTANT SAFETY INSTRUCTION SAFETY INFORMATIO INSTALLATION HOME BOX INSTALLATION SENSORBOX AND CURRENT TRANSFORMERS CONFIGURING THE HOME BOX SMART ALL MENU OPTIONS LOAD BALANCING ERROR MESSAGES AVAILABLE HOME BOX OPTIONS SPECIFICATIONS MAINTENANCE FCC INFORMATION... -
Page 3: Important Safety Instruction
Switch off the MCB in the electrical cabinet and contact your Service Representative for service immediately. Refer to the Customer Support section in the manual for information on the Service Representative in your area. HOME BOX SMART / Version: EV035... -
Page 4: Safety Informatio
S A F E T Y I N F O R M A T I O N Warning: When using electric products, basic precautions should always be followed, including the following: Read all the safety warnings and instructions before using the product. Failure to follow the warnings and the instructions may result in electric shock, fire and / or serious injury. -
Page 5: Installation Home Box
Use supplied M25 Use 4 wood screws M4,5x35mm to mount Charging Station on the wall. The Charging Station should be installed between 0,80m and 1,20m from bottom to the ground. HOME BOX SMART / Version: EV035... - Page 6 Connect in-coming power to the left terminal block. Single Phase : L1=Brown N= Blue Earth= Green/Yellow 3 Phase L1=Brown L2=Black L3=Grey N=Blue Earth=Green/Yellow Close bottom cover and carefully slide metallized cover over the Charge Station.
-
Page 7: Installation Sensorbox And Current Transformers
In order to measure the current, Current transformers are used. Clip them around the L1, L2 and L3 wires and plug the other end into the Sensorbox. The data cable coming from the Sensorbox should be connected to terminals A, B, +12V and GND. HOME BOX SMART / Version: EV035... -
Page 8: Configuring The Home Box Smart
C O N F I G U R I N G T H E H O M E B O X S M A R T The HomeBox Smart has a display, which shows the charging status and the measured current per phase. It is possible to configure all settings using the build in menu. -
Page 9: All Menu Options
Set the max current the charging cable can handle (config = fixed) 13-80A CAL: DO NOT CHANGE SETTINGS ACCESS: DO NOT CHANGE SETTINGS RCMON: DO NOT CHANGE SETTINGS (*) = Available in Smart Mode and when Load Balancing has been set to Master HOME BOX SMART / Version: EV035... -
Page 10: Load Balancing
[UITGAV L O A D B A L A N C I N G It is possible to connect up to 4 HomeBox modules to each other and let them share one mains supply. Software configuration Configure the HomeBox’s load balancing option (LOADBL) and set one module to MASTER, the others to SLAVE 1,2,3. -
Page 11: Error Messages
The HomeBox will try again in 60 seconds. ERROR HIGH TEMP The temperature inside the module has reached Celsius. Charging is stopped. Once the temperature has dropped to 55 Celsius charging is started again. HOME BOX SMART / Version: EV035... -
Page 12: Available Home Box Options
A V A I L A B L E H O M E B O X O P T I O N S Key Switch : If your Charging station is equipped with a key switch operation can be switched off. Turn the key to position “0”. To turn on put the key in posion “I”... -
Page 13: Maintenance
Reorient or relocate nearby electrical appliances or equipment during charging. Turn off nearby electrical appliances or equipment during charging. Caution: Changes or modifications to this product by other than an authorized service facility may void FCC compliance. HOME BOX SMART / Version: EV035... -
Page 14: Warranty Information
If this product is defective in materials, manufacture or design during this warranty period, Ratio Electric B.V. will, at its option, repair or replace the product. - Page 15 HOME BOX SMART / Version: EV035...
-
Page 16: Contact/Customer Support
C O N T A C T / C U S T O M E R S U P P O R T Ratio Electric B.V. Ambachtsstraat 12 NL-3861 RH Nijkerk The Netherlands Tel. +31-33-2452360 info@ratio.nl www.ratio.nl HOME BOX SMART / Version: EV035...
