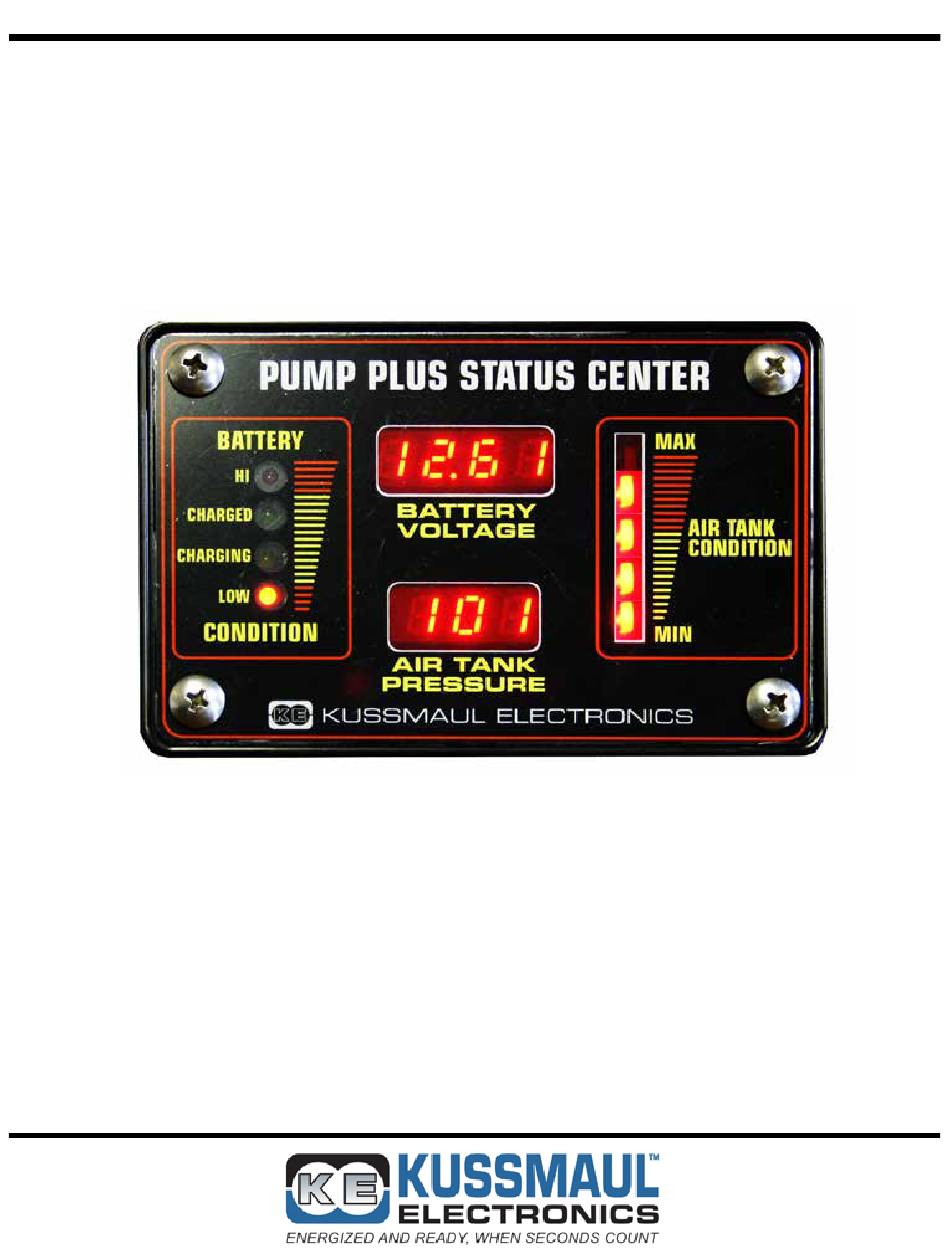

- Page 1 INSTRUCTION MANUAL AUTO PUMP STATUS CENTER VOLTAGE & PRESSURE MODEL #: 091-198-12-PP File: IM_091-198-12-PP_revD.indd Rev: D Revised By: MFG/PSS 3 YEAR WARRANTY Date: 1-30-2015 170 Cherry Avenue Ph: 800-346-0857 West Sayville, NY 11796 Fax: 631-567-5826 www.kussmaul.com sales@kussmaul.com...
- Page 2 150 PSI. OPERATION The 091-198-12-PP consists of a pressure sensor interface and indicator to measure and display PSI and battery voltage. A bar graph on the indicator provides a graphical representation of the air supply condition, while LEDs provide information on the condition of the battery.
- Page 3 INSTALLATION INSTRUCTIONS I. MOUNTING THE AUTO PUMP STATUS CENTER 1. Mount the pressure sensor interface in a suitable location protected from moisture and excessive heat. 2. The indicator is designed to be mounted on the exterior of a vehicle so that the PSI condition may be easily viewed.
- Page 4 III. FIGURE 1: AUTO PUMP STATUS CENTER AIR PRESSURE SENSOR Model 091-198 POWER OUTPUT ¼ AMP RED (20AWG) FUSE BLACK (20AWG) FROM AIR SUPPLY (5/32 TUBING) Note: recommended 20 AWG cable not supplied 091-198-12-PP: Wiring Instructions...
-
Page 5: Specifications
Hardware Pack Provided: (1) PLBPC4-01: Fitting, Straight, 1/8 NPT X 5/32 (36”) WIR1B-201-10: Nylon, M 5/32” O.D. Tubing Weight: .5 pounds OUTLINE DRAWING 5.25 3/16" DIA. 3.00 1.50 4,75 INTERFACE 0.75 INDICATOR 170 Cherry Avenue Ph: 800-346-0857 West Sayville, NY 11796 Fax: 631-567-5826 www.kussmaul.com sales@kussmaul.com... -
Page 6: Optional Accessories
OPTIONAL ACCESSORIES I. INDICATOR SEAL, MODEL #: 091-39-109 • Provides a waterproof seal for the status center display 170 Cherry Avenue Ph: 800-346-0857 West Sayville, NY 11796 Fax: 631-567-5826 www.kussmaul.com sales@kussmaul.com... - Page 7 VEHICLE OWNER _______________________________________________________ WARRANTY POLICY All products of Kussmaul Electronics are warranted to be free of defects of material or workmanship. Liability is limited to repairing or replacing at our factory, without charge, any material or defects which become apparent in normal use within 3 years from the date the equipment was shipped.
