Kason GreenGuard 1810LC Series Instruction Sheet

(4')
(5') 39-3/8 [1000]
33-7/16 850 [ ]

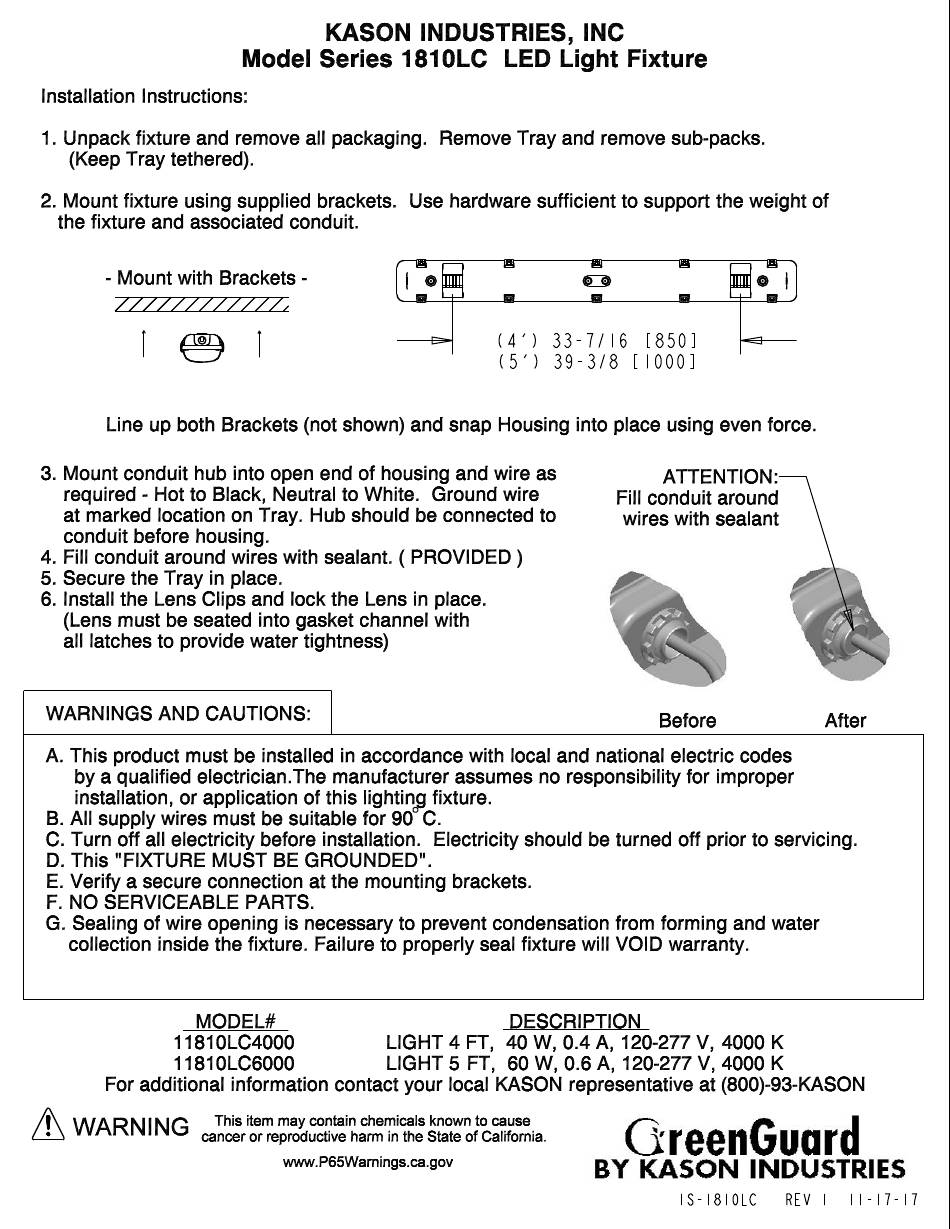

KASON INDUSTRIES, INC
Model Series 1810LC LED Light Fixture
Installation Instructions:
1. Unpack fixture and remove all packaging. Remove Tray and remove sub-packs.
(Keep Tray tethered).
2. Mount fixture using supplied brackets. Use hardware sufficient to support the weight of
the fixture and associated conduit.
3. Mount conduit hub into open end of housing and wire as
required - Hot to Black, Neutral to White. Ground wire
at marked location on Tray. Hub should be connected to
conduit before housing.
4. Fill conduit around wires with sealant. ( PROVIDED )
5. Secure the Tray in place.
6. Install the Lens Clips and lock the Lens in place.
(Lens must be seated into gasket channel with
all latches to provide water tightness)
IS-1810LC REV 1 11-17-17
MODEL# DESCRIPTION
11810LC4000 LIGHT 4 FT, 40 W, 0.4 A, 120-277 V, 4000 K
11810LC6000 LIGHT 5 FT, 60 W, 0.6 A, 120-277 V, 4000 K
For additional information contact your local KASON representative at (800)-93-KASON
This item may contain chemicals known to cause
cancer or reproductive harm in the State of California.
WARNING
www.P65Warnings.ca.gov
- Mount with Brackets -
Line up both Brackets (not shown) and snap Housing into place using even force.
WARNINGS AND CAUTIONS:
A. This product must be installed in accordance with local and national electric codes
by a qualified electrician.The manufacturer assumes no responsibility for improper
installation, or application of this lighting fixture.
B. All supply wires must be suitable for 90 $ C.
C. Turn off all electricity before installation. Electricity should be turned off prior to servicing.
D. This "FIXTURE MUST BE GROUNDED".
E. Verify a secure connection at the mounting brackets.
F. NO SERVICEABLE PARTS.
G. Sealing of wire opening is necessary to prevent condensation from forming and water
collection inside the fixture. Failure to properly seal fixture will VOID warranty.
Before After
ATTENTION:
Fill conduit around
wires with sealant
