Summary of Contents for Genio 050180

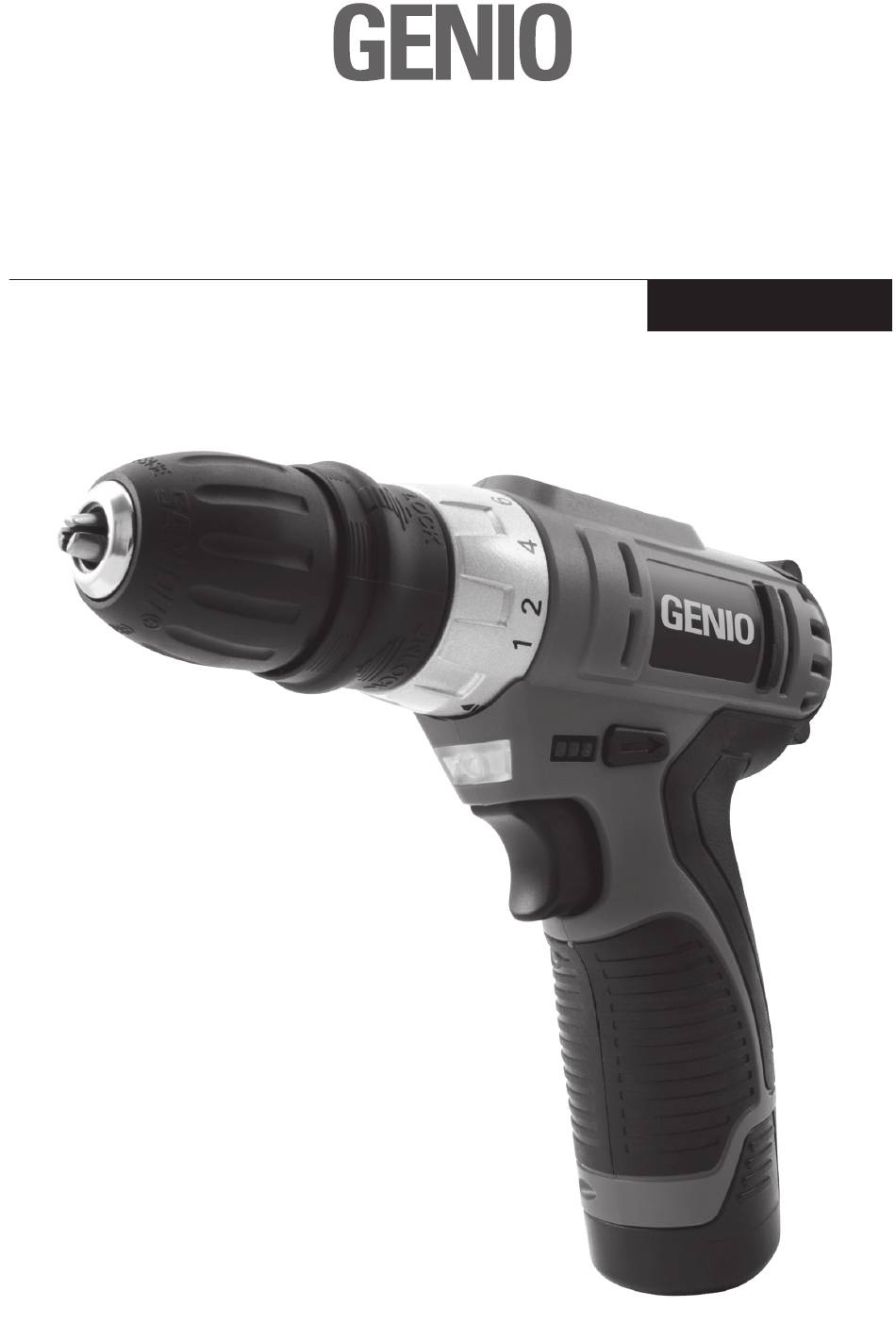

- Page 1 CORDLESS DRILL User Manual EN...
-
Page 3: Description Of The Tool
1 Description of the tool 1 Selection Torque 2 Inverter Switch 3 ON/OFF 4 Battery 5 Pushlock Button 6 Selection for 1st or 2nd 7 Quick Change Mandrel 8 Battery Charger 9 LED 10 Integrated Magnetic holder... -
Page 4: Intended Use
2 Intended use The tool is designed for screwing and unscrewing as well as for drilling in wood, metal, ceramic and plastic materials. This tool should not be used for purposes other than those described above. 3 Before use Before turning on the cordless drill, read the following notes: 1 Charge the battery with the charger provided with the tool. - Page 5 4.3. Drilling (B4) To drill, put the adjustment wheel for the torque in the last grade “drill”, in grade “drill” the safety clutch is deactivated. When drilling, the maximum torque is available. 4.4. Switch the direction of rotation (B5) The slide switch over the on/off switch allows to choose the rotation direction of the drill / driver with battery and prevent accidental starting.
-
Page 6: Technical Specifications
5 Technical specifications Power 12V Li-ion d.c./1,3Ah Li-ion Gear 1 0 to 400 U / min Gear 2 0 to 1400 U / min Level rotation coupling 18 + 1 Max. torque (soft / hard) 23Nm Rotate to the left / right Coupling capacity mandrel 1-10mm Charge voltage, battery... -
Page 7: Cleaning And Maintenance
6 Cleaning and maintenance Remove from the wall outlet before all cleaning works. 6.1. Cleaning > Keep protection devices, air vents and the motor housing as clean (dust free) as possible. Clean the appliance with a clean cloth or clean with compressed air at low pressure. >... - Page 8 9.2. Electrical safety a) It is necessary that the power tool plugs are adapted to the base. Never modify the plug in any way. Do not use adapters with earthed tools. Unmodified plugs and adapted bases reduce the risk of electric shock. b) Avoid body contact with earthed earth as pipes, radiators, stoves and refrigerators.
- Page 9 g) To use the machine, accessories and blades, etc. according to these instructions, taking into account the working conditions and the work to be done. The use of the machine for operations other than those provided can lead to dangerous situations. 9.5.
-
Page 10: Explanation Of Symbols
11 Explanation of symbols Respect all symbols in this manual and on your tool. Remember these symbols and these signs, you can work better and more safely with the tool if you know to correctly interpret the signs and symbols. Attention Read the user manual before using Wear protective eyewear... - Page 11 Annotations...
- Page 12 BOSSAUTO INNOVA, S.A. Polígono Industrial Valldoriolf c/ Thomas Edison, 16 08430 La Roca del Vallés. Barcelona. España tel.: +34 938 604 923 / +34 902 100 667 fax: +34 938 712 336 / +34 902 363 047 info@bossauto.com www.bossauto.com...
