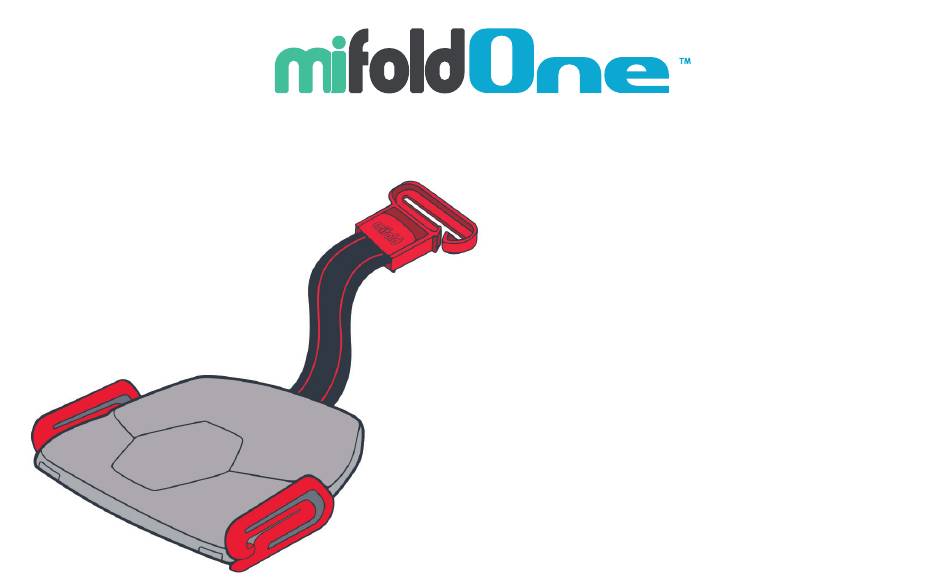

the non-folding Grab-and-Go Booster
Model Number: MF06-US
For Children:
at least 4 years of age
40 to 100 lbs. (18 to 45 kg)
40 to 57 inches (102 cm to 145 cm)
• This child restraint conforms to all
applicable Federal Motor Vehicle Safety
Standards for use in motor vehicles.
• This child restraint is NOT certified for use
in aircraft.
™
Advertisement
Table of Contents
Related Manuals for mifold One Grab-and-Go Booster MF06-US
Summary of Contents for mifold One Grab-and-Go Booster MF06-US
- Page 1 the non-folding Grab-and-Go Booster ™ Model Number: MF06-US For Children: at least 4 years of age 40 to 100 lbs. (18 to 45 kg) 40 to 57 inches (102 cm to 145 cm) • This child restraint conforms to all applicable Federal Motor Vehicle Safety Standards for use in motor vehicles.
-
Page 2: Table Of Contents
Weight and Height Use Recommendations Weight and Height Use Recommendations • Child MUST be at least ..1 4 years old. mifold One – Booster Seat Parts ......2 Warnings • Child’s weight MUST be ............3-4 between 40 and 100 lbs. Proper Use Checklist ...........5... -
Page 3: Mifold One - Booster Seat Parts
One – Booster Seat Parts Shoulder Belt Guide Shoulder Belt Guide Adjustment Clip Shoulder Belt Shoulder Belt Slot Guide Strap Instruction Manual Storage Seat Pad Lap Belt Guide Lap Belt Guide Lap Belt Slot Lap Belt Slot Lap Belt Guide... -
Page 4: Warnings
WARNING - DEATH or SERIOUS INJURY can occur Failure to follow these instructions and car • Use only the vehicle’s lap and shoulder belt seat labels can result in child striking the system when restraining a child in this vehicle’s interior during a sudden stop or Booster Seat. - Page 5 WARNING - DEATH or SERIOUS INJURY can occur • NEVER use Booster Seat with only a vehicle • DO NOT use Booster Seat if it has been in a lap belt across front of child. Use of lap belt crash or is damaged, missing parts or the only can result in serious injury or death.
-
Page 6: Proper Use Checklist
Proper Use Checklist √ Booster Seat and child’s back MUST make √ Child MUST be sitting up, with back against contact with vehicle seat back. vehicle seat back not slouching down under √ Vehicle Lap and Shoulder Vehicle Lap Belt. Belt MUST be properly positioned on child. -
Page 7: Selecting A Vehicle Seating Location
Selecting a Vehicle Seating Location • Refer to vehicle owner’s manual for information WARNING on securing children and vehicle seat belt use. DEATH or SERIOUS INJURY can occur • NOT all vehicle seat belts can be used with the Booster Seat. Read vehicle owner’s manual on Booster Seat use and the “Vehicle Seat Belt •... - Page 8 Selecting a Vehicle Seating Location Vehicle Seating Locations NOT To Use: 1. LATCH Anchorage System 2. Side Facing and Rear Facing Seats: (Lower Anchorage and Tether for CHildren): • DO NOT use on side or rear-facing • Do not use the vehicle seats.
-
Page 9: Vehicle Seat Belt Systems
Select A Vehicle Vehicle Seat Belt Systems Seating Location • This Booster Seat MUST be used with a National Highway Traffic Safety Administration Vehicle Lap and Shoulder Belt system. (NHTSA) alerts vehicle owners that according to DO NOT use the Vehicle Belt systems in accident statistics, children age 12 and under are this section. -
Page 10: Inflatable Seat Belt Systems
Belts Mounted To Door C. Inflatable Seat Belt Systems: Do not use the mifold One Booster Seat • on a vehicle seating location with an Motorized Shoulder Belt inflatable seat belt. -
Page 11: Note About Switchable Retractors
(ALR). The ALR mode is vehicle buckle. not designed for use with booster car seats 3. Lift mifold One up on the buckle side and and mifold One is not recommended for use with remove lap belt. -
Page 12: Preparing For Use
Preparing for Use 1. Adjust the width of WARNING the Lap Belt Guides. DEATH or SERIOUS INJURY can occur The Lap Belt Guides have four adjustment positions, one for • Use only with the Vehicle’s Lap and storage and transport Shoulder Belt. - Page 13 Preparing for Use 2. The Lap Belt Guides should be adjusted into b. Adjust to fit child. 1. Place Booster Seat the position nearest to, but not touching the sides of the child’s thighs. with Lap Belt Guides extended on vehicle To adjust width of Lap Belt Guides: seat.
-
Page 14: Securing Child On Booster Seat
Securing Child on Booster Seat 1. Place Booster Seat on WARNING vehicle seat in a seating location that DEATH or SERIOUS INJURY can occur has a Vehicle Lap and Shoulder Belt. • DO NOT use Booster Seat in a seating position 2. - Page 15 5. Secure child with the Vehicle • DO NOT place shoulder Lap and Shoulder Belt. belt through EITHER Lap Belt Guide. • DO NOT switch lap and shoulder belt into automatic locking (ALR) mode when installing any booster car seat including mifold One.
- Page 16 Securing Child on Booster Seat b. Pull up on Vehicle Shoulder Belt to remove To adjust position of the slack from lap portion of Vehicle Seat Belt Shoulder Belt Guide: and snugly adjust Lap Belt around child. – Pull out on Shoulder Check that Vehicle Lap Belt is low on the hips Belt Guide Adjustment and contacting thighs.
- Page 17 Securing Child on Booster Seat d. Slide the Shoulder Belt WARNING Guide Adjustment Clip onto the Vehicle Shoulder Belt DEATH or SERIOUS INJURY can occur as shown. The belt must be completely within the Shoulder Belt Guide slot . • Avoid potential abdominal injury from submarining under Vehicle Lap Belt.
-
Page 18: Removing Child From Booster Seat
2. Have your child lean away from the vehicle of child. – Remove child from Booster Seat. buckle. 3. Lift mifold One up on the buckle side and Note: Should the lap and shoulder belt remove lap belt. inadvertently be switched into the automatic... -
Page 19: Removing And Storage Of Booster Seat
Removing and Storage of Booster Seat The mifold One Booster Seat is a very compact size for For transporting Booster Seat when not occupied: easy storage when not in use. When not occupied, it is recommended to store the mifold One in a secure location such as the glove To remove Booster Seat: box, trunk, or storage area. -
Page 20: Re-Use After A Crash
Re-Use After a Crash WARNING The mifold One Booster Seat is a unique design that absorbs some of the forces in a vehicle crash when DEATH or SERIOUS INJURY can occur occupied by a child. These crash forces can deform parts of the Booster Seat and result in damage that may not be detectable by a visual inspection. -
Page 21: Additional Information
• This product does not have any replaceable Restraint is Not parts. Certified for Use in • For any issues or further information, contact Aircraft. Aircraft seats mifold One Customer Service at do not provide a lap and 1-800-437-6540 or by email at shoulder belt system. support@mifold.com... - Page 22 Additional Information Warranty: Warranty (continued): At Carfoldio, we make innovative, high quality This limited warranty is exclusive and in lieu of products for children. We warrant this product any other warranty, written or oral, including to be free from defects in material and work but not limited to any express warranty of manship existing at the time of manufacture merchantability or fitness for a particular...
- Page 23 Additional Information Warranty (continued): Warranty (continued): The customer’s exclusive remedy for breach of This limited warranty gives you specific legal this limited warranty or of any implied warranty rights, and you may have other rights that vary or of any other obligation arising by operation from state to state.
- Page 24 Additional Information Registration and Recall: For Recall Information: • Call the U.S. Government’s Vehicle Safety • Child restraints could be recalled for safety Hotline at 1-888-327-4236 reasons. You must register this restraint to be reached in a recall. Fill out the registration card (TTY: 1-800-424-9153) attached to the Booster Seat and mail today or •...
- Page 25 Memo...
- Page 26 KEEP INSTRUCTIONS FOR FUTURE USE. Store instruction manual in storage compartment on bottom of Booster Seat. Instruction Manual Carfoldio , mifold ® Instruction Manual mifold One , the non- Storage Compartment folding Grab-and-Go Booster , are trademarks All pictures are illustrations.
