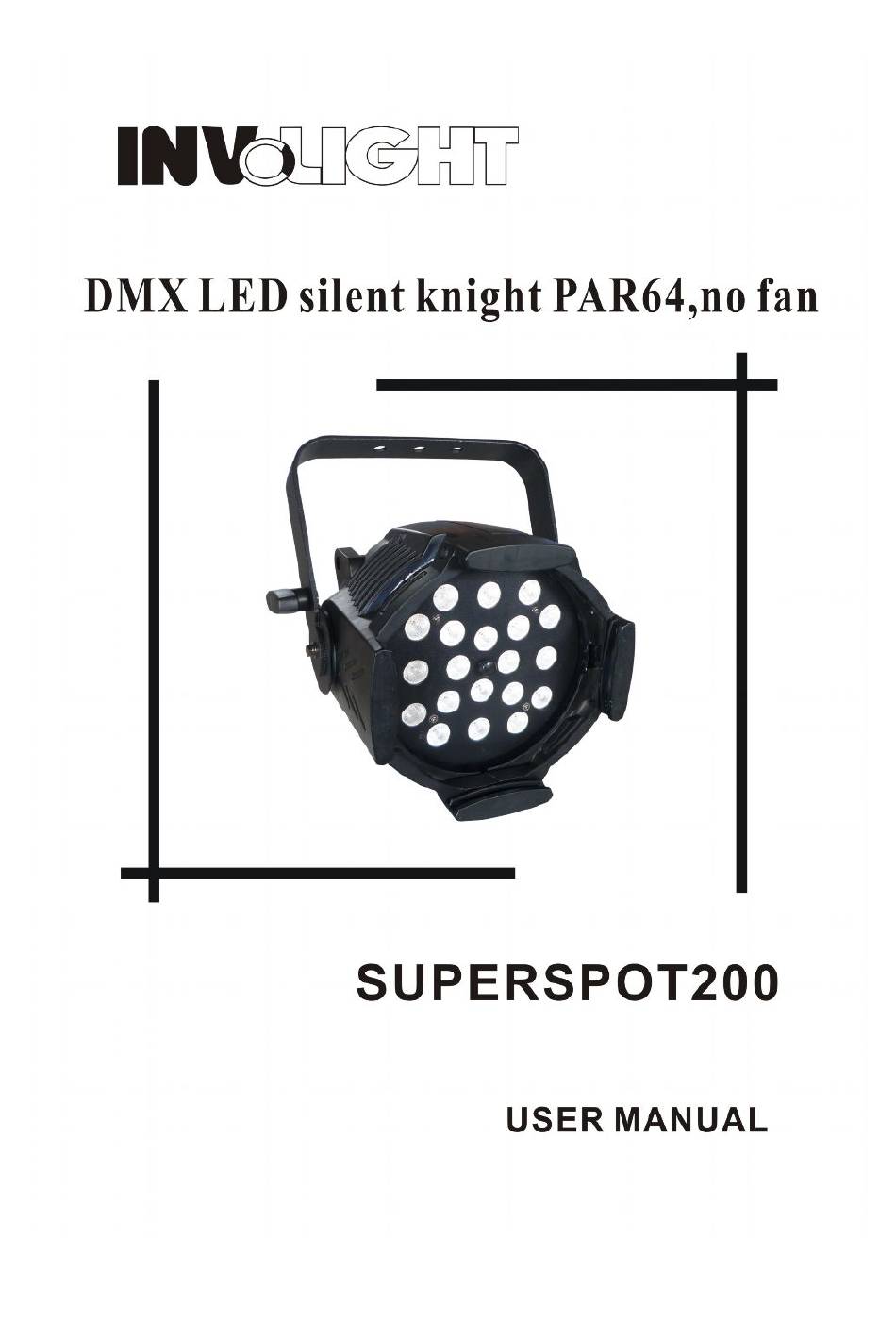

Summary of Contents for involight SUPERSPOT200
- Page 2 DMX LED silent knight PAR64,no fan Manual Size:225*300*310mm Weight:4.7kg Power input:AC 120V/240,47HZ/63HZ Wattage:75W LEDS: 20*Tri-3W Beam angle: 30degrees Housing: die-cast, black(white optional) Built-in programs, sound active, M/S mode, DMX mode, static colors LCD display for easier operation 3Pin and 5Pin XLR sockets available Programs can be updated by the socket No fan cooling, no noise at all Suitable for studiums, conferences...
- Page 3 5. Red color mode Press MODE ,enter red color mode “COLORSET XXX% RED” 。 Press UP or DOWN ,red color diming value as 000%-100%。 6. Green dimming mode Press MODE ,enter the red color mode “COLORSET XXX% GRE” 。 Press UO or DOWN ,red color dimming value as 000%-100%。 7.
- Page 4 CHANNEL VALUE FUNCTION 0-255 0-255 GREEN 0-255 BLUE DMX mode 4：5ch CHANNEL VALUE FUNCTION 0-255 0-255 GREEN 0-255 BLUE 0-255 0-15 = N0 FUNCTION 16-255 = STROBE 0-255 MASTER DIMMER DMX mode5：6ch CHANNEL VALUE FUNCTION 0-255 0-255 GREEN 0-255 BLUE 0-255 0-15 = N0 FUNCTION 16-255 = STROBE...
- Page 5 0-31 Inactiv 32-63 AutomaticDimming(upwards) 64-95 AutomaticDimming(downwards) 96-127 AutomaticDimming 3 color (upwards and downwards) 128-159 AutomaticDimming 7 color (upwards and downwards) 160-191 3 color chase 192-223 7 color chase 224-255 Sound mode 0-255 MASTER DIMMER...
